Kohler 11RMY Service Manual

TP-5867 11/02 61Section 7 Generator Reconnection
43 21
Stator Leads
LO
GRD
LO (Neutral)
Ground
Load
Side
Line
Side
Factory two-pole
circuit breaker
Field installed
jumper lead
L1
L2
TP-5867
L0-L1
L0-L2
60 Hz
120 volt
120 volt
50 Hz
110 volt
110 volt

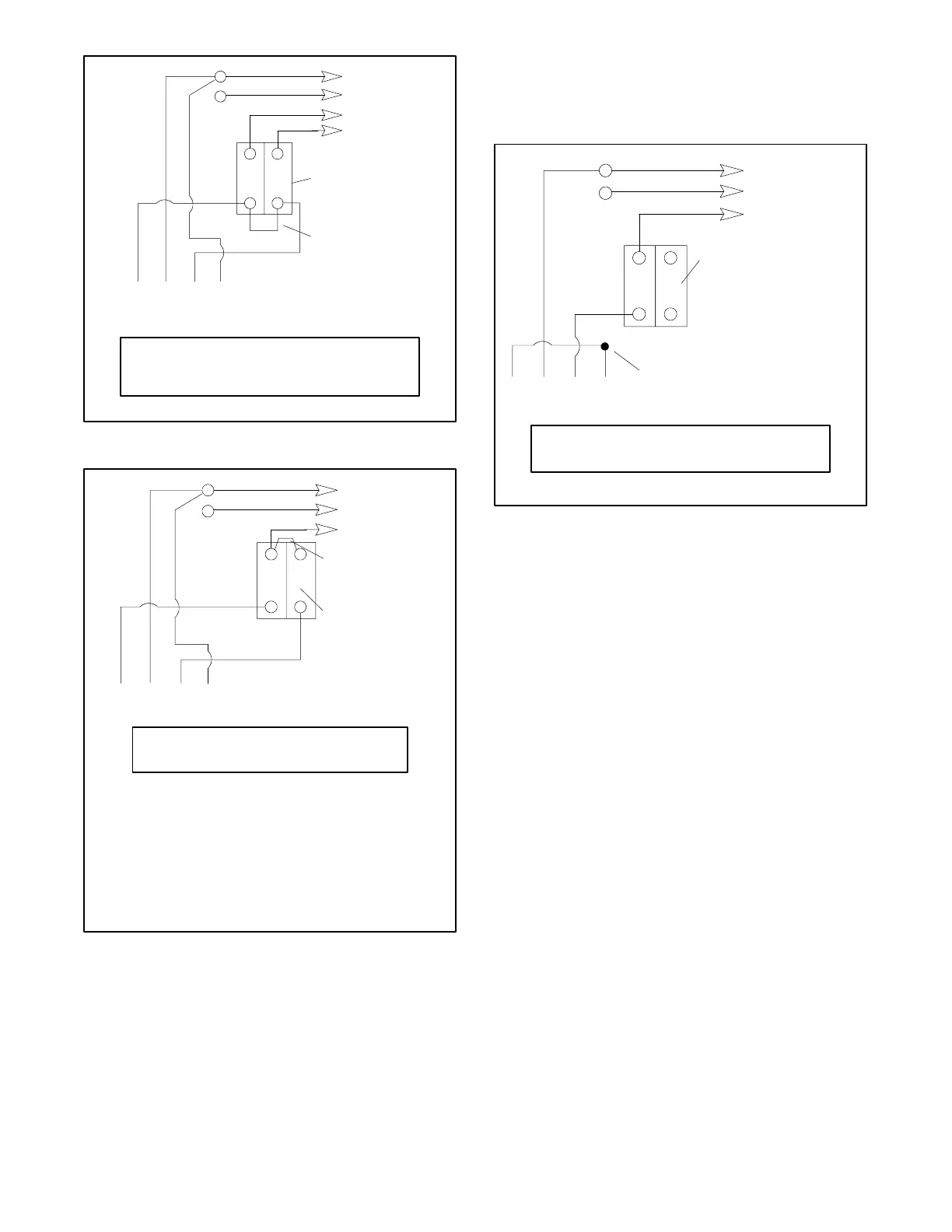

Figure 7-3 110 and 120 Volt, 3-Wire Configurations
Note: The existing ammeter lower scale indicates
half of the actual L1 current. DO NOT PUT
THE CT ON L1. Either label the ammeter
with a note indicating lower scale times two,
or purchase a new ammeter scaled twice the
existing ammeter and install the new
ammeter.
4321
Stator Leads
LO
GRD
LO (Neutral)
Ground
Load
Side
Line
Side
Two-pole
circuit breaker
L1
TP-5867
L0-L1
60 Hz
100--120 volt
50 Hz
110--120 volt
Field installed
jumper lead
Figure 7-4 110 and 120 Volt, 2-Wire Configurations
220 and 240 Volt Configuration
A jumper lead is not used. After connection adjust the
voltage regulator to obtain the desired voltage.
4321
Stator Leads
LO
GRD
L1
LO (Neutral)
Line
Side
Factory two-pole
circuit breaker
Ground
Load
Side
Tape to insulate
from ground
TP-5867
L0-L1
60 Hz
240 volt
50 Hz
220 volt
Figure 7-5 220 and 240 Volt, 2-Wire Configurations
