Hazardous voltage.
Will cause severe injury or death.
This equipment must be installed and serviced by qualified electrical personnel.
Grounding electrical equipment. Hazardous voltage will cause severe injury or death. Electrocution is possible whenever
electricity is present. Ensure you comply with all applicable codes and standards. Electrically ground the generator set and
related equipment and electrical circuits. Turn off the main circuit breakers of all power sources before servicing the equipment.
Never contact electrical leads or appliances when standing in water or on wet ground because these conditions increase the
risk of electrocution.
Have an authorized distributor/dealer or a licensed electrician make the following electrical connections. The electrical installation
must comply with the National Electrical Code
®
(NEC) class 1 wire designation and all applicable local codes. Canadian
installations must comply with the Canadian Electrical Code (CEC) and applicable local codes.
1.8.1 Grounding
The 6VSG has an isolated output, which should be referenced to ground. This can be accomplished by connecting either the
positive or the negative DC output lead to ground. A floating voltage is not recommended in this application.
1.8.2 Electrical Lead Entry
Drill or punch holes in the enclosure for the electrical conduit in the locations shown in Figure 9.

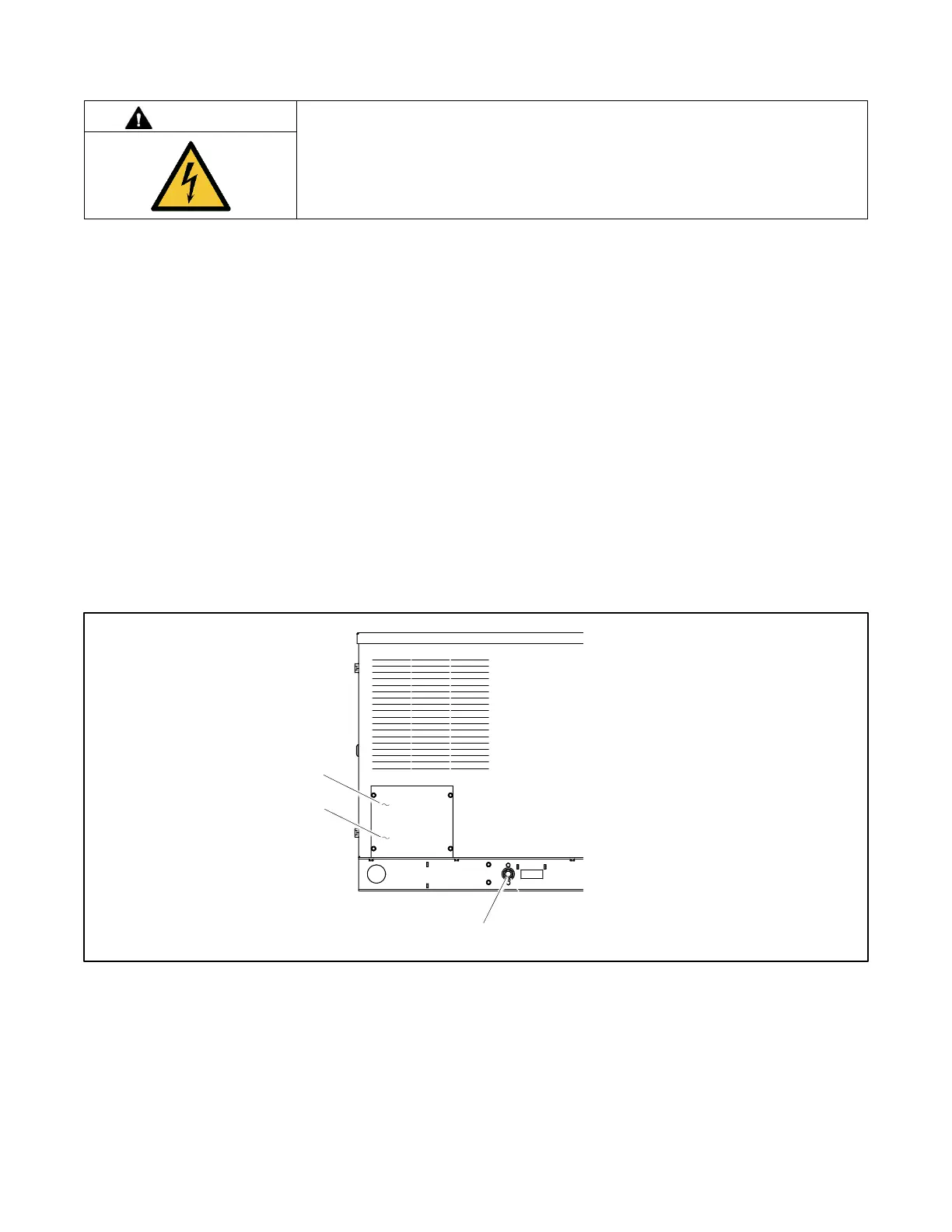

Figure 9 Electrical Lead Entry
