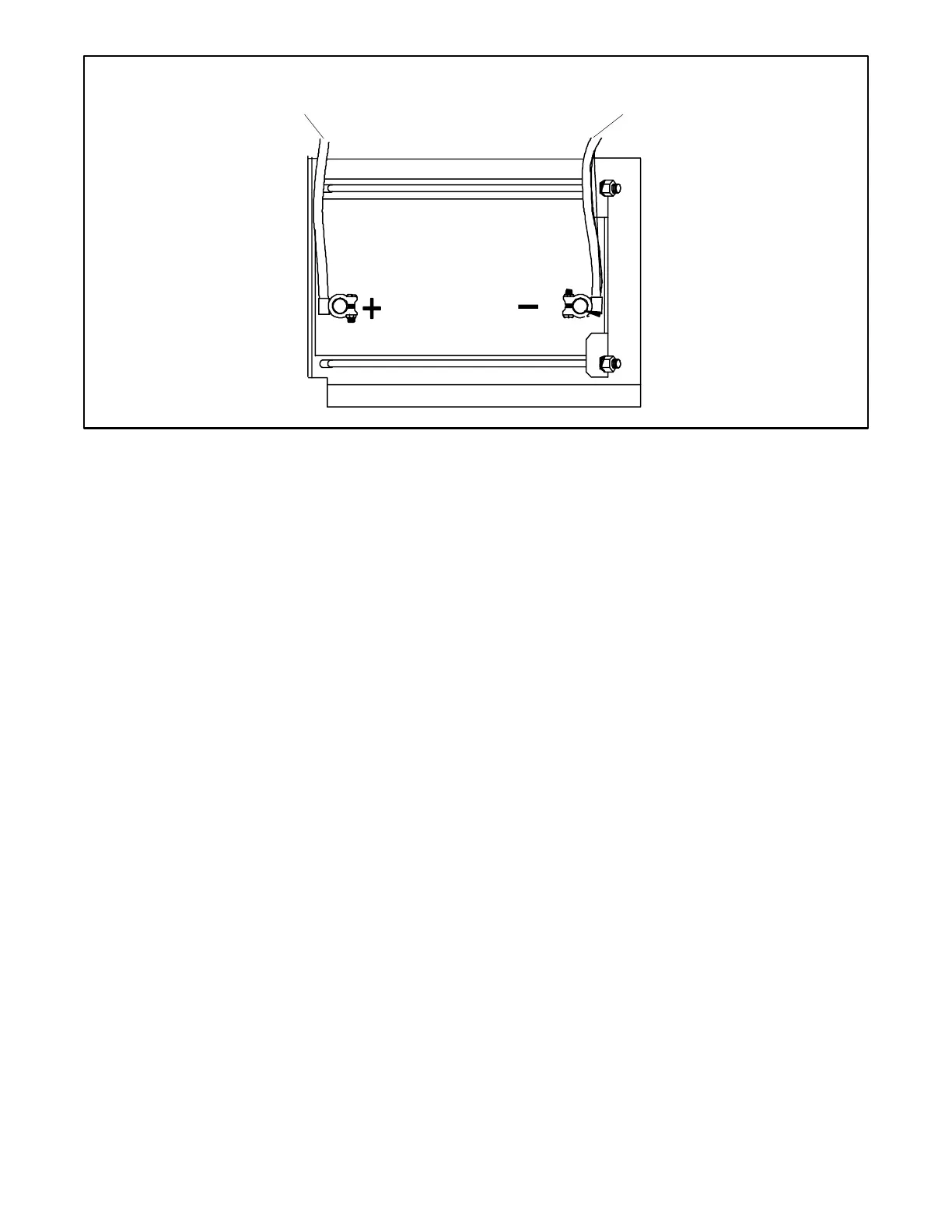

Figure 19 Typical Battery Connection
1.9.1 Engine Starting Battery Installation Procedure
Use the following procedure to install and connect the generator set engine starting battery.
1. Ensure that the starting battery is fully charged before placing the battery in service.
2. Clean the battery posts and/or adapters if necessary.
3. Install the battery post adapters, if needed.
4. Place the battery inside the housing.
5. Connect the positive (+) lead to the engine starting battery.
6. Connect the negative (–) lead to the engine starting battery.
Refer to the generator set operation manual and the battery manufacturer’s instructions for battery maintenance instructions.
When power is applied to the VSC controller (that is, when the battery is connected), you will be prompted to set the date and
time, and then to set the exerciser. See the generator set operation manual for instructions.
If the battery is disconnected for service or replacement, the exercise settings on the VSC controller are lost. Set the exerciser
after installing and connecting the battery.
