TP-5594 5/95 Operation 2-5
Circuit Protection
Refer to Figure 2-6 and the following descriptions to
identify controller components.
1. 10-Amp Fuel Solenoid Fuse. A replaceable
10-amp fuse protects the fuel solenoid. (On
three-phase models the inline fuse is mounted
inside the controller.) If this fuse is blown, the
generator will shut down. If the fuse is replaced
thenblowsagain,havethegeneratorsetexamined
by an authorized Kohler service dealer/distributor.
2. 10-Amp Controller-Input Fuse (Single Phase)
or Circuit Breaker (Three Phase). The controller
circuitry is protected bya replaceable 10-ampfuse
orcircuitbreaker. Ifthegeneratorwillnotcrankand
the battery and/or connections appear okay, the
controller fuse/breaker may be blown or tripped.
Contact an authorized Kohler service
dealer/distributor if fuse/breaker blows/trips
repeatedly.
3. 10-Amp PBIIIE Voltage Regulator Fuse
(Single-Phase Models Only). A replaceable
10-amp fuse protects the voltage regulator
circuitry. If thisfuse isblown, thegenerator setwill
shut down. If this fuse is replaced then blows
again, have the generator set examined by an
authorized Kohler service dealer/distributor.
4. Optional AC Circuit Breaker(s). Circuit breaker
trips when a fault is detected in the AC output
circuit. See Section 4—Troubleshooting to
determine cause of fault. After fault is corrected,
reset AC circuit breaker by placing in ON position.
1-933
Single-Phase
Three-Phase
1 2
1 2
4
3
4

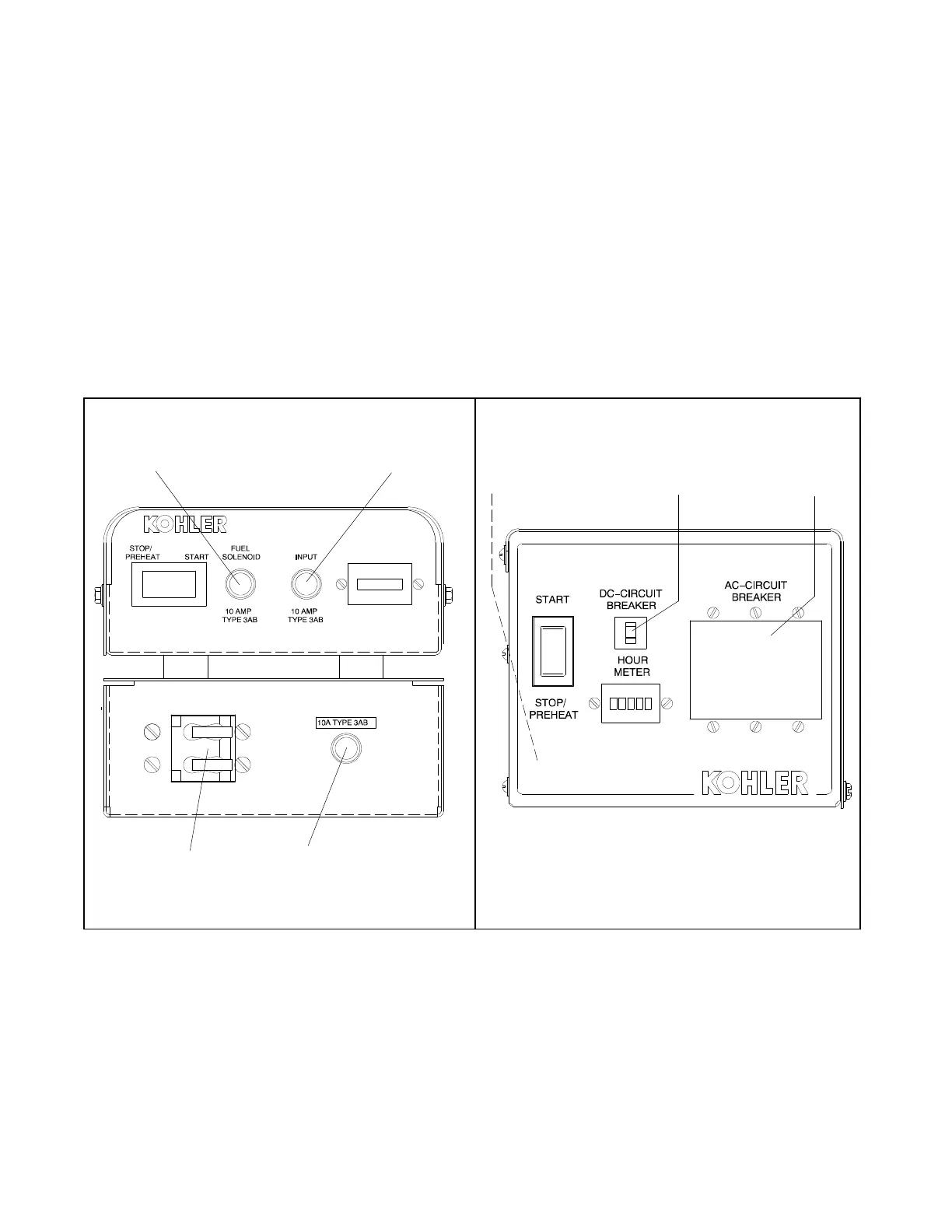

Figure 2-6. Circuit Protection
