TP-5594 5/956-24 Installation
WARNING
Hazardous voltage.
Backfeed to utility system can cause severe
injury, death, or property damage.
Do not connect to any building electrical system
without connecting through an approved device
and after building main switch is open.
Hazardous backfeed voltage can cause severe
injury or death. Do not connect generator set to any
building/campground electrical system without
connecting through an approved device and after
building/campground main switch is open. Backfeed
connections can cause serious injury or death to utility
personnel working to repair a power outage and/or
personnel in the vicinity. Unauthorized connection to
utility electrical system may be unlawful in some states
and/or localities. A transfer switch must be installed to
prevent interconnection of generator set power and
other sources of power.
NOTE
For standby service connect output of generator to
suitably rated transfer switch in accordance with
Canadian Electrical Code, Part 1.
Remote Switch Connection
(Single-Phase Models Only)
Controllers include an accessory plug (P3) for easy
connection of the remoteswitch to the start/stop switch,
preheat switch, oil pressure gauge (if equipped), water
temperature gauge (if equipped) and generator ON
lamp wiring harness (available separately). One endof
the15 in. (38.1cm)P3wiringharnessplugsdirectlyinto
the controller. The pigtail leads on the remaining end of
the harness are connected to the appropriate remote
panel terminals via customer-supplied wiring. Be sure
to connect the remote operating controls to the correct
P3wireharness lead. SeeFigure 6-23 and Figure 6-24
for identification of P3 harness leads.
1-933
1

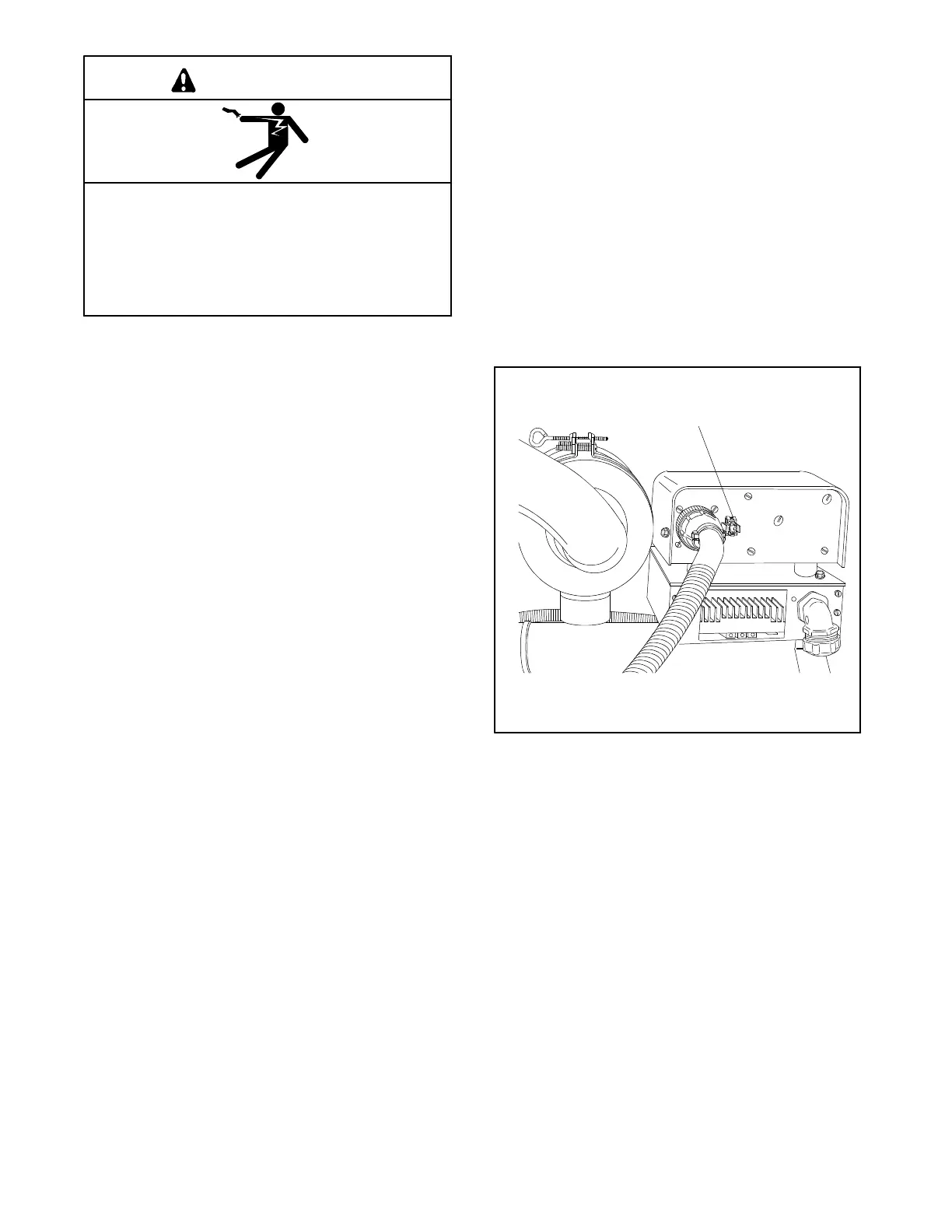

1. Remote Connection
Figure 6-23. Controller Remote Connection
