Reassembly
126 62 690 05 Rev. EKohlerEngines.com

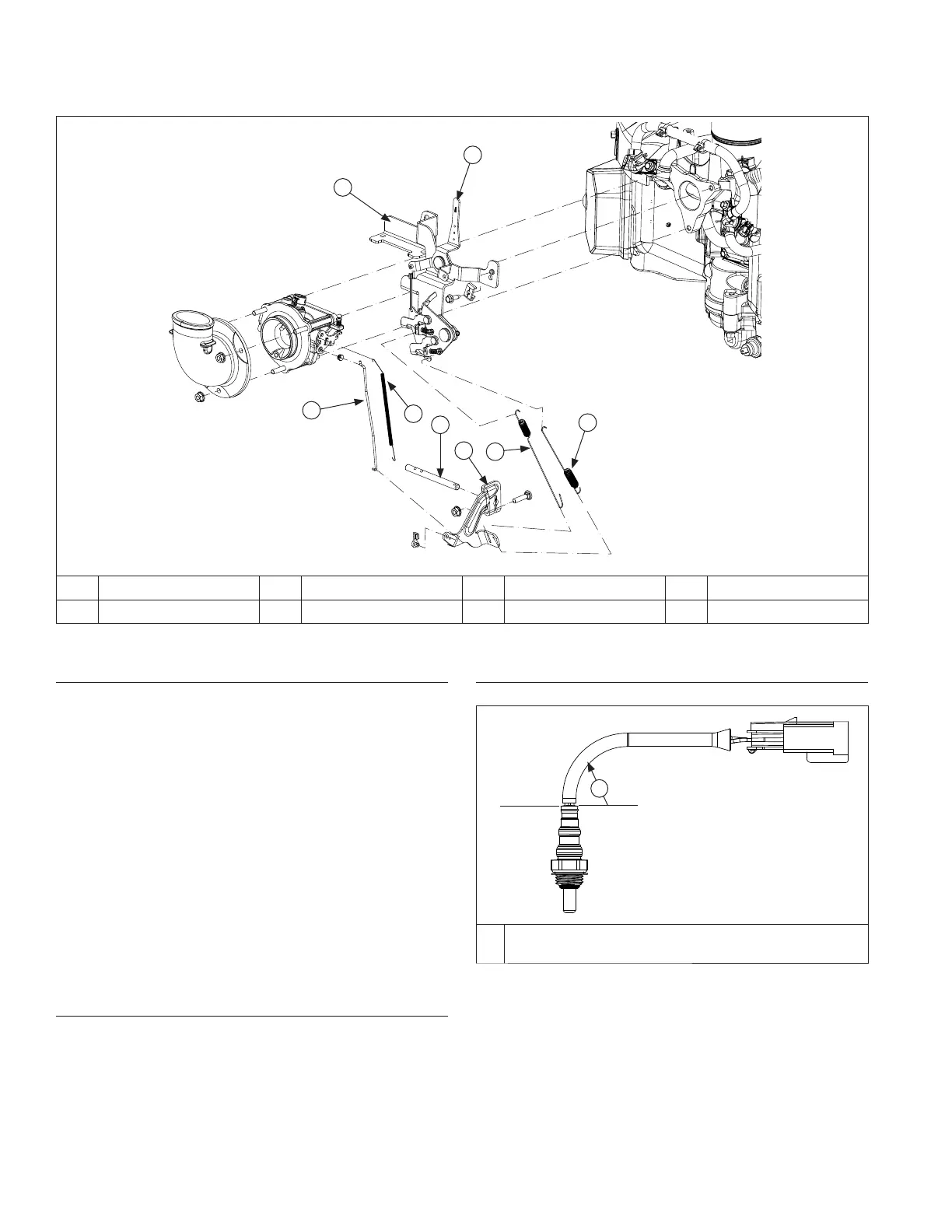

Mechanical Governor Control Bracket Components
A
B
G
F
C
D
E
H
A Throttle Lever B Control Bracket C Throttle Linkage D Linkage Spring
E Cross Shaft F Governor Lever G Governor Spring H Idle Spring
Install Governor Lever (Mechanical Governor Only)
Install governor lever onto governor shaft and connect
throttle linkage with black clip.
Adjusting Mechanical Governor
1. Position governor lever so clamping area is inboard
but completely on knurled area of governor cross
shaft.
2. Move governor lever toward throttle body as far as it
will go (wide-open throttle) and hold in position.
3. Insert a long thin rod or tool into hole on cross shaft
and rotate shaft clockwise (viewed from end) as far
as it will turn, then torque nut to 7.1 N·m (63 in. lb.).
4. Connect governor spring (with long looped end), to
inner hole on governor lever and control bracket.
Connect governed idle spring to outer governor lever
hole and control bracket.
Make sure springs do not contact valley baffl e.
Install Oil Sentry
™
(if equipped)
1. Apply pipe sealant with Tefl on
®
(Loctite
®
PST
®
592™
Thread Sealant or equivalent) to Oil Sentry
™
threads
switch and install it into 1/8 in. port in oil pan. Torque
switch to 10.7 N·m (95 in. lb.).
2. Connect green wire lead to Oil Sentry
™
terminal.
Install Muffl er
Oxygen Sensor Wire Detail
A
A
Keep a minimum of 25 mm (1.0 in.) radius at
grommet.
NOTE: Always route harness away from hot exhaust
and away from moving parts.
1. Install new exhaust gaskets onto exhaust studs.
2. Install port liners (if equipped). Attach muffl er and
secure with nuts onto exhaust studs. Torque nuts to
24.4 N·m (216 in. lb.).
3. Install any attaching hardware and brackets. Torque
M6 screws to 9.9 N·m (88 in. lb.), and M8 screws to
24.4 N·m (216 in. lb.).
