Disassembly/Inspection and Service
9562 690 05 Rev. E KohlerEngines.com
Remove Oil Filter Housing

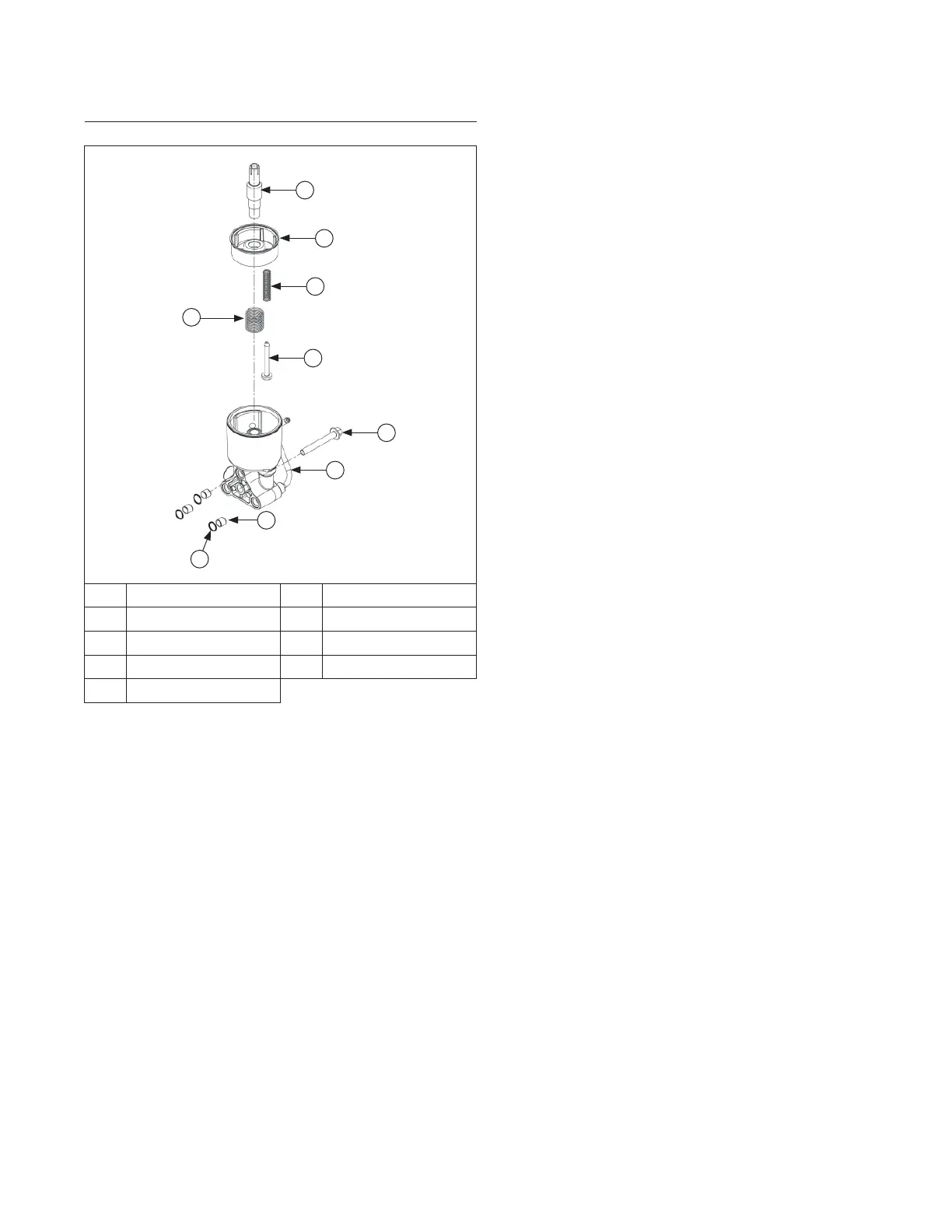

Oil Filter Housing Components
A
B
C
D
E
G
H
I
F
A Oil Filter Nipple B Cup
C Valve Spring D Cup Spring
E Oil Filter Valve F Screw
G Oil Filter Housing H Pin
I O-Ring
NOTE: Further disassembly of oil fi lter housing
assembly is not required unless being serviced
individually. Follow substeps a, b, and c.
1. Remove screw securing oil fi lter housing and
individual O-rings to crankcase. Carefully separate
parts.
Perform following only if oil fi lter housing assembly
requires individual servicing.
a. Remove nipple from cup and oil fi lter housing.
b. Remove oil fi lter cup and spring from housing.
c. Remove rubber valve and spring from cup.
