Air Cleaner/Intake

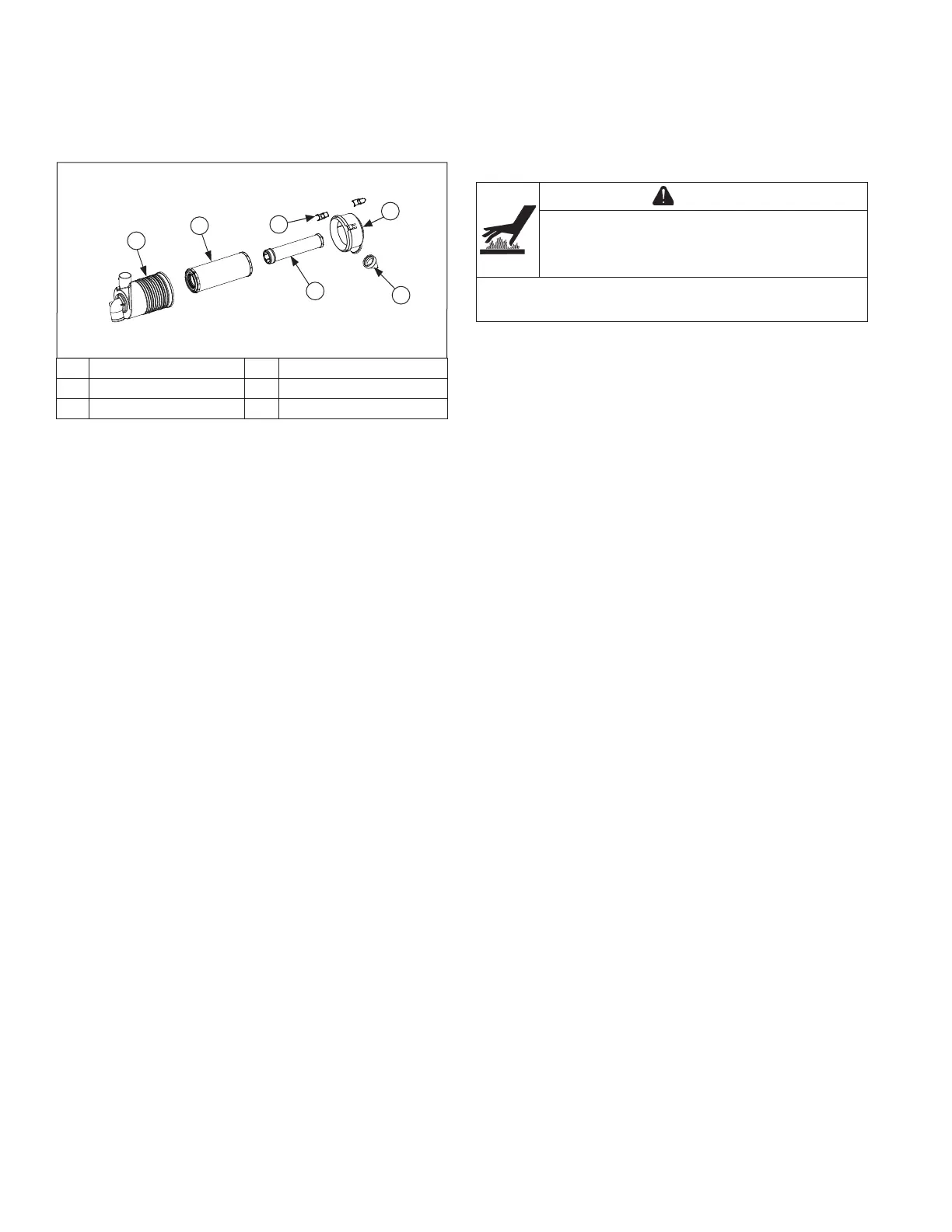

AIR CLEANER
These systems are CARB/EPA certifi ed and components
should not be altered or modifi ed in any way.
A Air Cleaner Housing B Inner Element
C Retaining Clip D Element
E End Cap F Dust Ejector Valve
A
D
C
B
F
E
BREATHER TUBE
Ensure both ends of breather tube are properly
connected.
AIR COOLING
WARNING
Hot Parts can cause severe burns.
Do not touch engine while operating or just
after stopping.
Never operate engine with heat shields or guards
removed.
NOTE: Operating engine with a restricted air intake
screen or radiator, damaged/ broken fan
assembly, or missing fan shroud will cause
engine damage due to over heating.
Proper cooling is essential. To prevent over heating,
clean screens, cooling fi ns, and other external surfaces
of engine. Avoid spraying water at wiring harness or any
electrical components. See Maintenance Schedule.
NOTE: Operating engine with loose or damaged air
cleaner components could cause premature
wear and failure. Replace all bent or damaged
components.
NOTE: Paper element cannot be blown out with
compressed air.
1. Unhook retaining clips and remove end cap(s).
2. Check and clean inlet screen (if equipped).
3. Pull air cleaner element out of housing and replace.
Check condition of inner element; replace when dirty.
4. Check all parts for wear, cracks, or damage, and that
ejector area is clean.
5. Install new element(s).
6. Reinstall end cap(s) with dust ejector valve/screen
down; secure with retaining clips.
