Kohler Curtis AC F2-C User Manual

2 — INSTALLATION AND WIRING
pg. 17
Return to TOC Curtis AC F2-A, F4-A, F6-A Motor Controllers – FOS 4.5 – April 2022
AC F4-A/F6-A CONTROLLER
Basic Wiring Diagram - Potentiometer/Switches
NO
NC
Emergency
Reverse
Lower
Interlock
User Input
E Stop
Pole A
U
V
W
GND
Input 2 / Motor Temp
Motor Temp
Sensor
Fuse
Load-Hold Valve
Ext. Load 2
Proportional Valve
Optional
Peripherals
Safety Disabled
and
Reverse Polarity
Protected
Loads
Input 8
Input 9
Input 7
Input 19 / Pot 19 Supply
Input 13 / Enc 2B
Input 10 (PWM)
Input 11 / Enc 1C
Input 5
Input 12 / Enc 2A
KSI
Input 31 / +5V
Input 3 / Enc 1A
Input 4 / Enc 1B
GND
Coil Supply
Driver 4 / Input 24
Driver 3 / Input 23
Driver 5 / Input 25
Driver 6 / Input 26
Driver 7 / Input 27
Driver 1 / Input 21
Driver 2 / Input 22
Driver 8
Analog Output
AC
MOTOR
~
ROTOR
POSITION
SENSOR
5V
A/Sin
B/Cos
GND
7
Lift
Reverse
Forward
7
Keyswitch
Ext. Load 1
Main Coil
Ext. Load 3
EM Brake
1
26
31
32
8
10
22
9
13
Travel Limit
4
3
2
5
6
19
20
27
33
24
14
30
11
12
External
Power
Supply
Input 31 / +5V Ext Supply
Input 14 / +12V Ext Supply
26
25
Input 18 / Pot 18 Wiper
GND
Brake
Throttle
Input
18
17
Traction
Motor
Throttle
Input
Input 6 / Pot 6 Supply
Input 1 / Pot 1 Wiper
GND
18
16
15
B+
Main Contactor
Battery
24V
-
+
Fuse
B−
EMERGENCY
STOP
E Stop
Pole B
+
−
CAN PORT #2
CAN2 L
CAN2 H
Short for
Termination
120Ω CAN1
34
21
28
29
CAN PORT #1
CAN1 H
CAN1 L
23
35
twisted pair, recommended
twisted pair, recommended
twisted pair, recommended
CAN PORT #1
CAN1 H
CAN1 L
Isolated GND
23
35
34
CAN2 L
CAN PORT #2
CAN2 H
28
29
21
Not Used
ISOLATED CAN MODELS
MODELS w/o Isolated CAN
ISOLATED
CAN PORTS
Figure 13

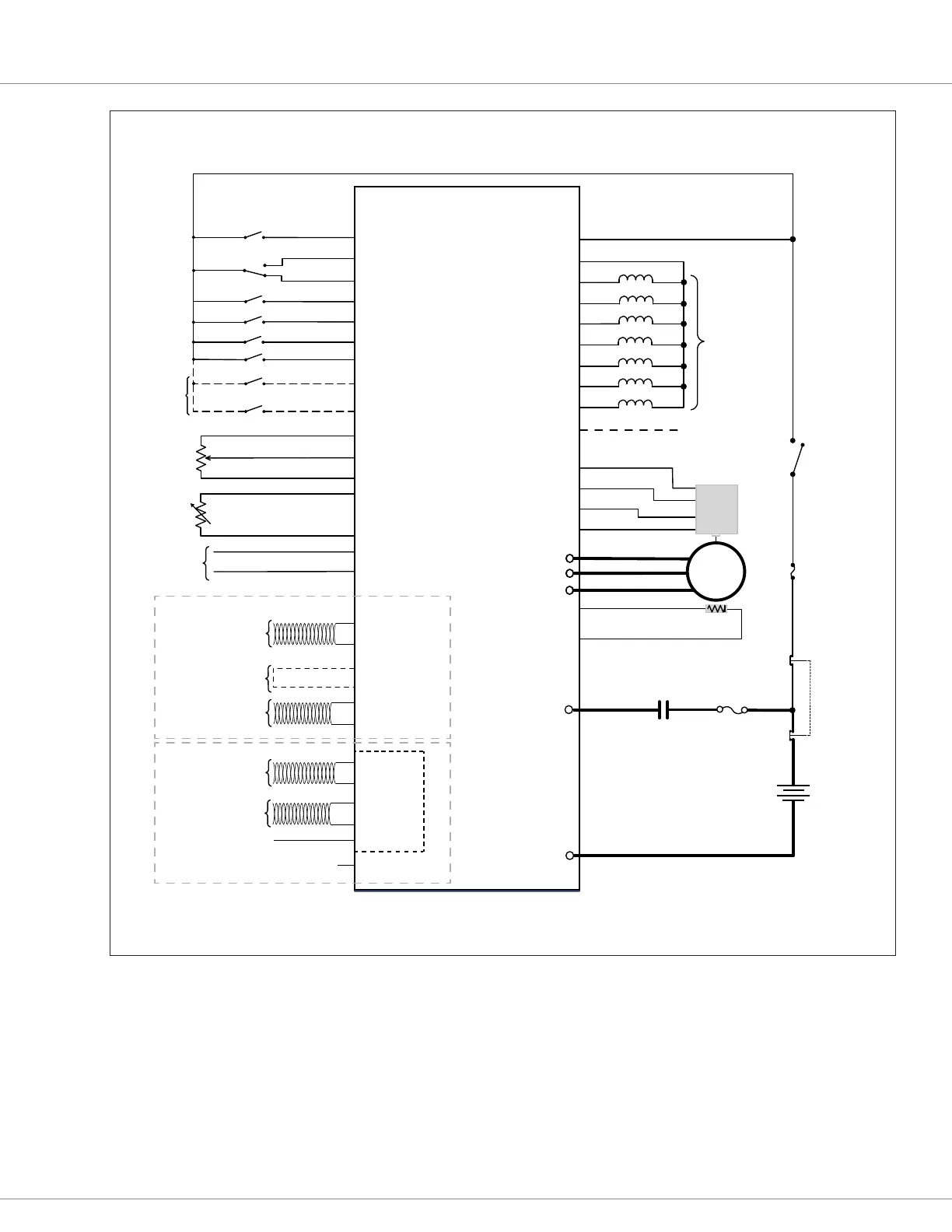

AC F4-A, F6-A Basic Wiring Diagram
