1 — OVERVIEW
e Curtis F2-A and F4/6-A motor controllers provide accurate, dependable, and highly ecient control
of speed and torque of AC induction motors (ACIM) and permanent magnet AC motors (PMAC).
ese traction controllers are optimized for both class III pedestrian-operated (F2-A) and rider-
powered (F4/6-A) pallet trucks. They provide vehicle designers with the ability to fully define
and control the detailed dynamic performance of their vehicle’s drivetrain, and also provide
comprehensive vehicle management and CAN manager capabilities. ese models are also suitable
for traction or hydraulic pump control on other types of battery powered vehicles, based upon the
power requirements. e AC-F2-A is a 23-pin model. e AC F4/6-A is a 35-pin model oering a
higher-count I/O and a second CAN port.
Together with the Curtis model 3140/3141 CAN LCD display and the Curtis Integrated Toolkit
TM
,
these Curtis models are the ultimate Class III truck control system.
Easily enhance any application by using Curtis’s Vehicle Control Language (VCL). e setup and
diagnostic tasks use the new PC-based Curtis Integrated Toolkit™ program (CIT) or the CAN-based
Curtis 1313 handheld programmer (1313HHP).

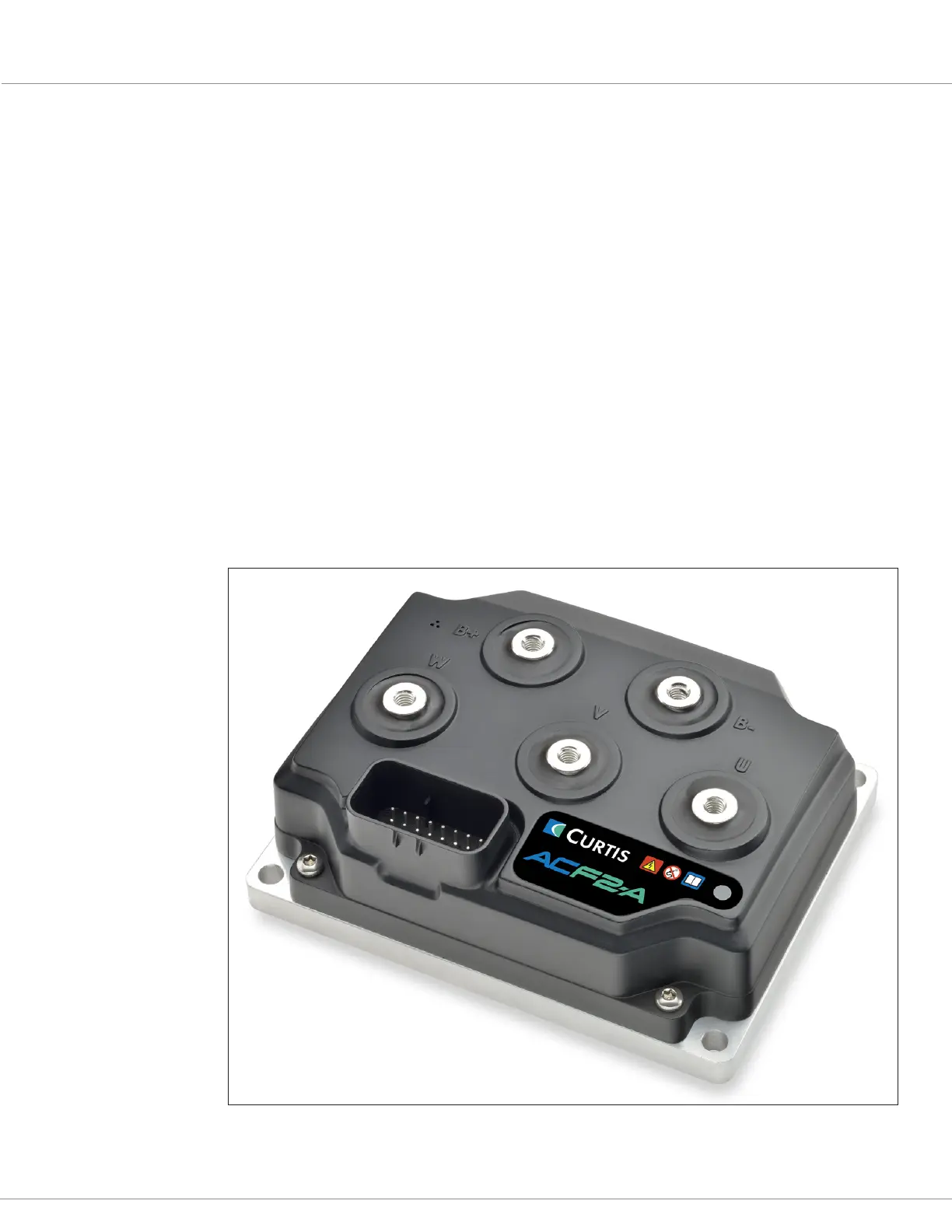

Figure 1
AC F2-A Motor
Controller
