VCL program is specic to that device. Selecting the project’s system level icon in Launchpad brings
up the list of apps that can work with the whole system simultaneously. Launching from the system
level allows data collection from all the CANbus connected devices. Some apps, such as Package and
Flash, can only be run from the system level.
e CIT registration key controls what data is visible or editable, and what apps may be available to
the user. ere are ve user levels.
e OEM-Factory is the most advanced level. e OEM manufacturer’s engineering sta
will use this level to customize the application and set/restrict the lower-level users’ access
to critical settings.
e OEM-Dealer access level is for the OEM Dealership’s technical sta. Based upon the
vehicle, access to parameters to customize the vehicle further is common, as well as complete
diagnostic access.
The Field-Advanced and Field-Intermediate levels are for site technicians and fleet
maintenance sta or users. Typically, these users will not edit parameters that change the
vehicle’s characteristics, but may report diagnostic feedback.
e Field-Basic level is well suited for the end-user or a location’s sta, who will not be
changing parameter values or conducting detailed vehicle or device diagnostics.
is manual uses the OEM-Factory access level. erefore, not all items described in this manual
may be applicable (or visible) to all CIT users.

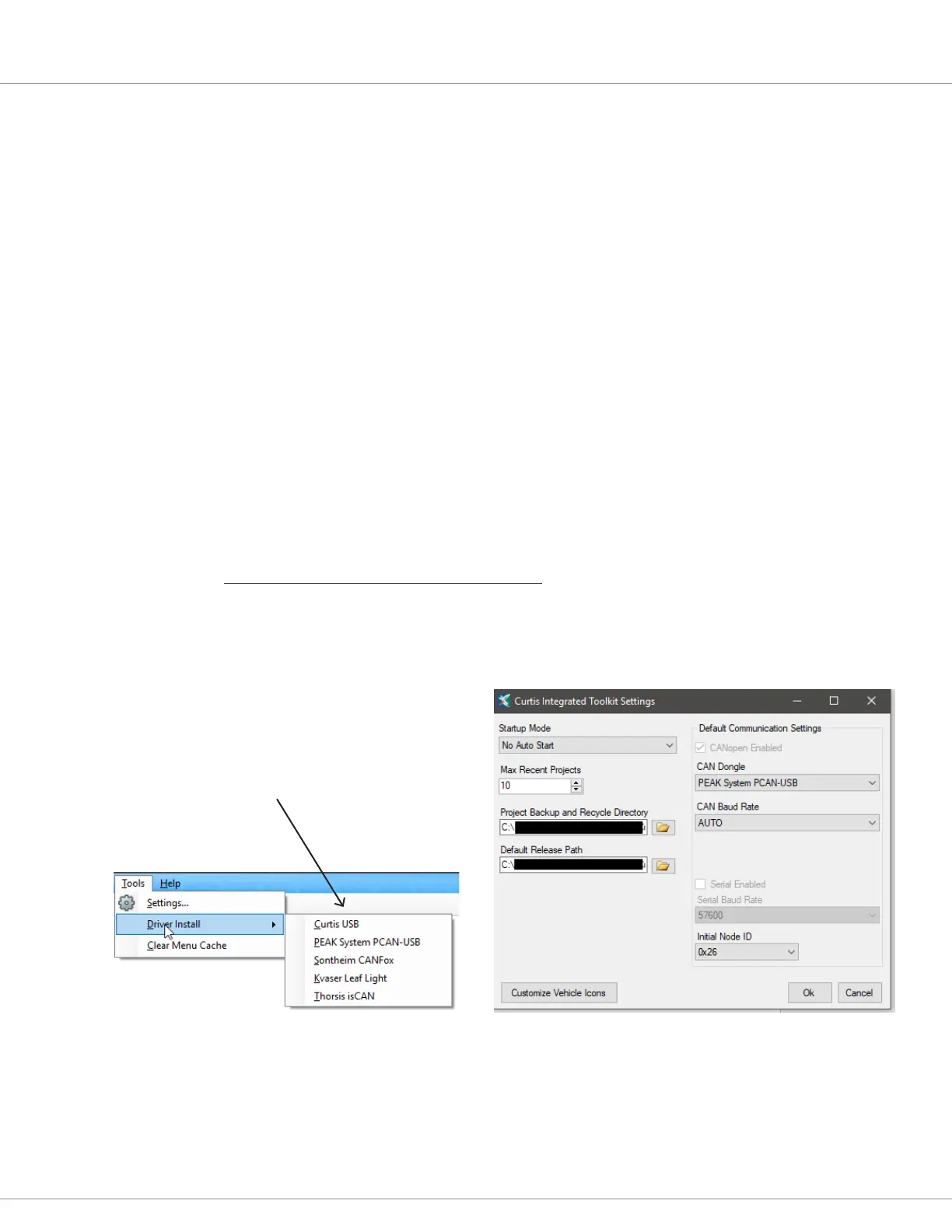

Choose the CAN Interface Device Driver
CIT requires a CAN dongle to connect to the controller CAN port and the PC. If not already
completed, install the appropriate driver. From the Launchpad, do this under the Tools menu. en
use the settings option to complete the CIT settings.
Select the CAN Dongle
Set the default CAN Baud Rate
Set the initial (default) Node ID
Project directories & paths
Load the Driver
}
Creating a Project with a new F-Series controller
Always review the instructions and terminology available within the version of CIT in use. (For example,
these images are from the Curtis Integrated Toolkit
TM
program, version 1.5.0).
When starting a new F-Series application, begin by installing/wiring the controller as per this manual.
en, open Launchpad, but do not select “Scan for Devices” or, if previous CIT projects are listed, do
