Unbalanced weight.
Improper lifting can cause severe injury or death and equipment damage.
Do not use lifting eyes. Lift the generator set using lifting bars inserted through the lifting
holes on the skid.

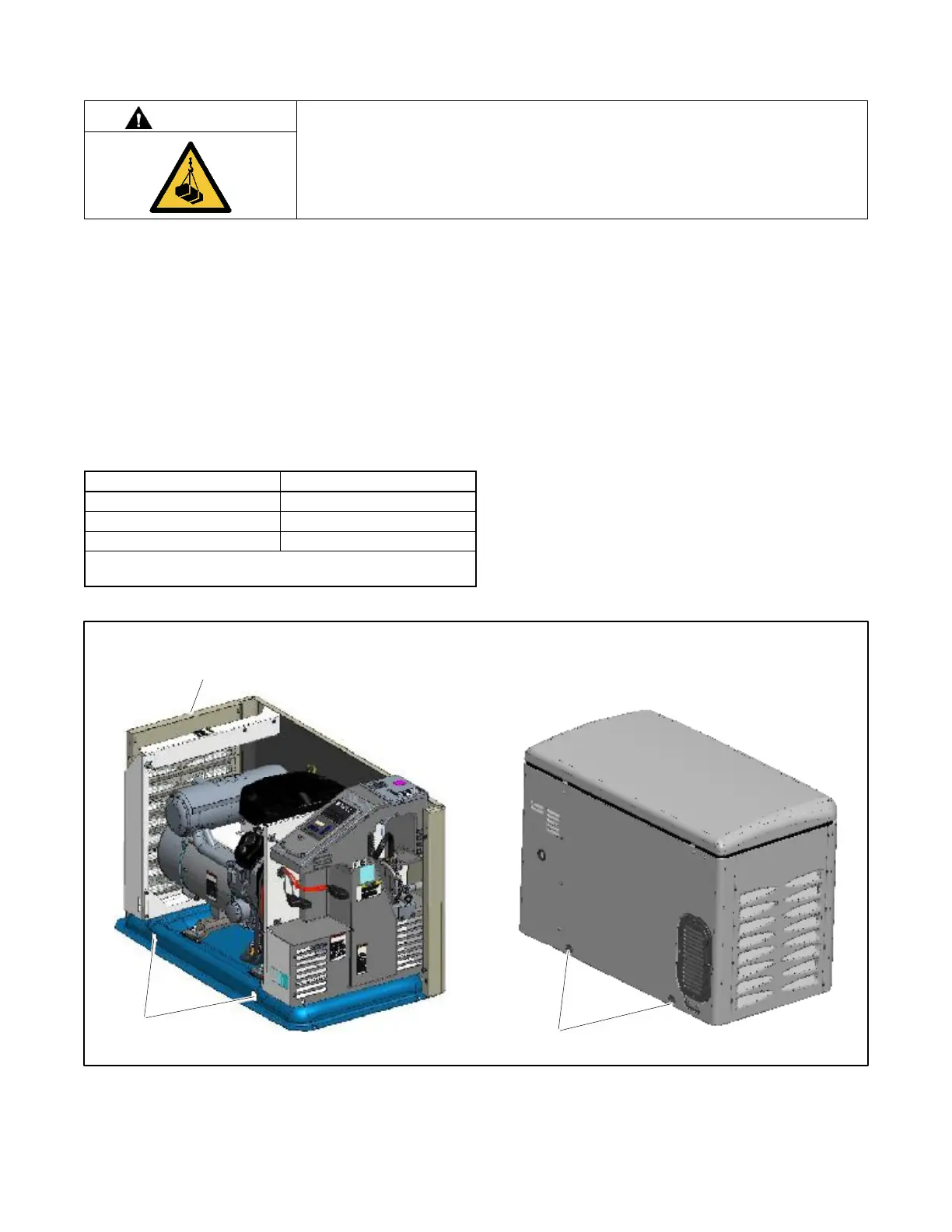

Generator set weights are shown in Figure 3. These shipping weights include the generator set and packaging with skid, but do
not include the battery or an automatic transfer switch. Use lifting bars inserted through the holes in the base to lift the unit.
See Figure 4 for lifting hole locations. To access the lifting holes:
1. Raise the roof.
2. Lift off the exhaust end panel and the air intake end panel. No tools are required to remove the enclosure panels.
3. Lift off the service side panel.
4. Insert lifting bars through the holes in the base to lift the generator set.
After placing the generator set in its final location, use the plastic plugs provided with the generator set to cover the lifting holes
that are not covered by the enclosure panels.
Raise the roof and lift the air intake side and exhaust end panels up and off.
Then remove the service-side panel to expose lifting holes in the base.
