Kohler RDC2 Installation

TP-7091 4/23 33
3.1.3 Electrical Lead Entry
Drill or punch holes in the enclosure for the electrical conduit in the locations shown in Figure 23. To avoid interference with the
roof when it is open, use a 90-degree elbow at the AC voltage entry point and direct the conduit away from the roof.

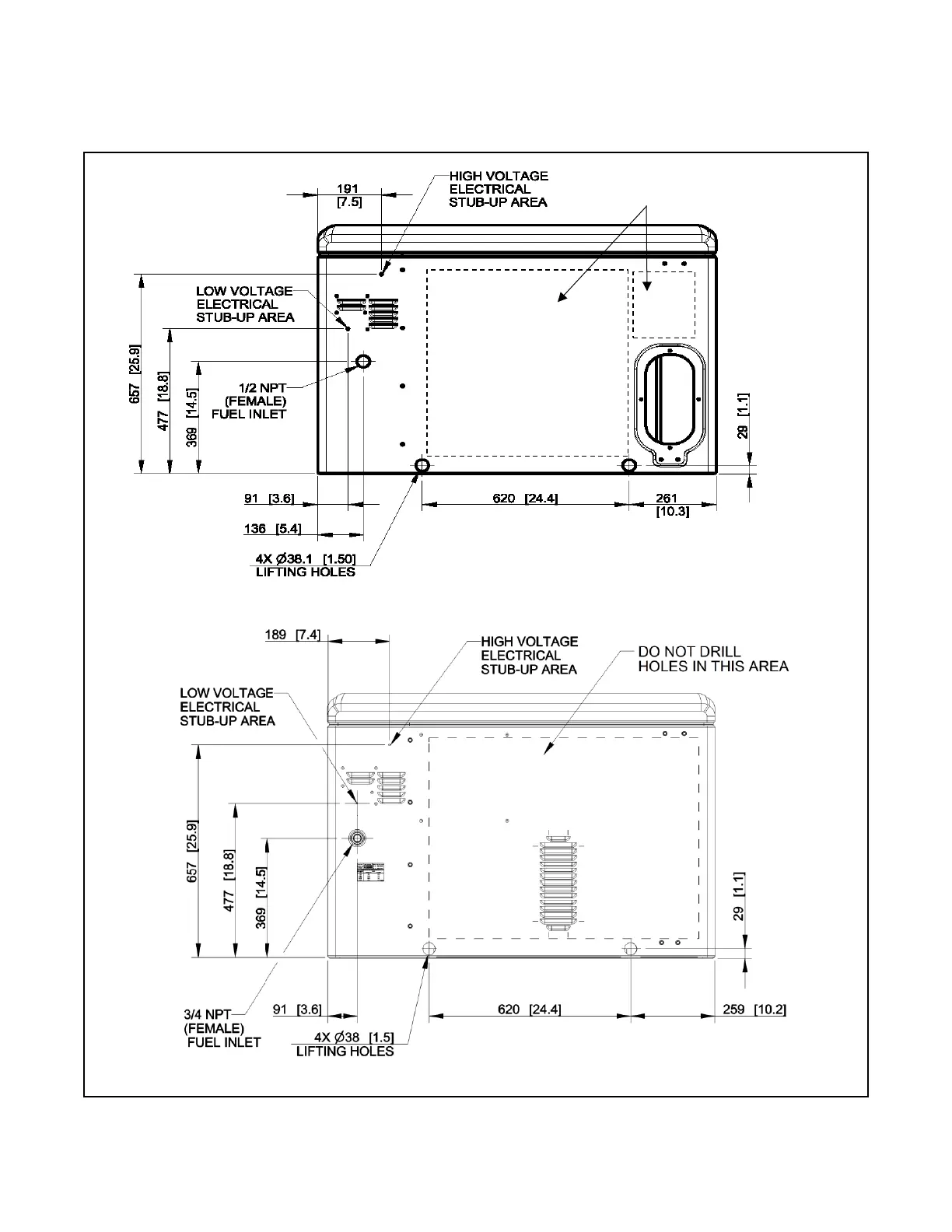

Figure 23 Electrical Lead Entry Locations
DO NOT DRILL HOLES IN
THESE AREAS
14/20 RCA/L Models
ADV- 9746
26 RCA/L Models
ADV-9919
Dimensions are shown in mm [inches].
