2.2.3
Fuel Conversion, Revised Fu
el System, 14/20/26RCA/L

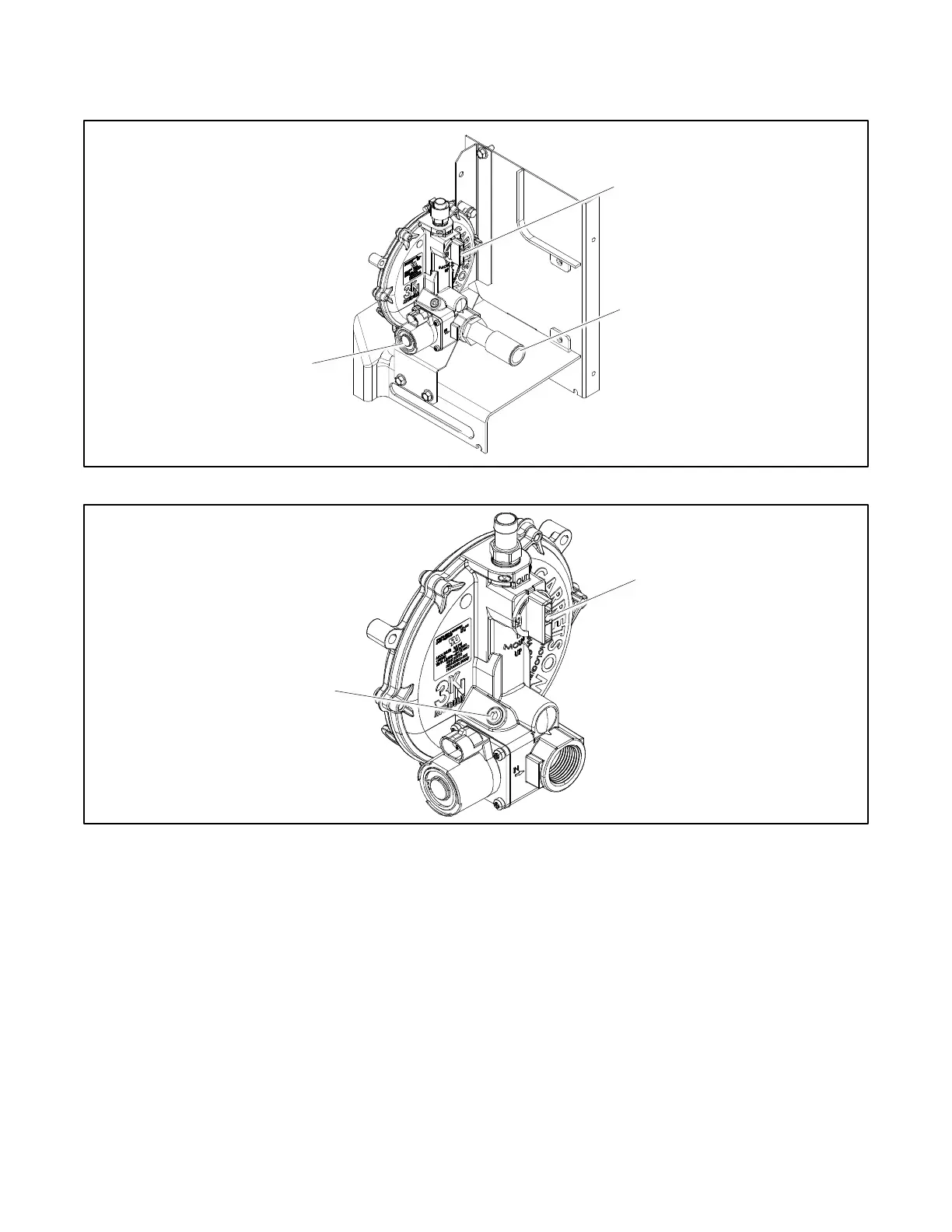

The revised fuel system uses a knob that controls a valve on the regulator to select the fuel type. See Figure
16
and Figure
17
.
Figure
16
Revised Fuel System
Figure
17
Fuel Selection (NG Position Shown)
Fuel selector
Fuel inlet
Integral fuel solenoid valve
GM114166
Pressure port
Fuel selector
GM110973-
CMP
27
29
