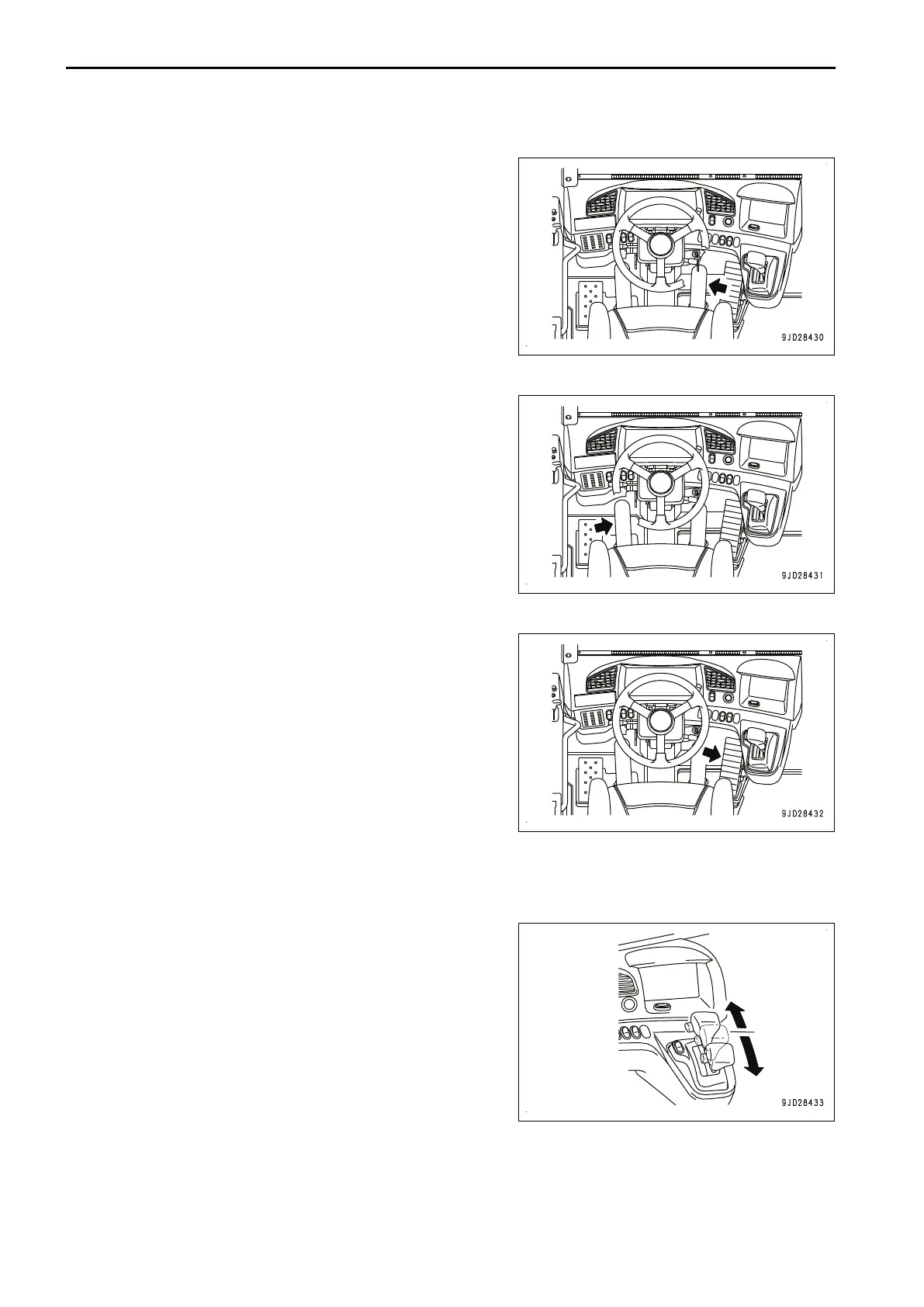

BRAKE PEDAL
The brake pedal is used to apply the wheel brakes.
Use it when stopping or decelerating the machine.
REMARK
• The wheel brakes can be operated by depressing the
brake pedal even while ARSC system is in operation.
• If the brake pedal is depressed while the KTCS is in opera-
tion, the KTCS system stops operation.
SECONDARY BRAKE PEDAL
The secondary brake pedal is the brake that can operate both
front brake and rear brake at the same time.
Use it if the wheel brake does not operate due to damage of
brake pedal.
ACCELERATOR PEDAL
Use the accelerator pedal to control the engine speed.
It can be operated freely from low idle to full throttle.
REMARK
• When the ARSC Setting is set to ON, the ARSC system
functions only while the accelerator pedal is released.
If the accelerator pedal is depressed while the ARSC is in
operation, the ARSC system stops operation.
• The KTCS system can operate while the accelerator pedal
is depressed and the gear speed is at any of the 1st speed
through 4th speed, or REVERSE.
If the accelerator pedal is released while the KTCS is in
operation, the KTCS system stops operation.
GEAR SHIFT LEVER
Select the gear shift range with the gear shift lever according to
the travel conditions.
Position D
This is used for the normal travel.
When the position D is used, the transmission is set automati-
cally between the 2nd torque converter drive and the 7th speed
according to the travel speed.
The transmission is fixed to the 1st speed and is not changed
while the dump body is raised. Keep the dump body lowered
during travel.
The maximum travel speed in position D is 70.0 km/h.
EXPLANATION OF COMPONENTS OPERATION
3-110
