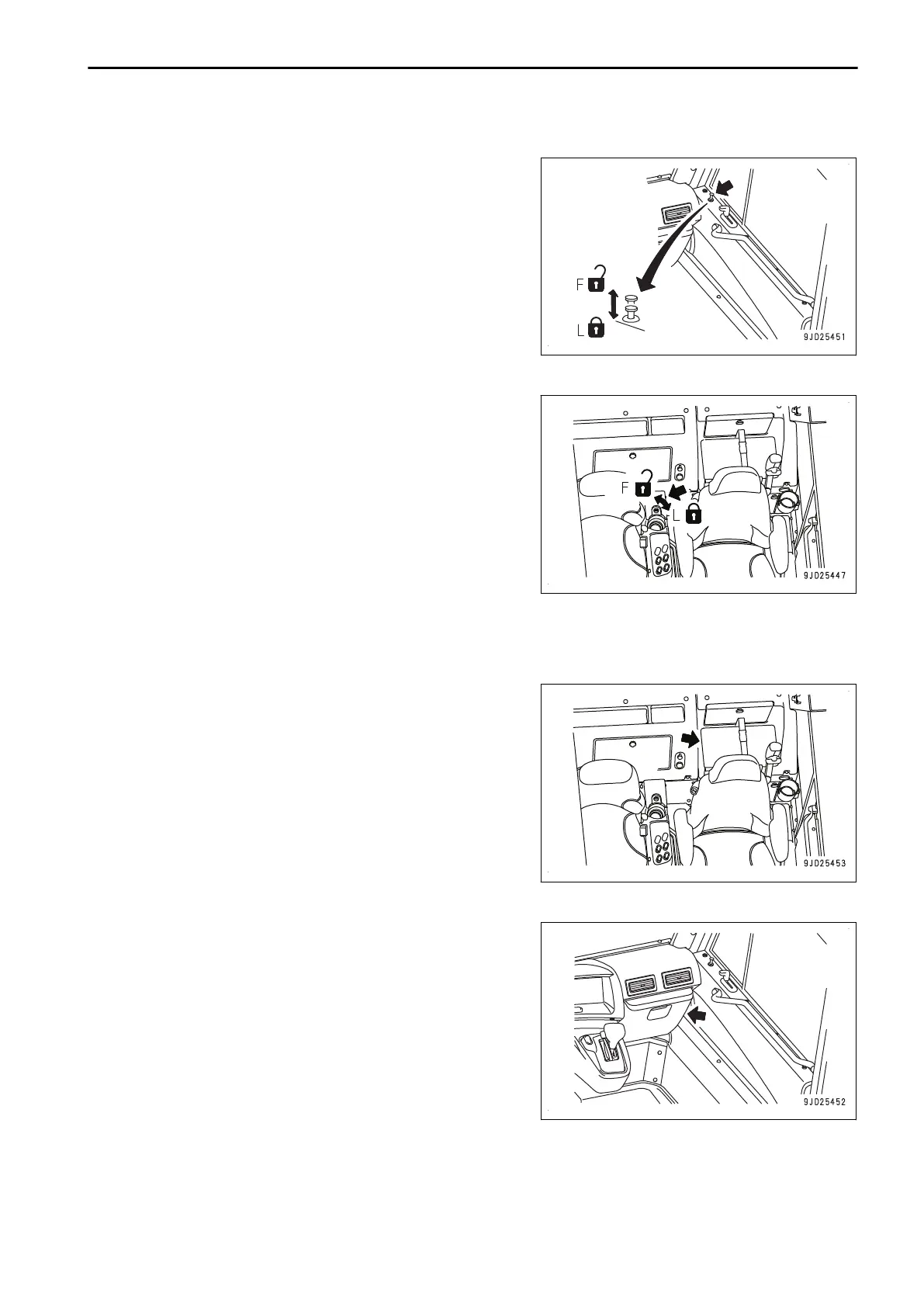

CAB DOOR INNER LOCK
While the cab door is closed, it can be locked by pressing the
cab door inner lock.
(L) LOCK position
It locks the cab door.
It is used when operating the machine.
(F) FREE position
It unlocks the cab door.
It is used when getting off the machine.
DRINK BOX
The drink box is provided on the rear side of the center console
to store the drinks.
Air according to the setting of the air conditioner blows into the
drink box.
Turn the knob counterclockwise and pull the cover up and open
it.
(L) LOCK position
The cover is locked.
(F) FREE position
The cover is unlocked.
When closing the cover, lock it by turning the knob clockwise while pressing the cover.
LUNCH BOX TRAY
The lunch box tray is located at the rear of the operator's seat.
MAGAZINE BOX
The magazine box is provided on the front right side of opera-
tor's seat for storing an A4-size binder and such.
Do not put in heavy things such as tools.
OPERATION EXPLANATION OF COMPONENTS
3-115
