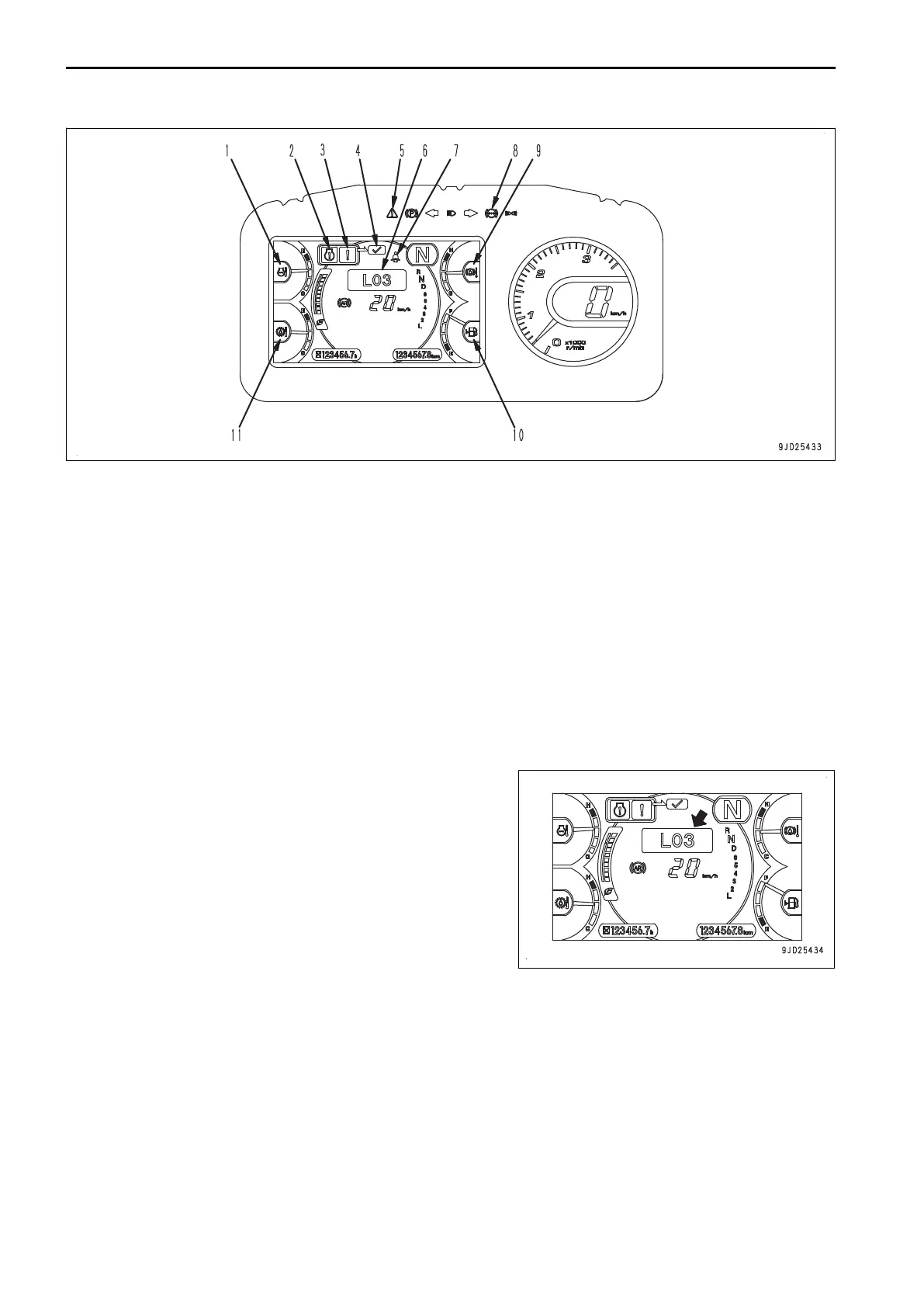

(1) Engine coolant temperature caution lamp
(2) Warning display
(3) Warning display
(4) Guidance icon
(5) Centralized warning lamp
(6) Action level display
(7) Seat belt caution lamp
(8) Brake oil pressure caution lamp
(9) Retarder oil temperature caution lamp
(10) Fuel level caution lamp
(11) Torque converter oil temperature caution lamp
REMARK
• When 1 type of warning is generated, it is displayed on warning display (2).
• When 2 types of warning are generated, they are displayed on warning displays (2) and (3).
• When more than 3 types of warning are generated, they are displayed on warning displays (2) and (3) alter-
nately at intervals of 2 seconds.
ACTION LEVEL DISPLAY
Action level display indicates the degree of urgency of the ab-
normality currently generated on the machine by “L01” to “L04”.
The larger the number in the table is, the more serious effects
the abnormality may have on the machine if it is left with no ac-
tion.
When the machine monitor displays an action level, take ap-
propriate actions according to “List of action level displays and
required actions”.
EXPLANATION OF COMPONENTS OPERATION
3-16
