Komatsu PC360NLC-11 User Manual

1.
Boom cylinder rod pins (2 places)
2.
Arm cylinder foot pin (1 place)
3.
Boom and Arm connection pin (1 place)
4.
Arm cylinder rod end (1 place)
5.
Bucket cylinder foot pin (1 place)
6.
Boom cylinder foot pins (2 places)
7.
Boom foot pins (2 places)

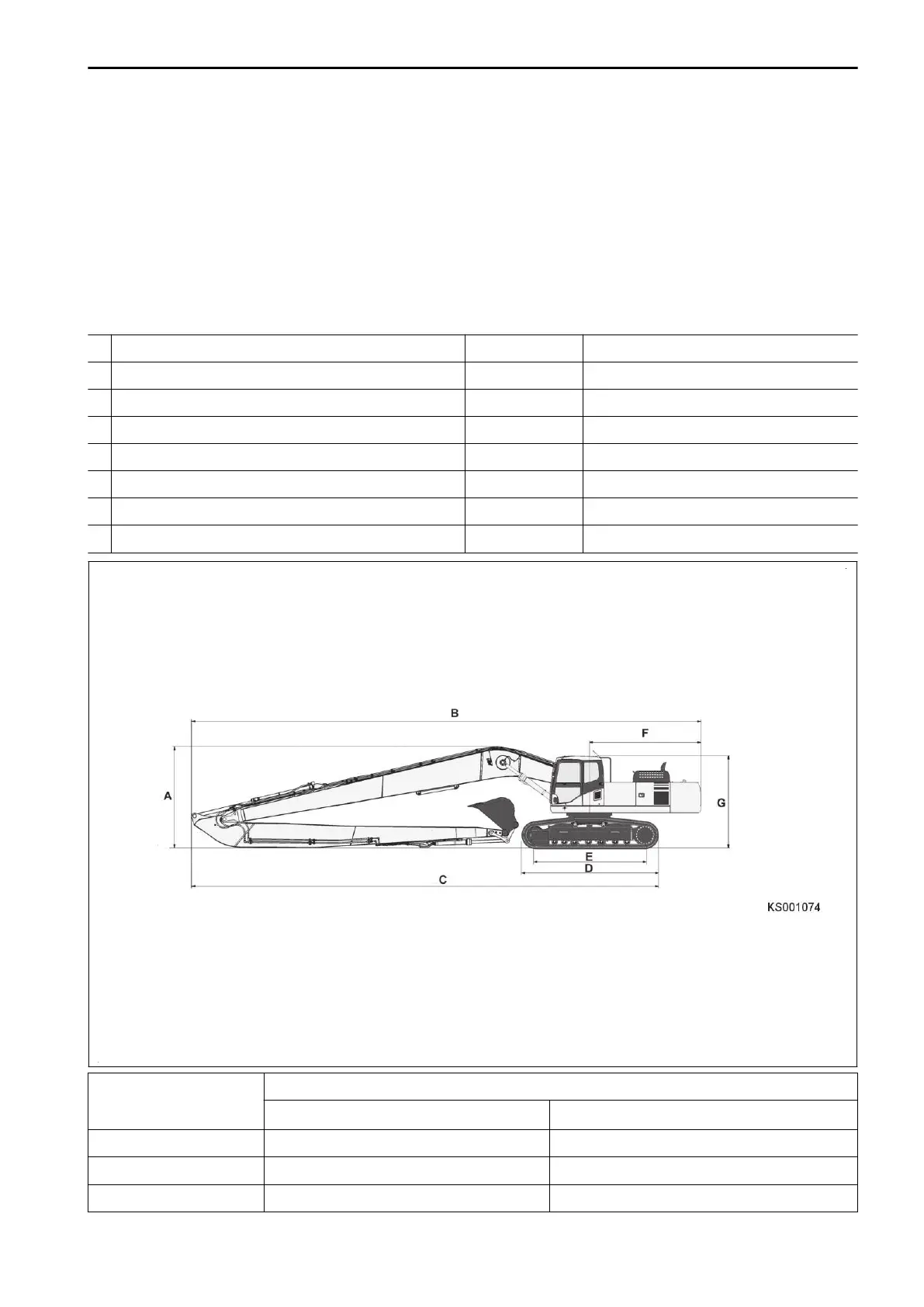

SPECIFICATIONS - SUPER LONG FRONT
Item
Unit PC360LC-11 (22m Super Long Front)
A Overall shipping height mm 3470
B Overall shipping length mm 17220
C Transport length mm 15963
D Track length mm 4955
E Track length on ground mm 4030
F Tail swing radius mm 3770
H Overall height of cab mm 3164
Track shoe (mm)
PC360LC-11 (22m Super Long Front)
Operating weight (kg)
Ground pressure (kg/cm
2
)
700mm 41300 0.68
800mm 41680 0.60
850mm 41870 0.57
ATTACHMENTS AND OPTIONS SUPER LONG FRONT BOOM AND ARM
6-33

Komatsu PC360NLC-11 Specifications

General

Brand	Komatsu
Model	PC360NLC-11
Category	Excavators
Language	English
