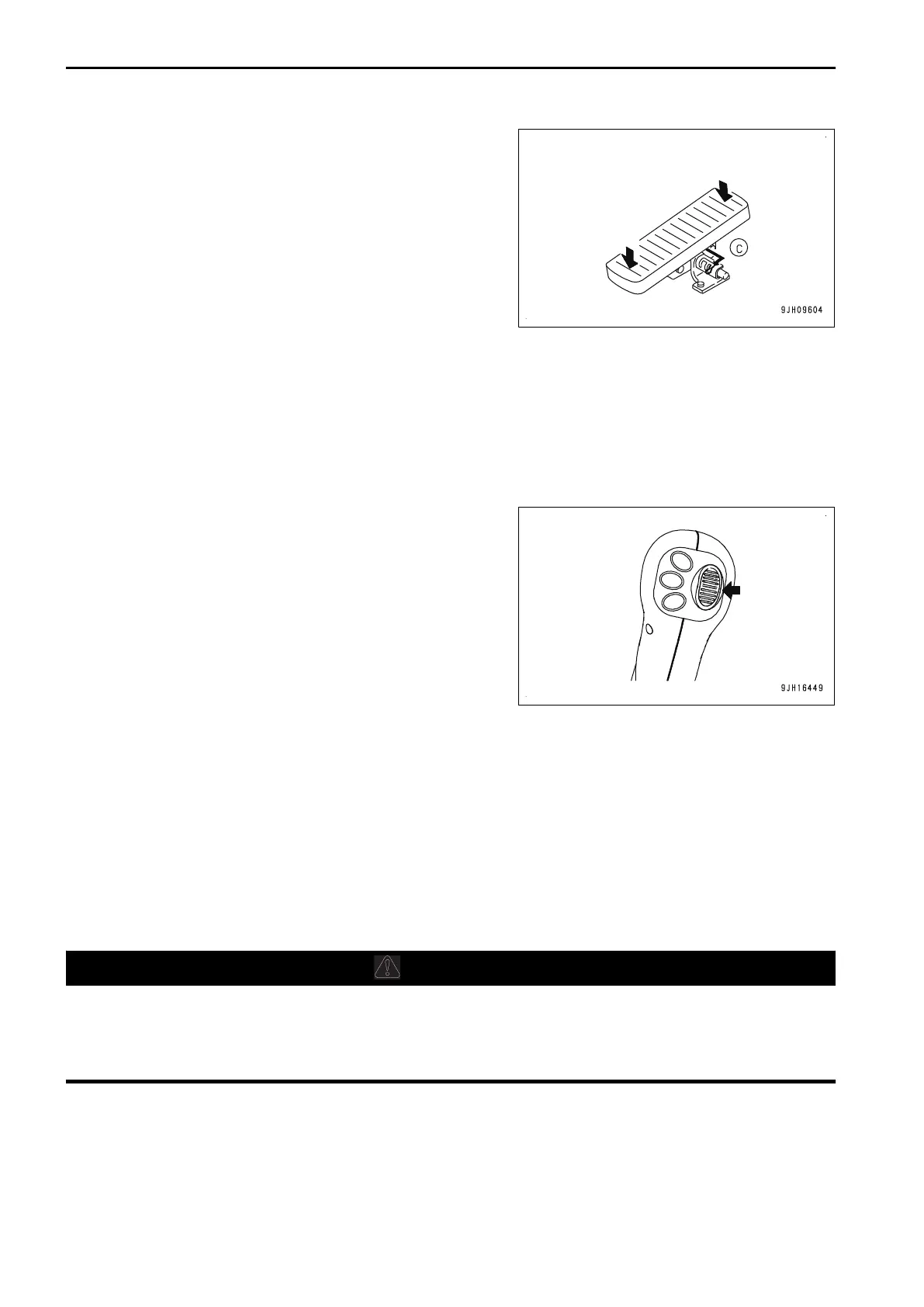

With the working mode set at ATT mode, insert the lock pin in
FREE position (c) for both front and rear. Depress the front or
rear of the pedal to operate the attachment.
METHOD FOR OPERATION WHEN USING GENERAL ATTACHMENT 2 (E.G.
CLAMSHELL ROTATION, CRUSHER ROTATION)
REMARK
If installing 2nd attachment line as a field kit, ask distributor to change monitor setting to allow 2 attachments.
The switch on left lever is a roller proportional control switch. Rolling the switch up produces rotation in one di-
rection, rolling down produces rotation in the opposite direction. Slight movement of the roller will give slight
movement of the attachment; full movement of the roller will give faster movement of the attachment.
If the working mode pilot monitor does not display ATT/P or
ATT/E for the attachment mode, follow the instructions, see
“WHEN USING GENERAL ATTACHMENTS SUCH AS
CRUSHER”
LONG-TERM STORAGE
NOTICE
If there is no breaker or general attachment installed, operating the pedal may cause overheating and
other problems.
If the equipment is not to be used for a long time, do as follows.
• Set the stop valve in LOCK condition.
• Install the plugs to the piping end of the stop valve.
• Set the lock pin in LOCK position.
MAINTENANCE OF ADDITIONAL FILTER FOR BREAKER
WARNING
• Immediately after the engine is stopped, its parts and oil are still very hot, and may cause burn in-
jury. Accordingly, wait until they have cooled down before starting the work.
• When using compressed air, there is a danger that dirt may scatter and cause personal injury.
Always wear protective equipment such as protective eyeglasses and dust mask.
NOTICE
For the element replacement interval, see “MAINTENANCE INTERVAL FOR HYDRAULIC BREAKER
(4-13)”.
Items to be prepared
Container to receive drained oil
HANDLE MACHINE READY FOR INSTALLATION OF ATTACHMENT ATTACHMENTS AND OPTIONS
6-52
