24.5 EVERY 250 HOURS SERVICE
Maintenance for every 50 hours service should be carried out at
the same time.
24.5.1 LUBRICATING
WARNING
‡ Apply the parking brake, and lock the front and rear frames
with the safety bar and pin.
‡ Set the work equipment in a stable condition, then stop the
engine and apply the locks securely to the work equipment
control lever.

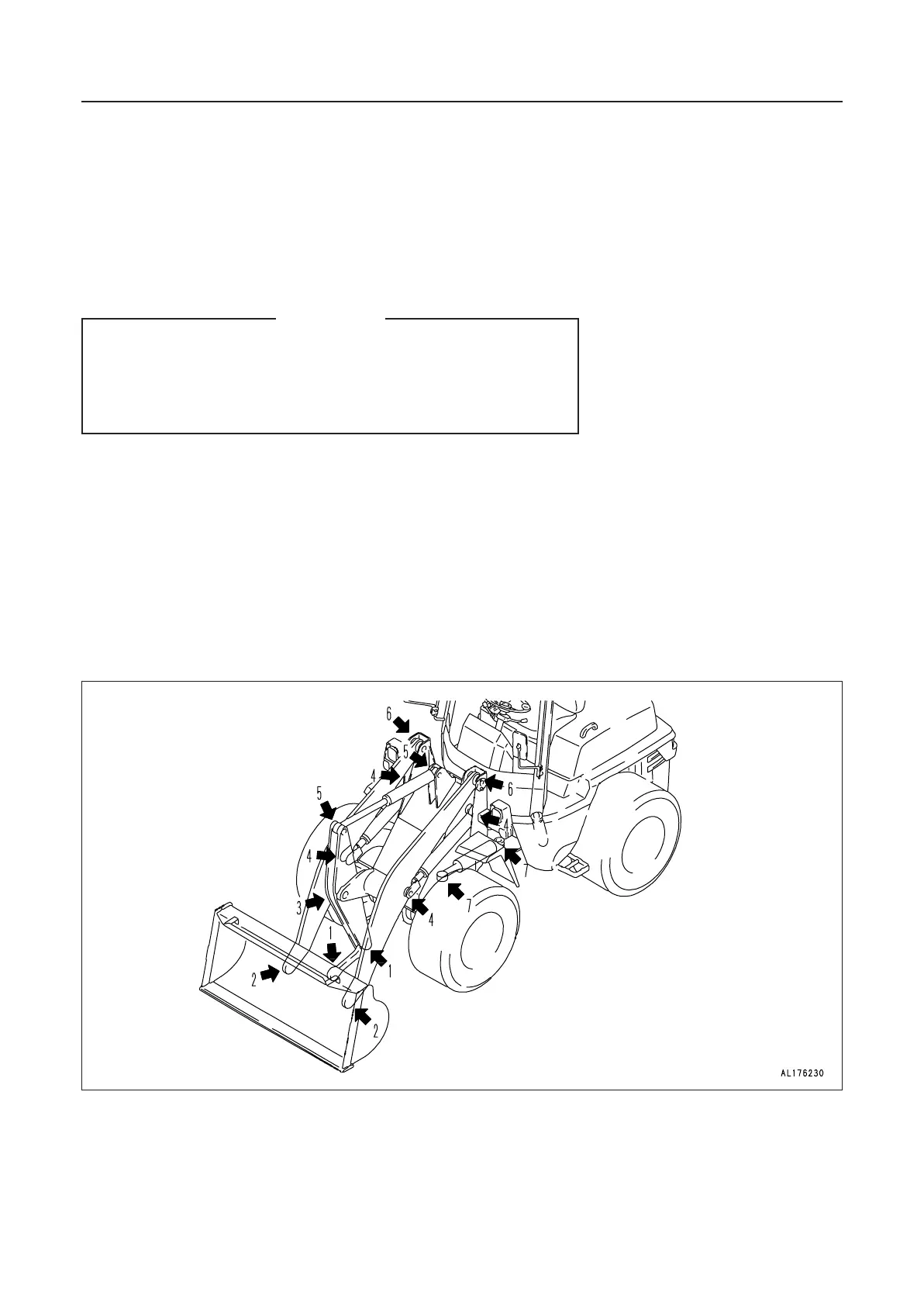

1. Using a grease pump, pump in grease through the grease
fittings marked by the arrows.
2. After greasing, wipe off any old grease that is pushed out.
1. Bucket link pin (2 points)
2. Bucket pin (2 points)
3. Tilt lever pin (1 point)
4. Lift cylinder pin (4 points)
5. Dump cylinder pin (2 points)
6. Lift arm pin (2 points)
7. Steering cylinder pin (2 points)
