13 SERVICE WORK ON THE CHASSIS 170
F00894-11

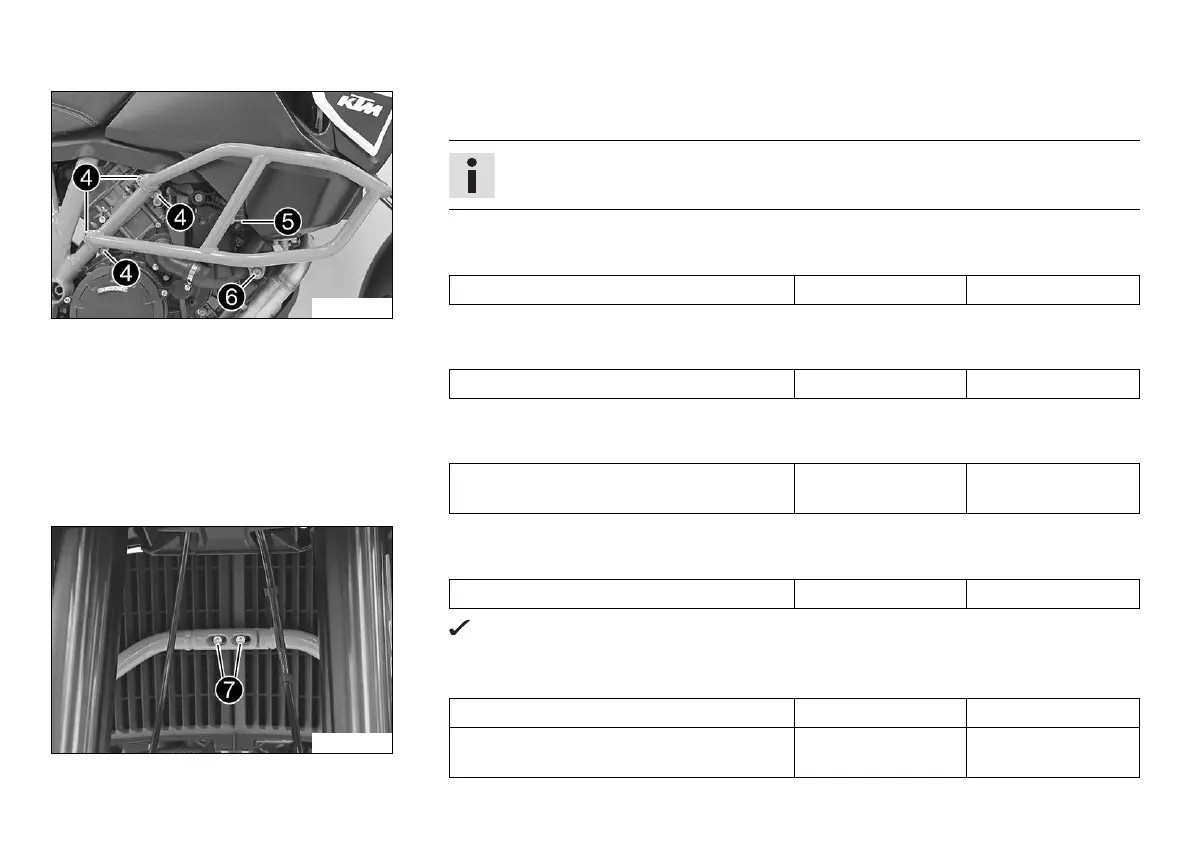

– Position the right crash bar with frame protector and attach the clamp to the frame
tube.
Info
Cover the components to protect them against damage.
–
Mount screws
4
but do not tighten yet.
Guideline
Remaining chassis screws M6 10 Nm (7.4 lbf ft)
–
Mount screw
5
but do not tighten yet.
Guideline
Remaining chassis screws M6 10 Nm (7.4 lbf ft)
–
Mount screw
6
but do not tighten yet.
Guideline
Remaining chassis screws M10 45 Nm
(33.2 lbf ft)
F00893-11
–
Mount and tighten fittings
7
.
Guideline
Remaining chassis screws M6 10 Nm (7.4 lbf ft)
The crash bars are equally aligned with each other.
– Tighten all the screws of the crash bar.
Guideline
Remaining chassis screws M6 10 Nm (7.4 lbf ft)
Remaining chassis screws M10 45 Nm
(33.2 lbf ft)
