13 BRAKE SYSTEM 111
M00461-10
–

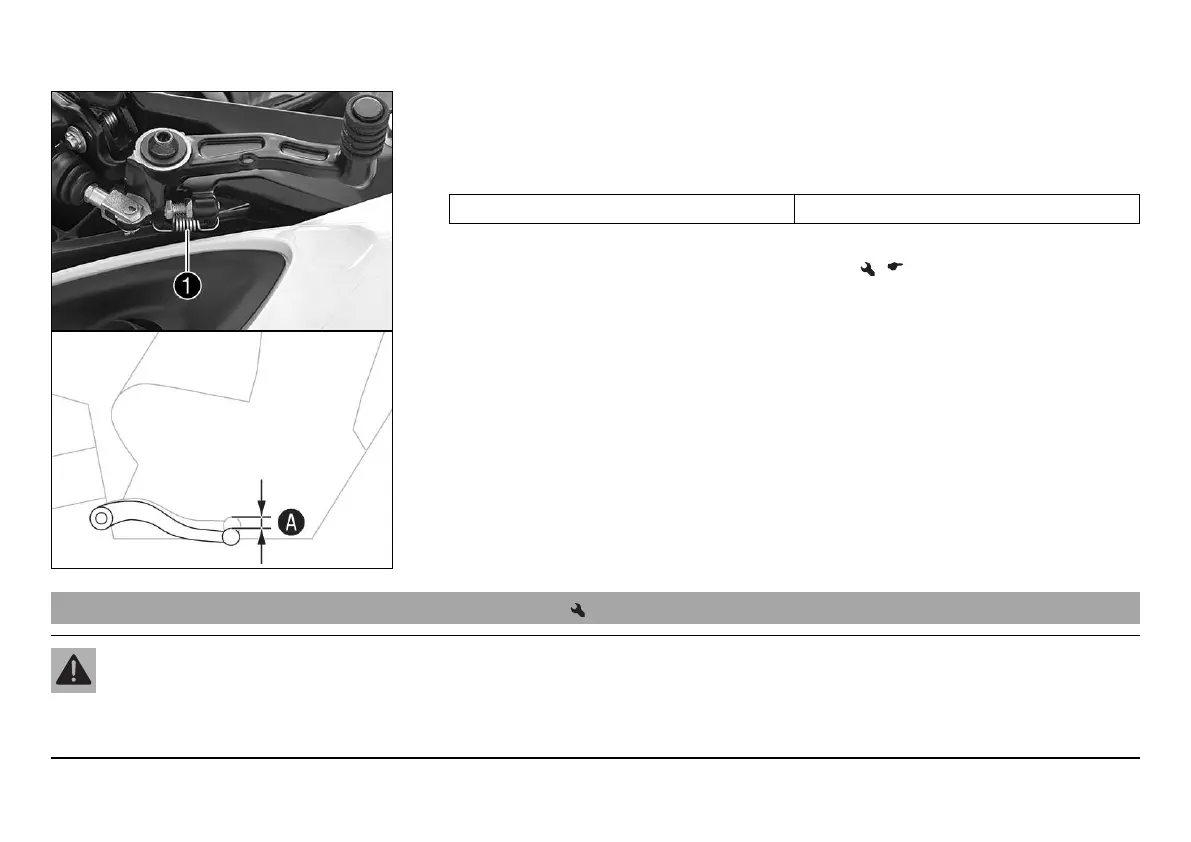

Disconnect spring
.
– Move the foot brake lever back and forth between the end stop and the contact to the
foot brake cylinder piston and check free travel
.
Guideline
Free travel at foot brake lever 3… 5 mm (0.12… 0.2 in)
» If the free travel does not meet specifications:
– Adjust the free travel of the foot brake lever. ( p. 111)
–
Reconnect spring
.
13.10 Adjusting the free travel of the foot brake lever
Warning
Danger of accidents Brake system failure.
– If there is no free travel on the foot brake lever, pressure builds up on the rear brake circuit. The rear brake can fail due to over-
heating. Adjust the free travel on foot brake lever according to specifications.
