7 COMBINATION INSTRUMENT 39

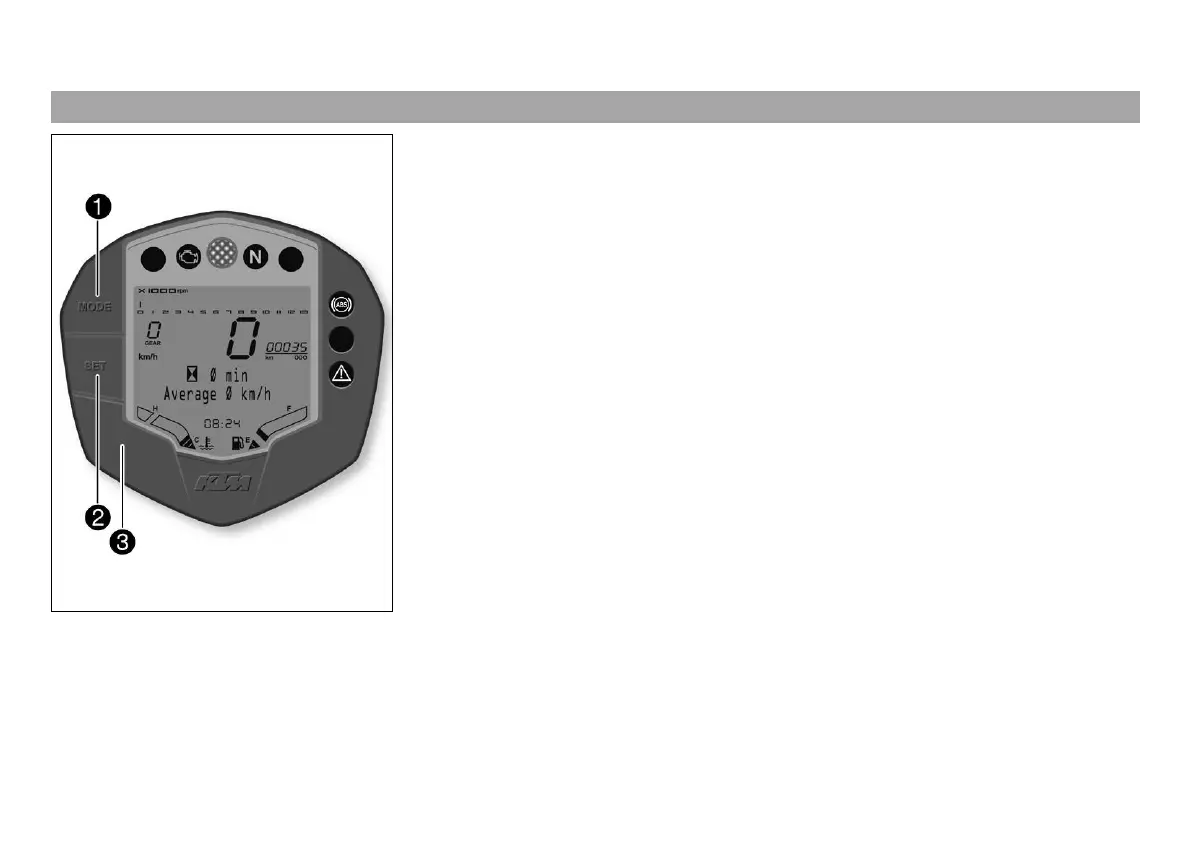

7.4 Function buttons

401685-12

You can change the display mode with the MODE button



Possible display modes are total distance traveled (TRIP 1), distance 1 (ODO) and

distance 2 (TRIP 2).

Pressing and holding the SET button



resets the distance 1 (TRIP 1) and

distance 2 (TRIP 2) functions to 0.0 and briefly pressing the SET button



changes the

info display to the next display mode.

The ABS can be switched off using button


