7 COMBINATION INSTRUMENT 35

7.2 Activation and test

401686-01

Activation

The combination instrument is activated when the ignition is switched on.

Test

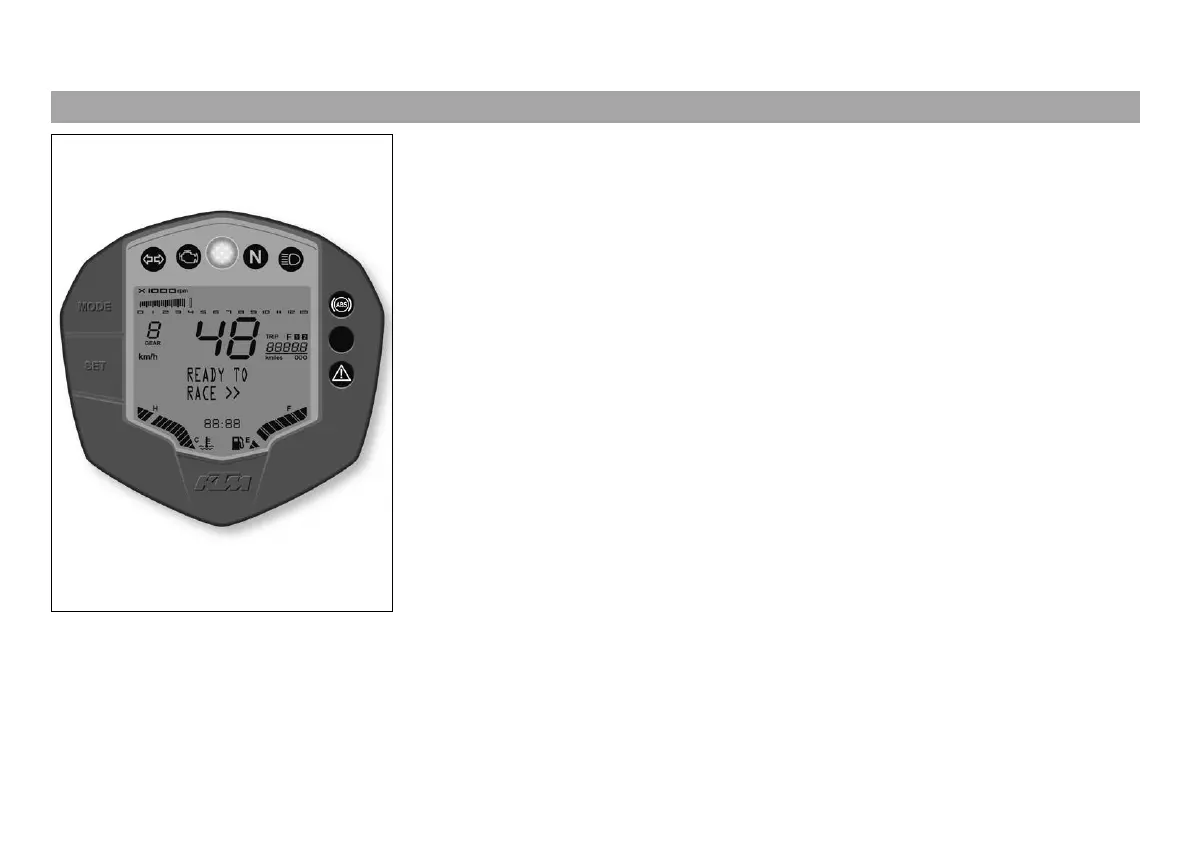

The segments of the tachometer and the gear display light up and switch off in sequence.

The speed display counts from 0 to 199 and back.

The remaining display segments outside the info display light up briefly.

The READY TO RACE >> logo appears on the info display.

The display then changes to the last selected mode.
