15 ELECTRICAL SYSTEM 136
15.9 Checking the high beam headlight adjustment
400575-10

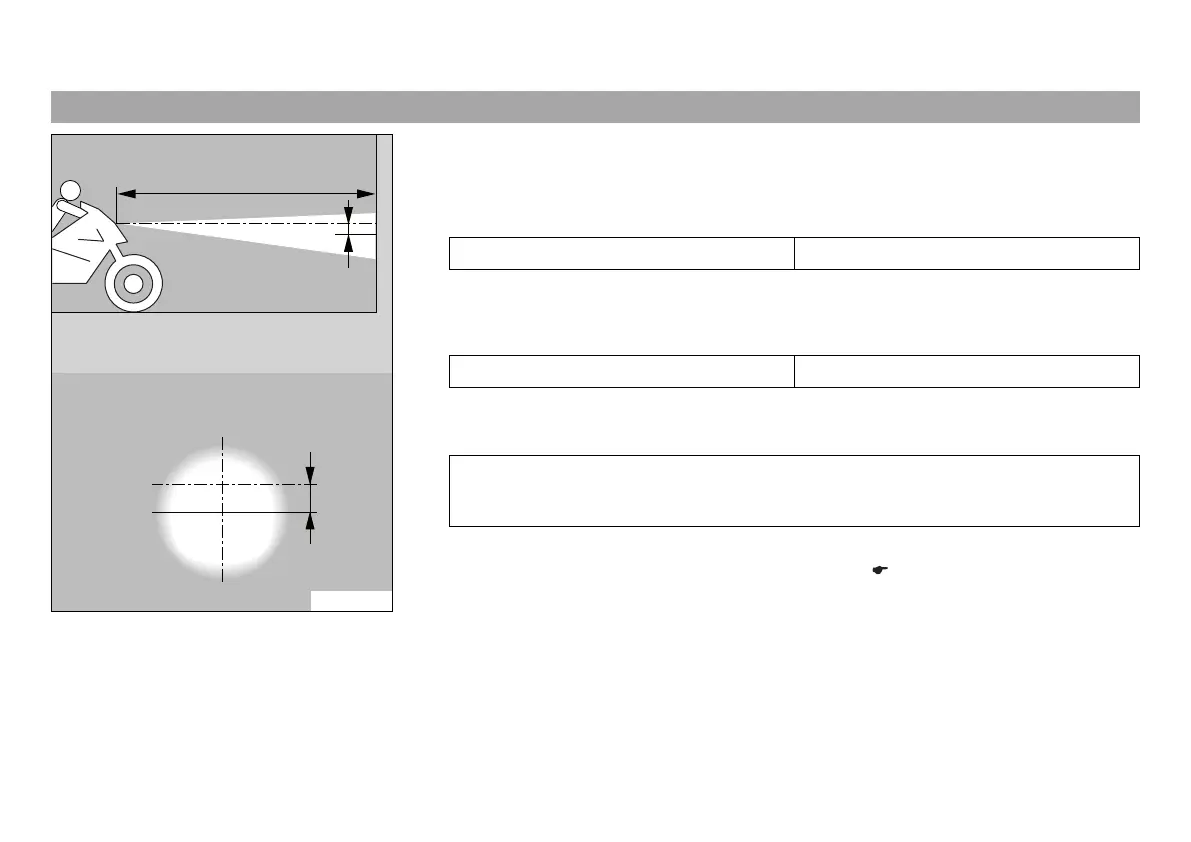

– Position the vehicle upright on a horizontal surface in front of a light wall and make a
mark at the height of the center of the low beam headlight.
–
Make another mark at a distance
under the first mark.
Guideline
Distance
5 cm (2 in)
–
Position the vehicle vertically at a distance
in front of the wall and switch on the
high beam.
Guideline
Distance
5 m (16 ft)
– The rider, with luggage and passenger if applicable, now mounts the motorcycle.
– Check the high beam headlight adjustment.
The center of the light cone must lie exactly on the lower mark when the motorcycle
is ready to operate with the rider mounted along with any luggage and a passenger if
applicable.
» If the center of the light cone is not located where specified:
– Adjust the headlight range of the high beam. ( p. 137)
