12 SERVICE WORK ON THE CHASSIS 83
12.8 Mounting the passenger seat

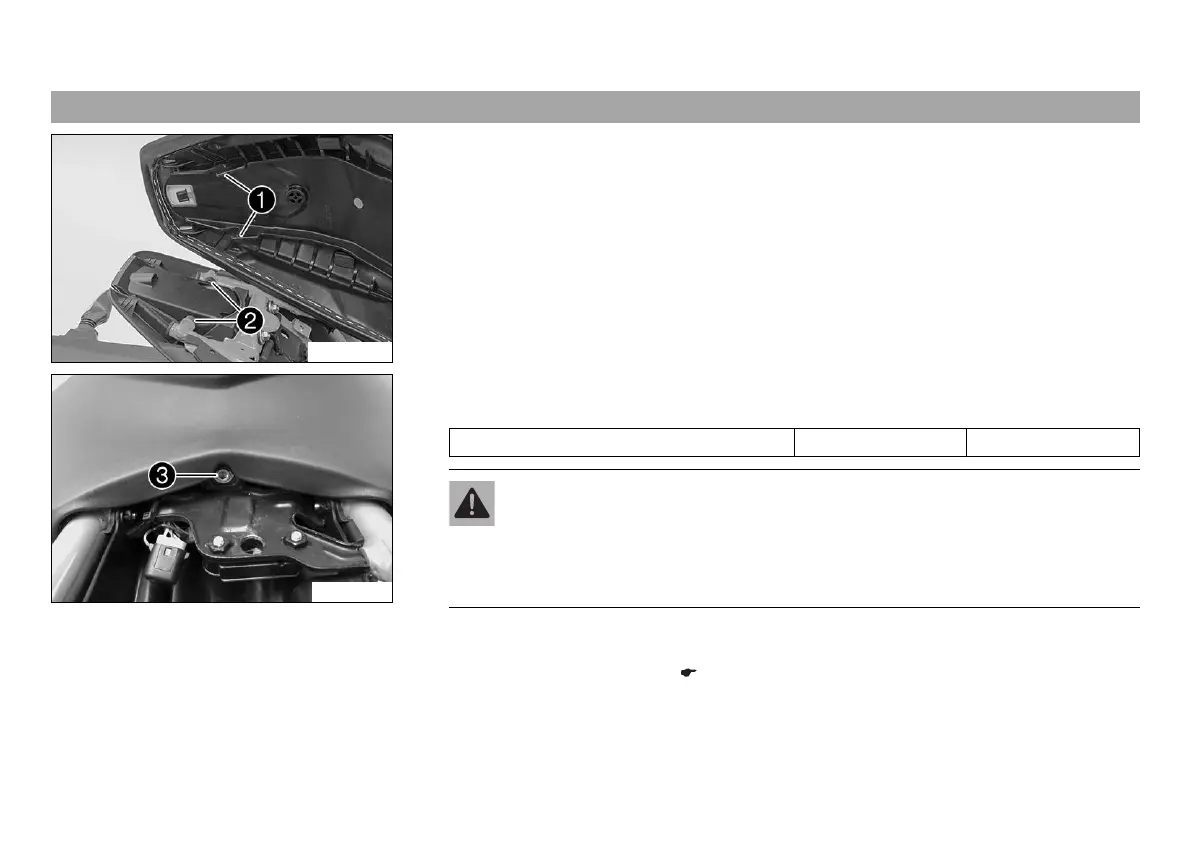

M00449-10
Main work
–
Attach hook
into bracket
.
– Lower the passenger seat and push back.
L02191-11
–
Mount and tighten screw
with the washer.
Guideline
Screw, passenger seat M6 7 Nm (5.2 lbf ft)
Warning
Danger of accidents The passenger seat can come loose from the anchoring if it
is not mounted correctly.
– After mounting the passenger seat, check that it is locked correctly by
pulling up.
– Check that the passenger seat is correctly mounted.
Finishing work
– Mount the front rider's seat. ( p. 82)
