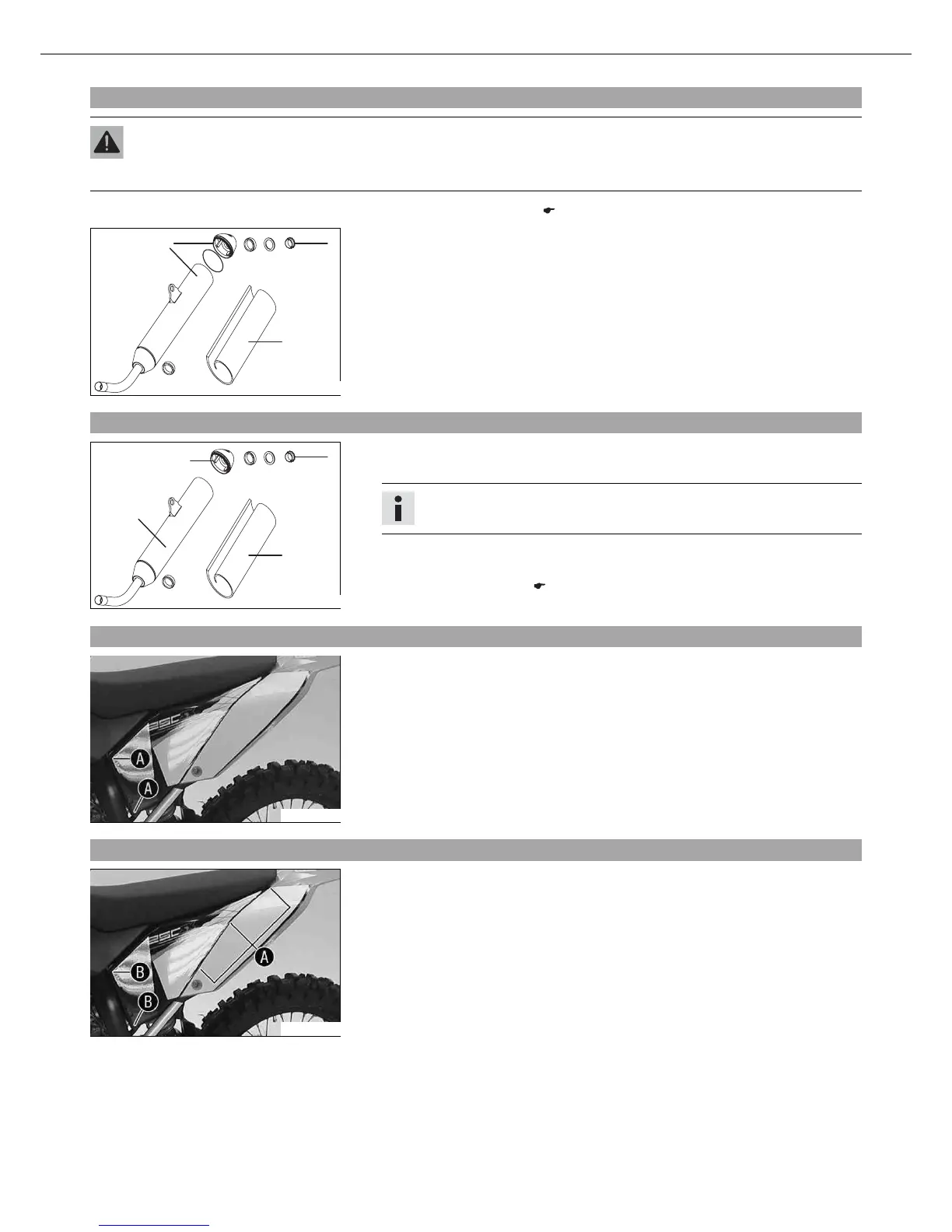

MAINTENANCE WORK ON CHASSIS AND ENGINE 62
9.87Removing the glass fiber yarn filling of the main silencer x
Warning
Danger of burns The exhaust system gets very hot when the vehicle is driven.
– Allow the exhaust system to cool down. Do not touch hot components.
– Remove the main silencer. ( p. 61)
0
0
33
0
0
22
0
0
11
B00037-10
– Remove nut .
– Remove the locking cap and outer tube .
– Pull the glass fiber yarn filling  from the inner tube.
– Clean the parts that are to be reinstalled.
9.88Installing the glass fiber yarn filling of the main silencer x
0
0
33
0
0
44
0
0
22
0
0
11
B00074-10
– Slide the glass fiber yarn filling  over the inner tube.
– Slide the outer tube  over the glass fiber yarn filling.
Info
Ensure that the O-rings are seated properly.
– Insert locking cap  into the outer tube.
– Mount and tighten nut .
– Install the main silencer. ( p. 61)
9.89Removing the air filter box lid
B00038-10
– Pull off the air filter box lid in area  sideways and remove it toward the front.
9.90Installing the air filter box lid
B00038-11
– Insert the air filter box lid into the rear area  and clip it into the front area .
