KTM 300 EXC TPI 2019 User Manual

BRAKE SYSTEM 13
105
Info
Clean up overflowed or spilled brake fluid immediately
with water.

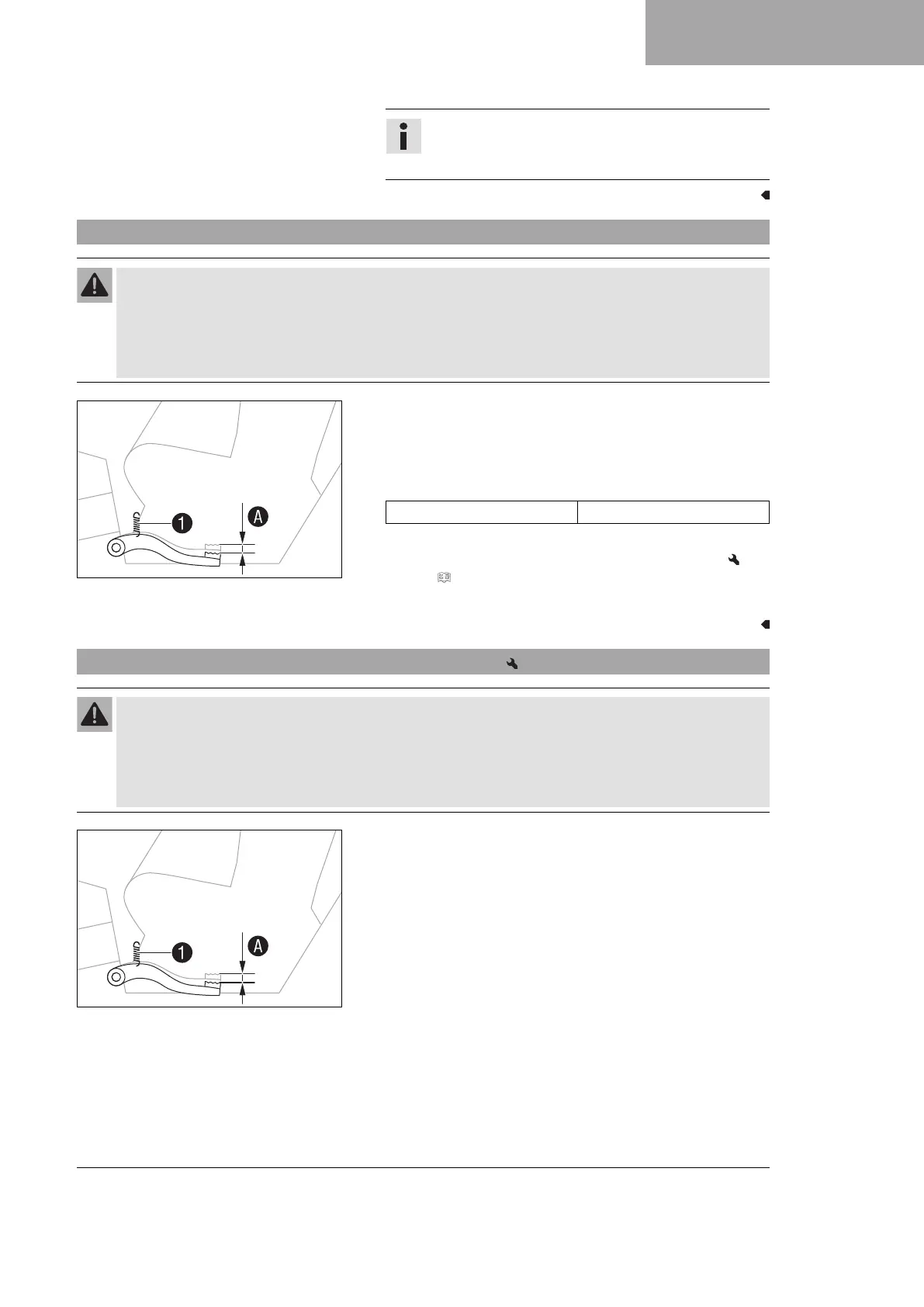

13.9 Checking the free travel of foot brake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the foot brake lever, pressure builds up in the brake system on the rear
brake.
– Set the free travel on the foot brake lever in accordance with the specification.
402026-10
–
Disconnect spring
1
.
– Move the foot brake lever back and forth between the end stop
and the contact to the foot brake cylinder piston and check
free travel
A
.
Guideline
Free travel at foot brake lever 3 … 5 mm (0.12 … 0.2 in)
» If the free travel does not meet specifications:
– Adjust the basic position of the foot brake lever.
( p. 105)
–
Reconnect spring
1
.
13.10 Adjusting the basic position of the foot brake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the foot brake lever, pressure builds up in the brake system on the rear
brake.
– Set the free travel on the foot brake lever in accordance with the specification.
402026-10
–
Disconnect spring
1
.

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
