12 SERVICE WORK ON THE CHASSIS
94

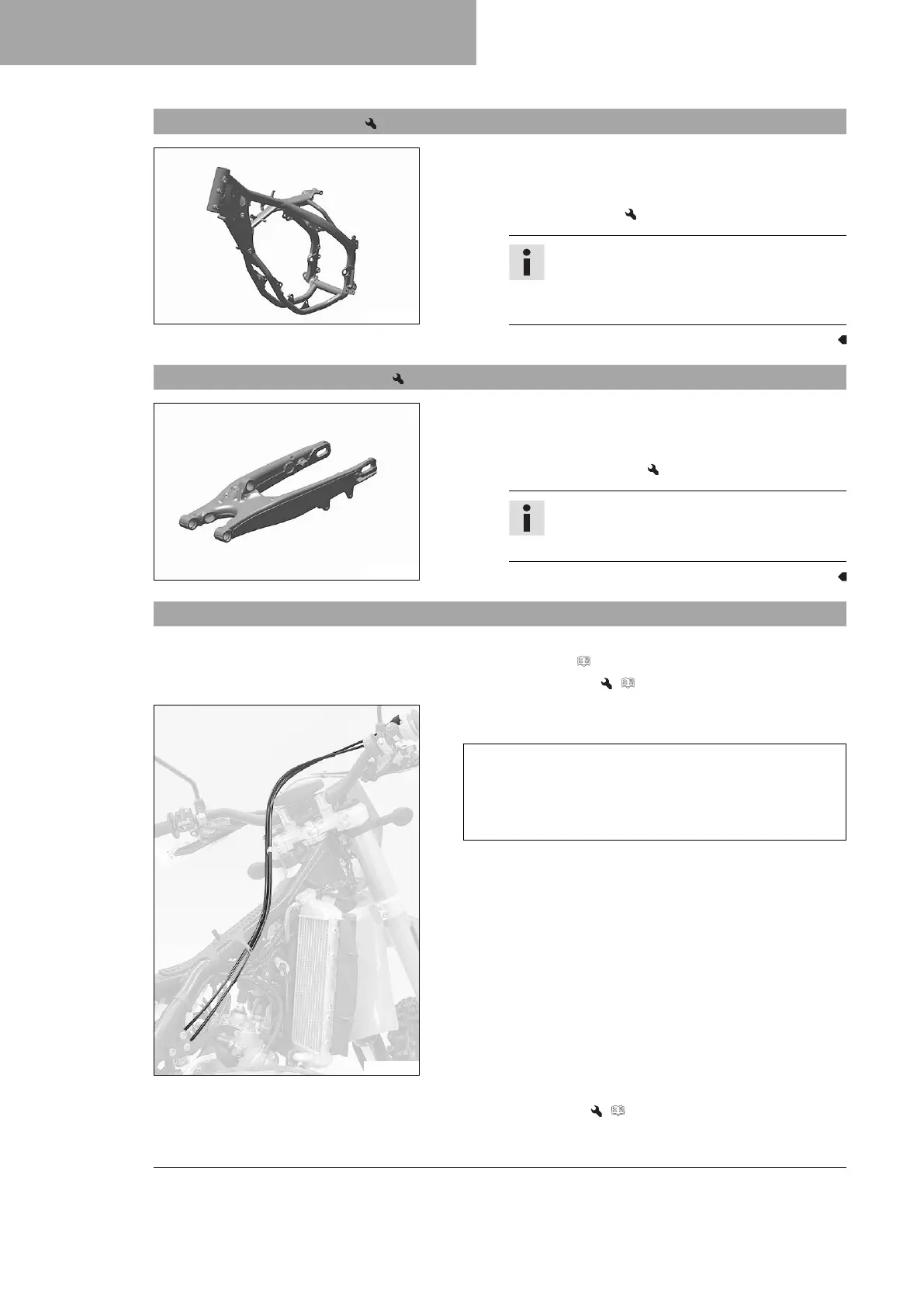

12.39 Checking the frame
S01316-10
– Check the frame for cracks and deformation.
» If the frame exhibits cracks or deformation due to a
mechanical impact:
– Change the frame.
Info
Always replace a frame that has been dam-
aged due to a mechanical impact. Repair of the
frame is not authorized by KTM.
12.40 Checking the swingarm
S01317-10
– Check the swingarm for damage, cracking, and deformation.
» If the swingarm shows signs of damage, cracking, or defor-
mation:
– Change the swingarm.
Info
Always change a damaged swingarm. Repair of
the swingarm is not authorized by KTM.
12.41 Checking throttle cable routing
Preparatory work
– Remove the seat. ( p. 80)
– Remove the fuel tank. ( p. 85)
E01230-01
Main work
– Check throttle cable routing.
Both throttle cables must be routed, side by side, on the
back of the handlebars, above the fuel tank bracket on the
right of the frame to the throttle valve body. Both throttle
cables must be secured behind the fuel tank contact area
rubber band.
» If the throttle cable routing is not as specified:
– Correct throttle cable routing.
Finishing work
– Install the fuel tank. ( p. 87)

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
