KTM 300 EXC TPI 2019 User Manual

TUNING THE CHASSIS 11
61

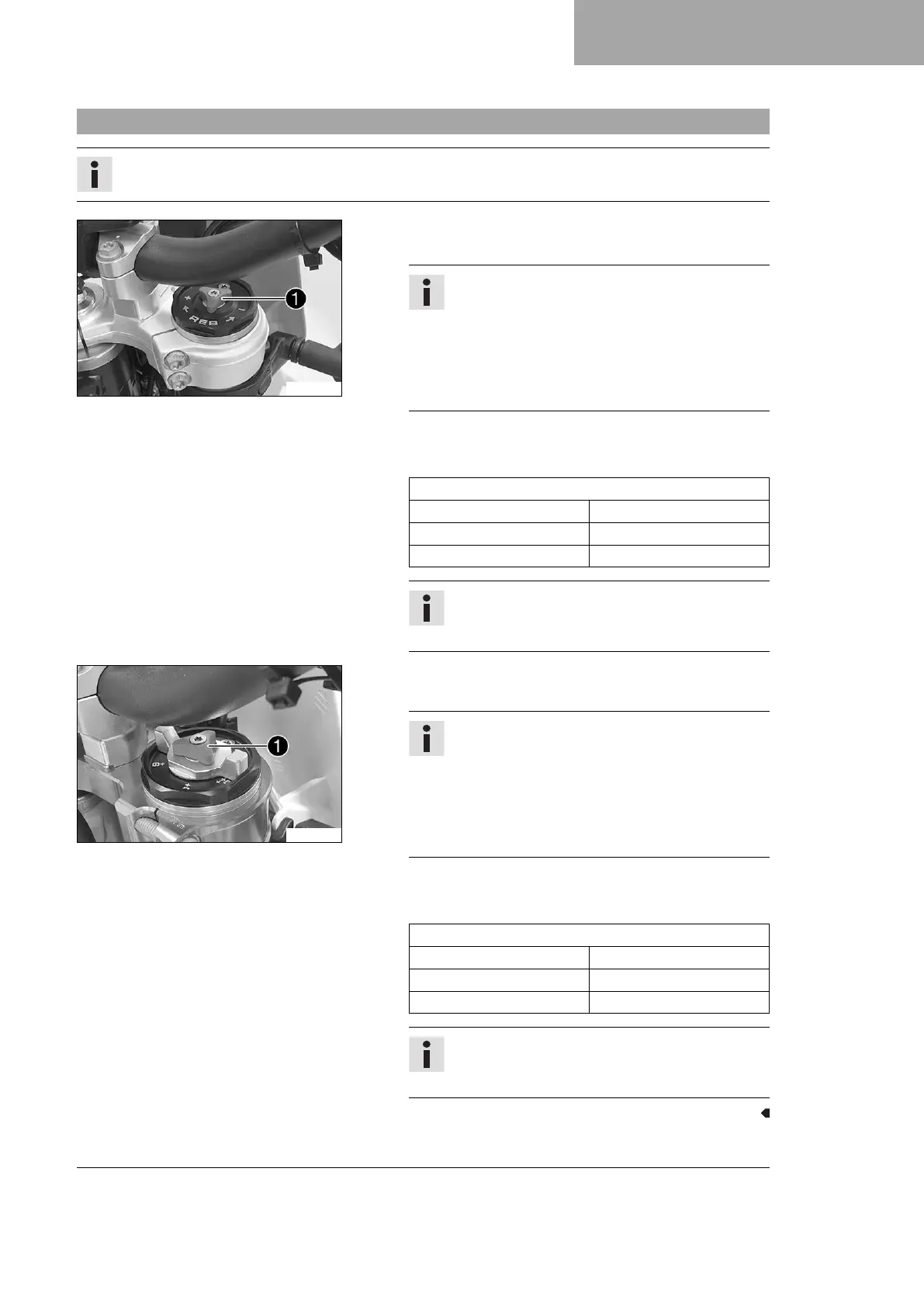

11.13 Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
E00326-10
(All standard EXC/XC-W models)
–
Turn red adjusting screw
1
clockwise as far as it will go.
Info
Adjusting screw
1
is located at the upper end of
the right fork leg.
The rebound damping is located in right fork
leg REB (red adjusting screw). The compression
damping is located in left fork leg COMP (white
adjusting screw).
– Turn counterclockwise by the number of clicks correspond-
ing to the fork type.
Guideline
Rebound damping
Comfort 18 clicks
Standard 15 clicks
Sport 12 clicks
Info
Turn clockwise to increase damping; turn counter-
clockwise to reduce damping.
E00325-10
(All Six Days models)
–
Turn red adjusting screw
1
clockwise as far as it will go.
Info
Adjusting screw
1
is located at the upper end of
the right fork leg.
The rebound damping is located in right fork
leg REB (red adjusting screw). The compression
damping is located in left fork leg COM (white
adjusting screw).
– Turn counterclockwise by the number of clicks correspond-
ing to the fork type.
Guideline
Rebound damping
Comfort 18 clicks
Standard 15 clicks
Sport 12 clicks
Info
Turn clockwise to increase damping; turn counter-
clockwise to reduce damping.
