KTM 300 EXC TPI 2019 User Manual

ELECTRICAL SYSTEM 15
121

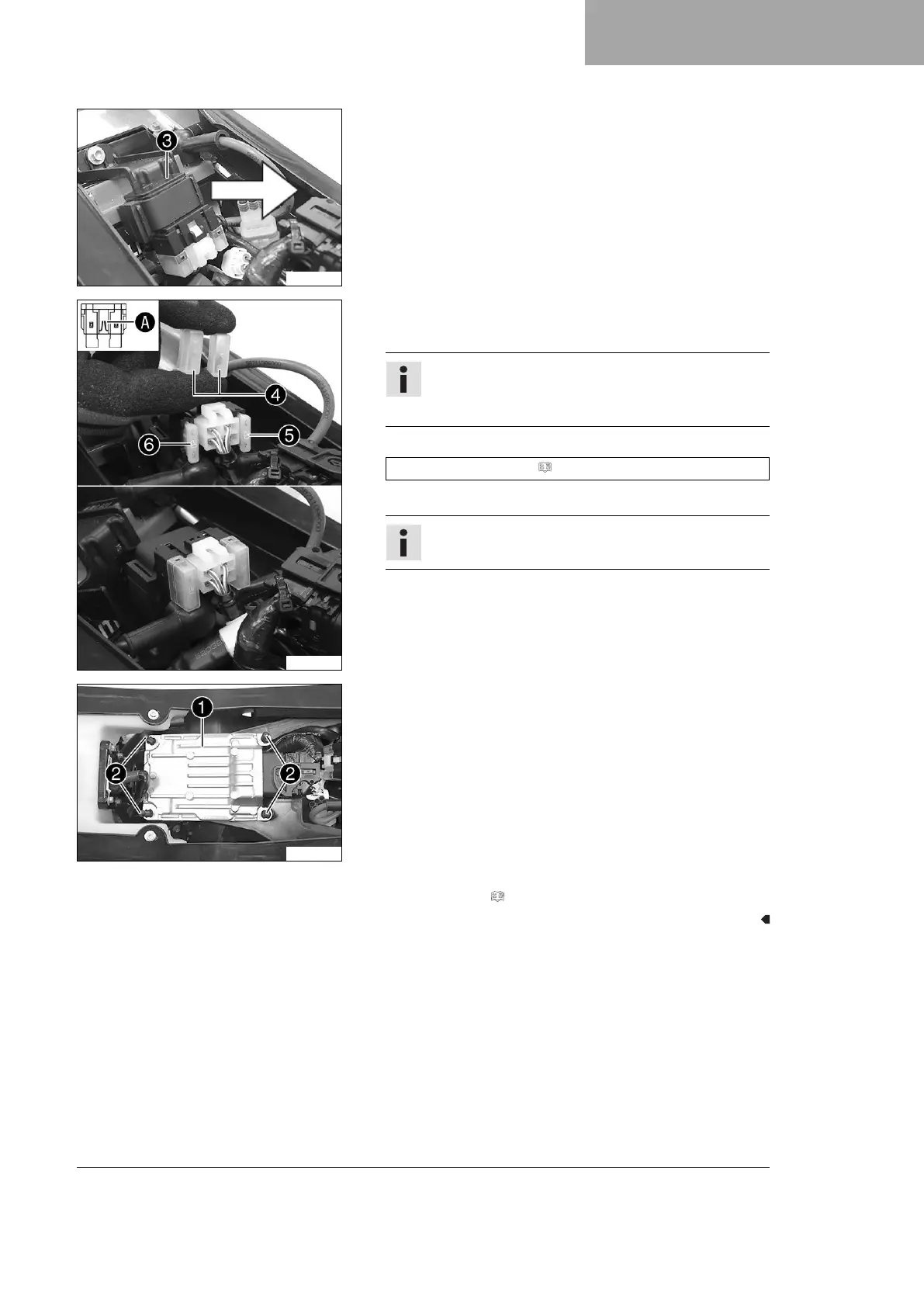

E00897-10
–
Pull starter relay
3
from the holder.
E00898-10
–
Take off protection caps
4
.
–
Remove faulty main fuse
5
.
Info
A faulty fuse has a burned-out fuse wire
A
.
A spare fuse
6
is located in the starter relay.
– Install a new main fuse.
Fuse (58011109120) ( p. 157)
– Check that the electrical system is functioning properly.
Tip
Insert a spare fuse so that it is available if needed.
–
Attach the protection caps
4
.
–
Mount the starter relay
3
onto the holder and route the
cable.
E00874-10
–
Mount the EFI control unit
1
on the rubber lugs
2
.
Finishing work
– Mount the seat. ( p. 80)

KTM 300 EXC TPI 2019 Specifications

General

Displacement	293.2 cm³
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel Tank Capacity	9.5 liters
Engine Type	2-stroke
Fuel System	Transfer Port Injection (TPI)
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake 220 mm
