13.7 Checking spoke tension
Warning
Danger of accidents Incorrectly tensioned spokes impair the handling characteristic and result in sec-
ondary damage.
The spokes break due to being overloaded if they are too tightly tensioned. If the tension in the spokes
is too low, then lateral and radial run-out will form in the wheel. Other spokes will become looser as a
result.
– Check spoke tension regularly, and in particular on a new vehicle. (Your authorized KTM workshop will
be glad to help.)
400694-01

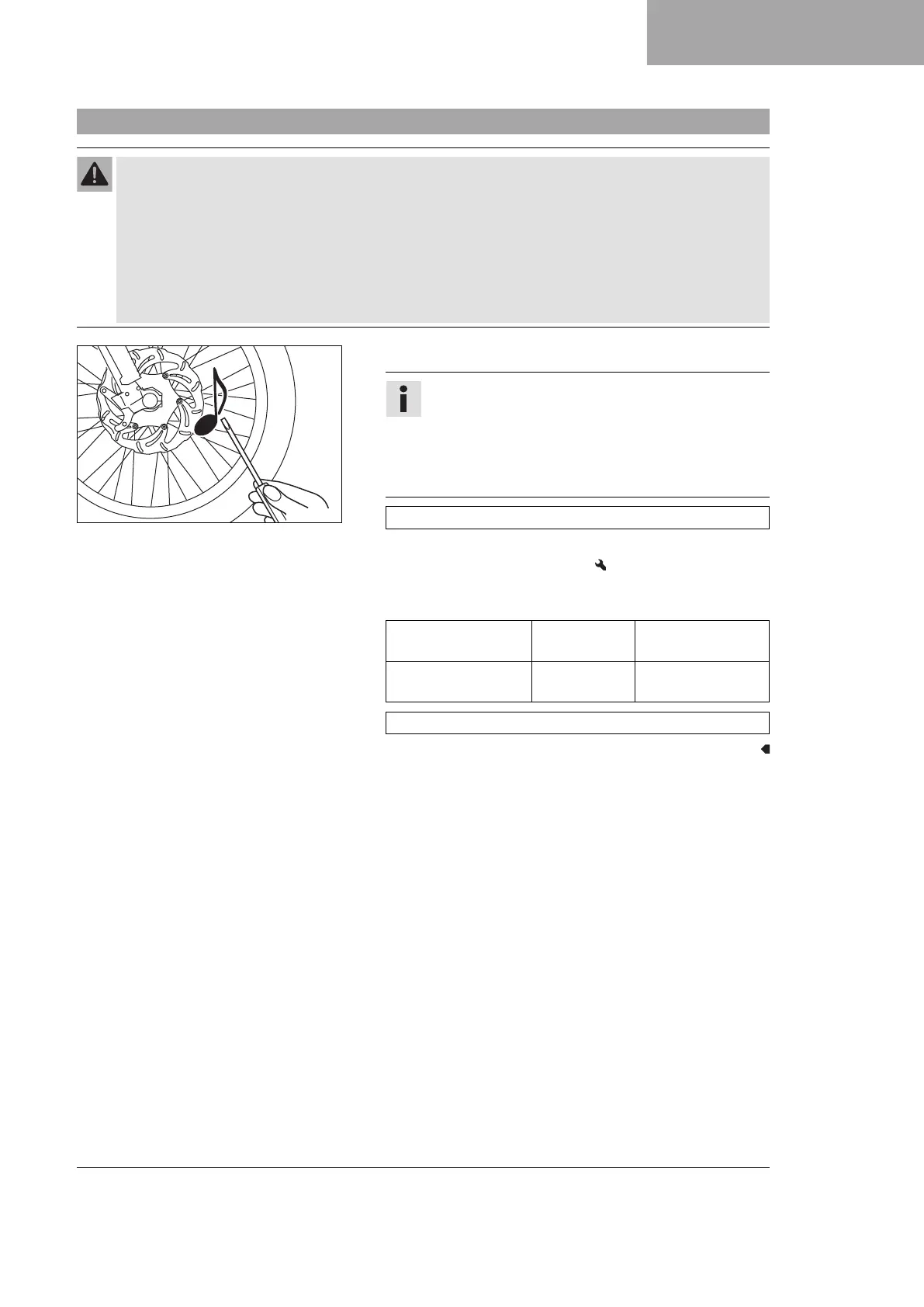

– Strike each spoke briefly using a screwdriver blade.
Info
The frequency of the sound depends on the spoke
length and spoke diameter.
If you hear different tone frequencies from different
spokes of equal length and diameter, this is an indica-
tion of different spoke tensions.
You should hear a high note.
» If the spoke tension differs:
– Correct the spoke tension.
– Check the spoke torque.
Guideline
Spoke nipple, front
wheel
M4.5 6 Nm (4.4 lbf ft)
Spoke nipple, rear
wheel
M4.5 6 Nm (4.4 lbf ft)
Torque wrench set (58429094000)

KTM 350 SX-F Specifications

General

Displacement	349.7 cc
Bore x Stroke	88 mm x 57.5 mm
Starter	Electric starter
Transmission	5-speed
Cooling	Liquid cooled
Frame	Central Double-Cradle Type 25CrMo4 Steel
Front Suspension	WP XACT-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Front Brake	Disc brake
Rear Brake	Disc brake
Ground Clearance	370 mm
Seat Height	950 mm
Ignition	Keihin EMS
Final Drive	Chain
Engine Type	Single-cylinder, 4-stroke
Fuel Tank Capacity	7.2 L
