KTM 350 SX-F User Manual

10 TUNING THE CHASSIS
42
402415-10

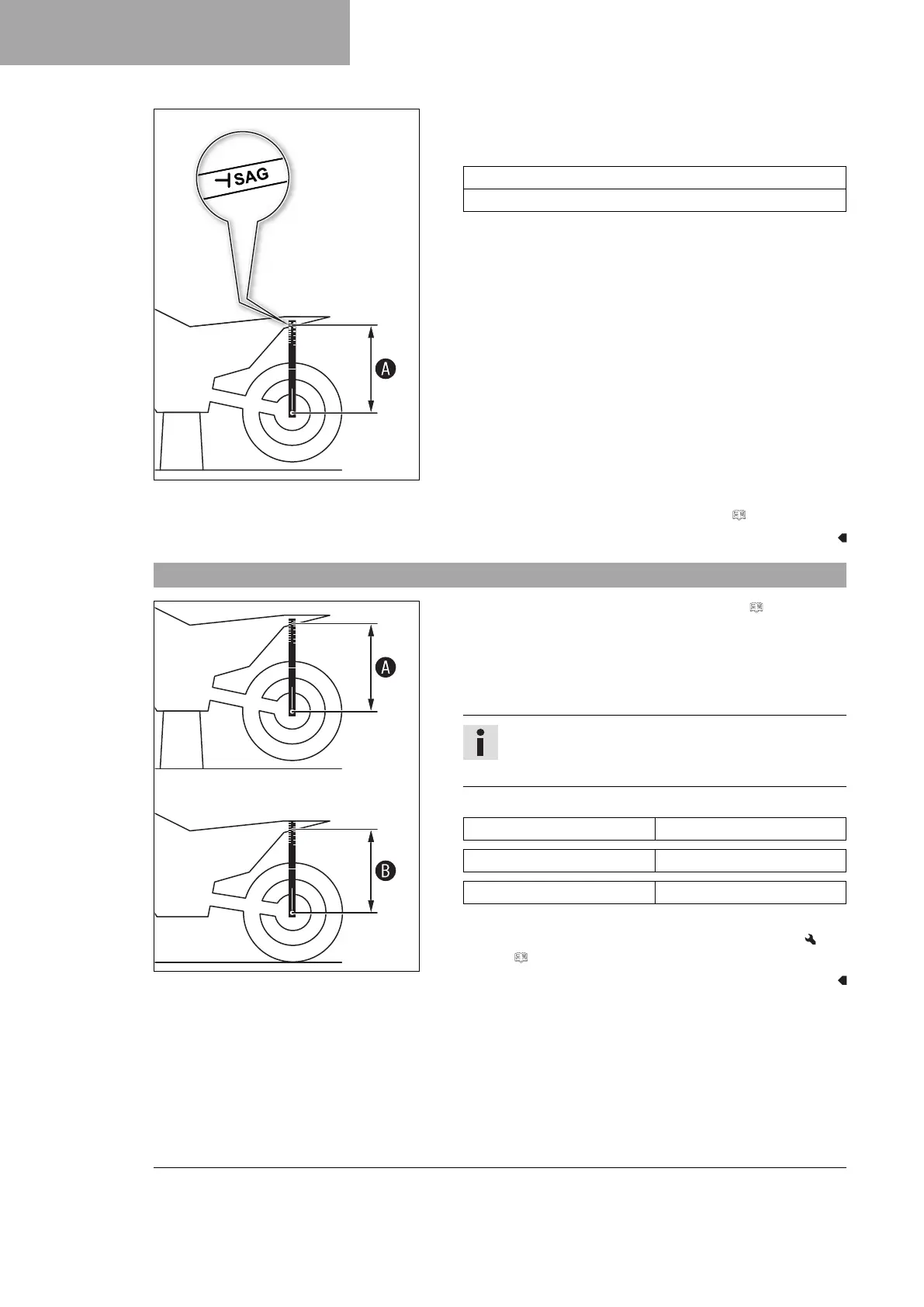

Main work
– Position the sag gauge in the rear axle and measure the
distance to marking SAG on the rear fender.
Sag gauge (00029090000)
Pin for sag gauge (00029990010)
–
Note down the value as dimension
A
.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 50)
10.8 Checking the static sag of the shock absorber
402416-10
–
Measure distance
A
of rear wheel unloaded. ( p. 41)
– Hold the motorcycle upright with the aid of an assistant.
– Again measure the distance between the rear axle and mark-
ing SAG on the rear fender using the sag gauge.
–
Note down the value as dimension
B
.
Info
The static sag is the difference between
measurements
A
and
B
.
– Check the static sag.
Static sag (SX‑F EU) 35 mm (1.38 in)
Static sag (SX‑F US) 35 mm (1.38 in)
Static sag (XC‑F US) 35 mm (1.38 in)
» If the static sag is less or more than the specified value:
– Adjust the spring preload of the shock absorber.
( p. 43)

KTM 350 SX-F Specifications

General

Displacement	349.7 cc
Bore x Stroke	88 mm x 57.5 mm
Starter	Electric starter
Transmission	5-speed
Cooling	Liquid cooled
Frame	Central Double-Cradle Type 25CrMo4 Steel
Front Suspension	WP XACT-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Front Brake	Disc brake
Rear Brake	Disc brake
Ground Clearance	370 mm
Seat Height	950 mm
Ignition	Keihin EMS
Final Drive	Chain
Engine Type	Single-cylinder, 4-stroke
Fuel Tank Capacity	7.2 L
