17 SERVICE WORK ON THE ENGINE
116

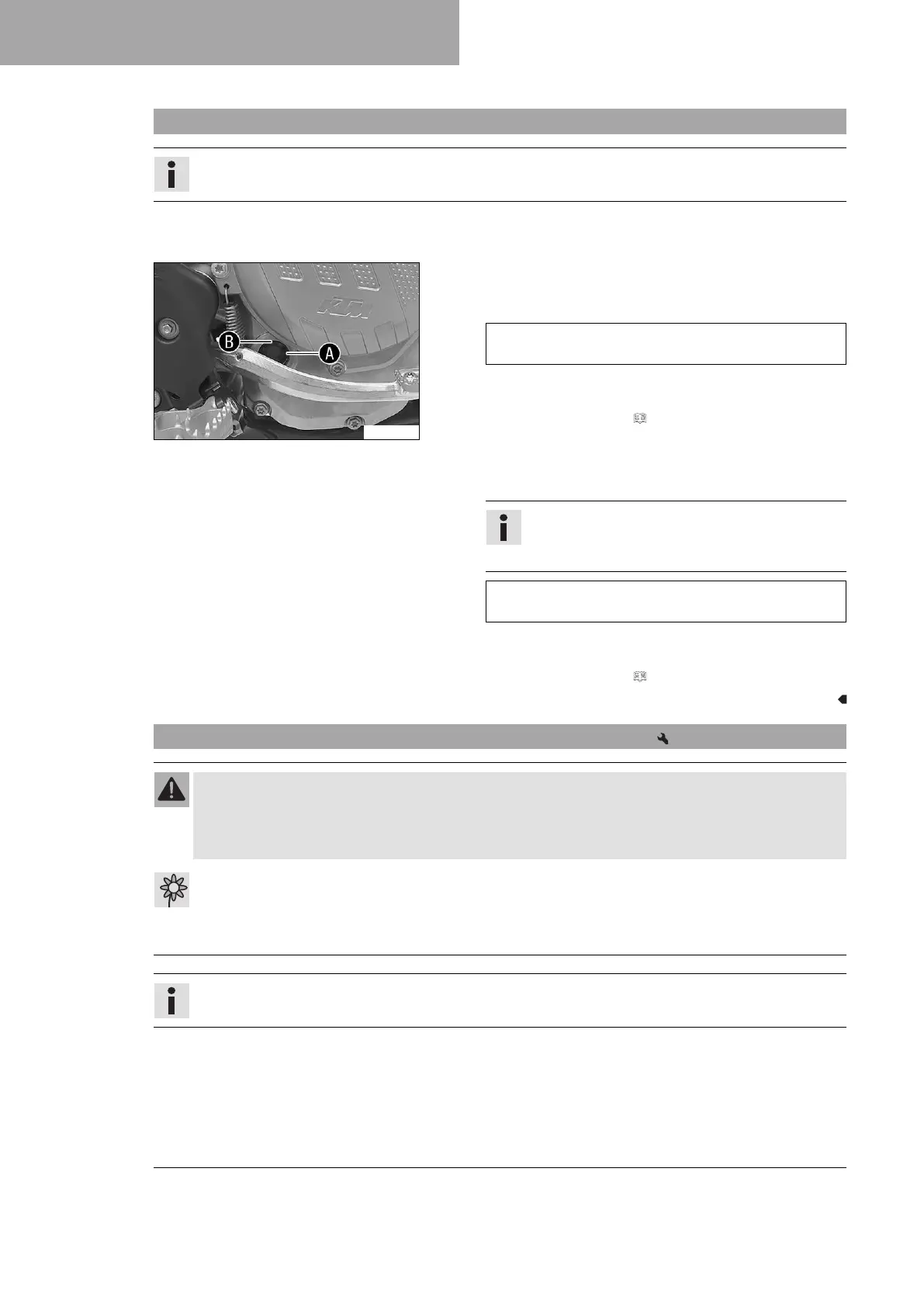

17.2 Checking the engine oil level
Info
The engine oil level can be checked when the engine is cold or warm.
Preparatory work
– Stand the motorcycle upright on a horizontal surface.
E01239-10
Condition
The engine is cold.
– Check the engine oil level.
The engine oil level reaches the middle of sight
glass
A
.
» If the engine oil does not reach the middle of the sight
glass:
– Add engine oil. ( p. 119)
Condition
The engine is at operating temperature.
– Check the engine oil level.
Info
After switching off the engine, wait one minute
before checking the level.
The engine oil level is between the middle of the level
viewer
A
and the upper edge of the level viewer
B
.
» If the engine oil does not reach the middle of the level
viewer
A
:
– Add engine oil. ( p. 119)
17.3 Changing the engine oil and oil filter, cleaning the oil screen
Warning
Danger of scalding Engine and gear oil get very hot when the motorcycle is ridden.
– Wear suitable protective clothing and safety gloves.
– In the event of scalding, rinse the area affected immediately with lukewarm water.
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Info
Drain the engine oil while the engine is at operating temperature.
Preparatory work
– Park the motorcycle on a level surface.
