11 SERVICE WORK ON THE CHASSIS
60

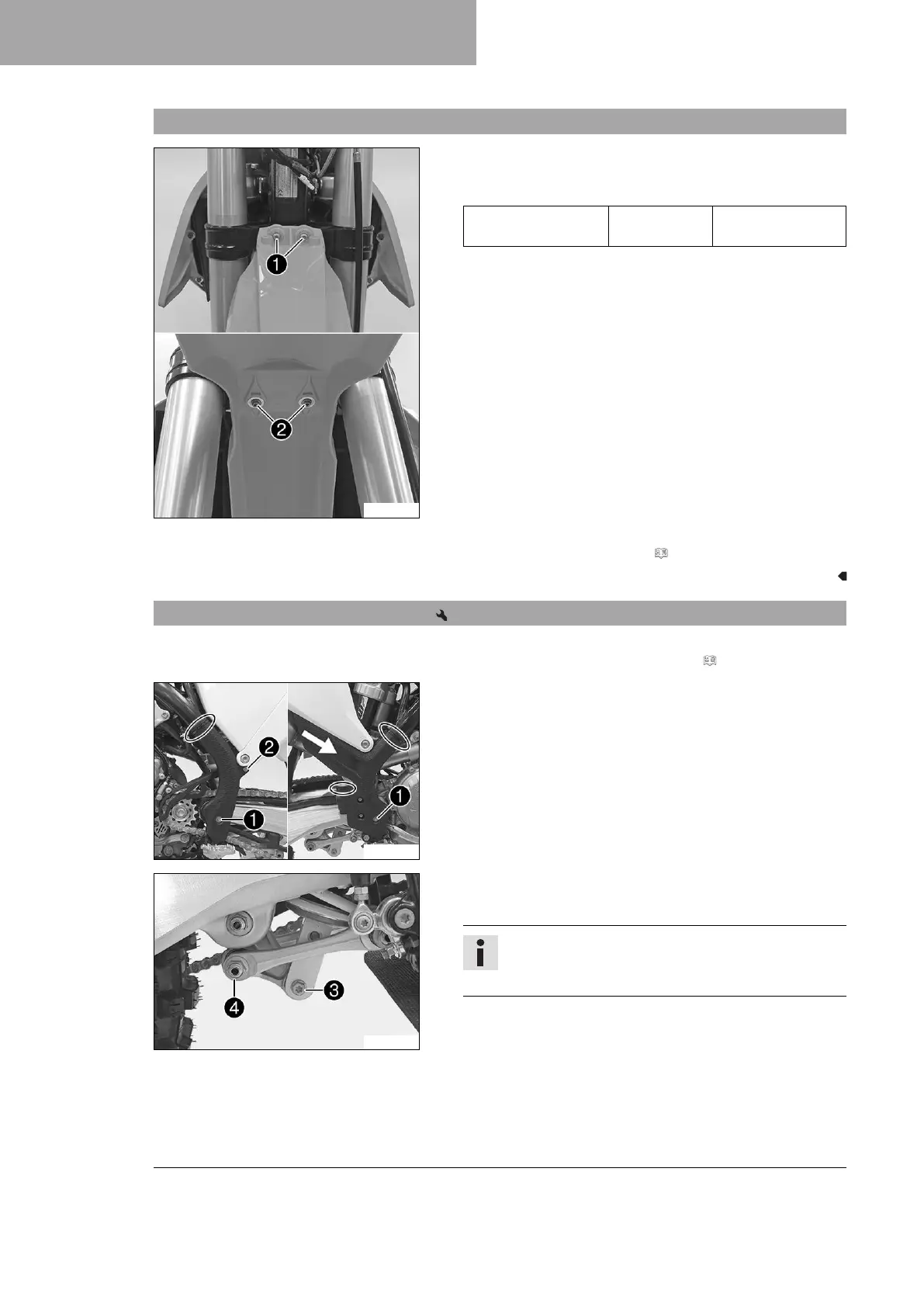

11.17 Installing front fender
F01526-10
Main work
–
Position front fender. Mount and tighten screws
1
and
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the start number plate. ( p. 59)
11.18 Removing the shock absorber
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 50)
F01581-10
Main work
– Remove the cable ties.
–
Remove screws
1
with the washers.
–
Remove screw
2
.
– Take off the left frame protector.
– Push the right frame protector to the front and take off at the
bottom.
S01220-10
–
Remove screw
3
.
–
Remove fitting
4
.
Info
Raise the wheel slightly to be able to remove the screws
more easily.

KTM 350 SX-F Specifications

General

Displacement	349.7 cc
Bore x Stroke	88 mm x 57.5 mm
Starter	Electric starter
Transmission	5-speed
Cooling	Liquid cooled
Frame	Central Double-Cradle Type 25CrMo4 Steel
Front Suspension	WP XACT-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Front Brake	Disc brake
Rear Brake	Disc brake
Ground Clearance	370 mm
Seat Height	950 mm
Ignition	Keihin EMS
Final Drive	Chain
Engine Type	Single-cylinder, 4-stroke
Fuel Tank Capacity	7.2 L
