KTM 350 SX-F User Manual

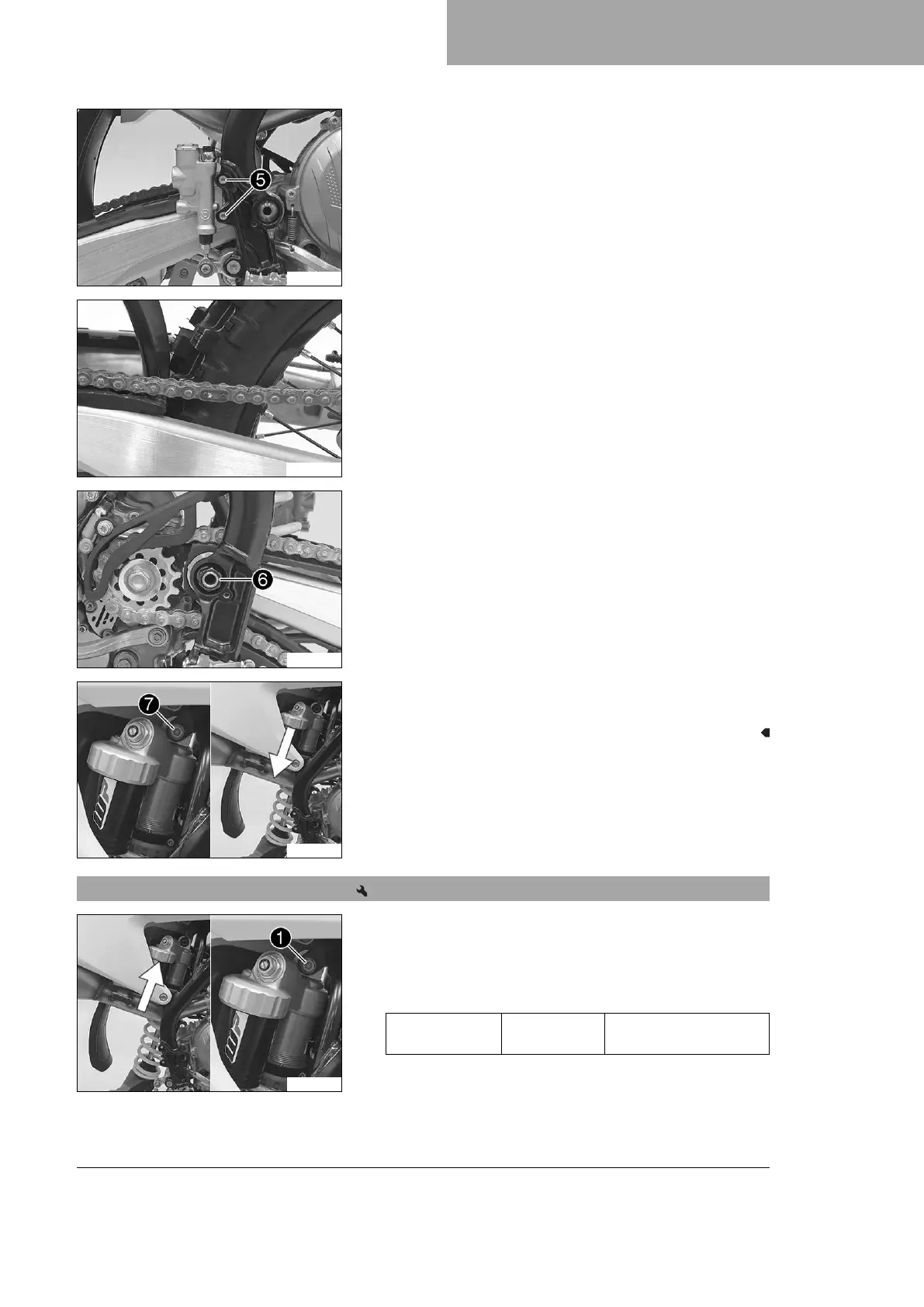

SERVICE WORK ON THE CHASSIS 11
61
F01582-10
–
Remove screws
5
.
– Pull off foot brake cylinder from the push rod.
S01222-10
– Remove the connecting link of the chain.
– Take off the chain.
F01583-10
–
Remove nut
6
and pull out the swingarm pivot.
– Push the swingarm back and secure it against falling over.
F01584-10
–
Hold the shock absorber and remove screw
7
.
– Remove the shock absorber carefully at the bottom.
11.19 Installing the shock absorber
F01585-10
Main work
– Carefully position the shock absorber into the vehicle from the
bottom.
–
Mount and tighten screw
1
.
Guideline
Screw, top
shock absorber
M10 60 Nm (44.3 lbf ft)
Loctite
®
2701™

KTM 350 SX-F Specifications

General

Displacement	349.7 cc
Bore x Stroke	88 mm x 57.5 mm
Starter	Electric starter
Transmission	5-speed
Cooling	Liquid cooled
Frame	Central Double-Cradle Type 25CrMo4 Steel
Front Suspension	WP XACT-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Front Brake	Disc brake
Rear Brake	Disc brake
Ground Clearance	370 mm
Seat Height	950 mm
Ignition	Keihin EMS
Final Drive	Chain
Engine Type	Single-cylinder, 4-stroke
Fuel Tank Capacity	7.2 L
