KTM 450 SX-F 2019 User Manual

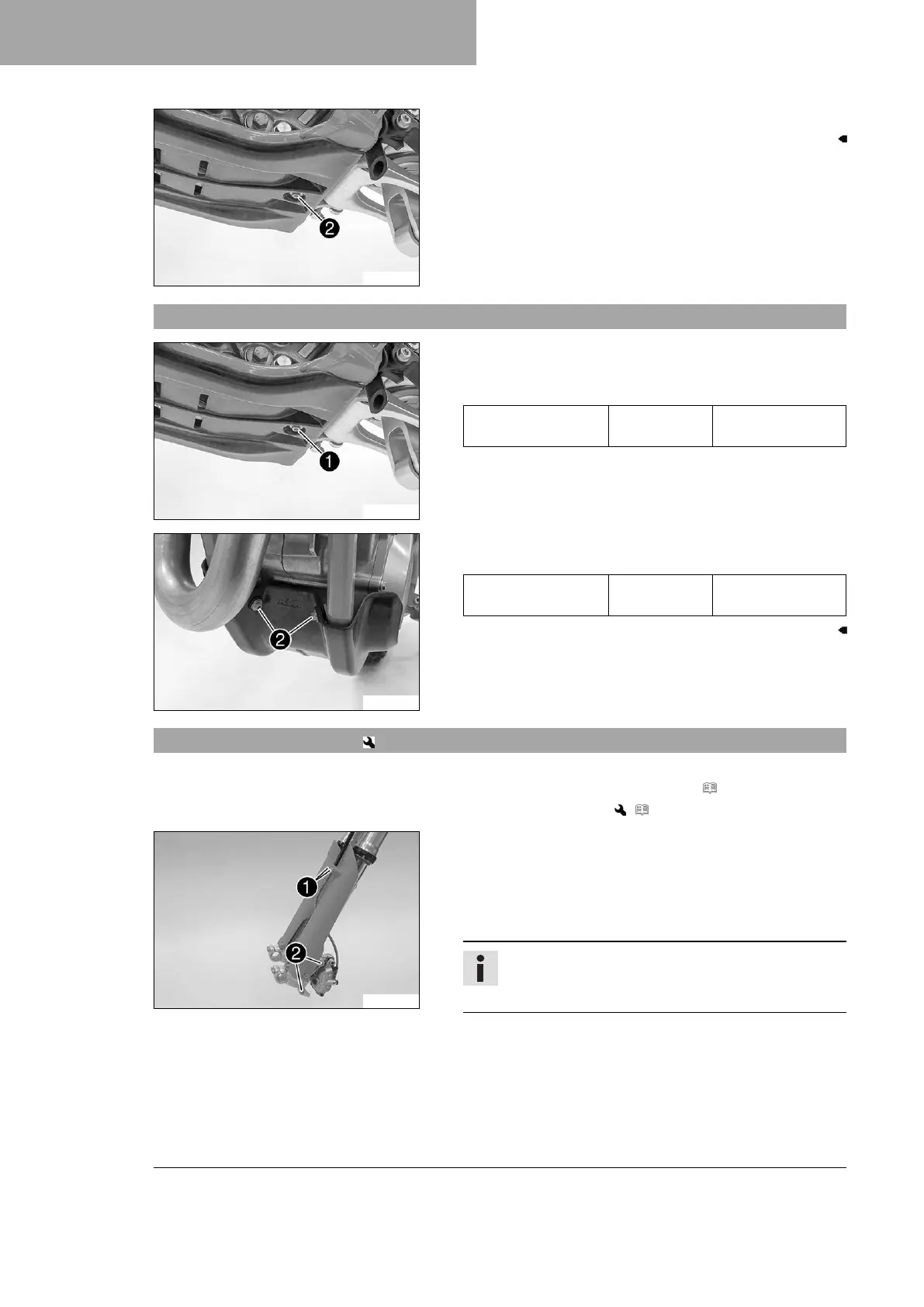

11 SERVICE WORK ON THE CHASSIS
56
K01030-10
–
Remove screw
2
. Remove the engine guard.
11.8 Installing the engine guard (HERLINGS REPLICA, FACTORY EDITION)
K01030-11
– Position the engine guard on the frame.
–
Mount and tighten screw
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
K01029-11
–
Mount and tighten screws
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
11.9 Removing fork legs
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 53)
– Remove the front wheel. ( p. 102)
K01014-10
Main work
–
Remove screws
1
and take off the clamp.
–
Remove screws
2
and take off the brake caliper.
– Allow the brake caliper and brake line to hang loosely to the
side.
Info
Do not actuate the hand brake lever when the front
wheel is removed.

KTM 450 SX-F 2019 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	449.9 cc
Bore x Stroke	95 mm x 63.4 mm
Starter	Electric starter
Transmission	5-speed
Fuel System	Keihin EFI, 44 mm throttle body
Cooling	Liquid cooled
Ground Clearance	370 mm
Compression Ratio	12.75:1
Ignition	Keihin EMS
Rear Suspension	WP Shock with Linkage
Front Brake	Single Disc
Rear Brake	Single Disc
Fuel Tank Capacity	7 liters
Seat Height	950 mm
Final Drive	Chain
Front Brake Caliper	Brembo
