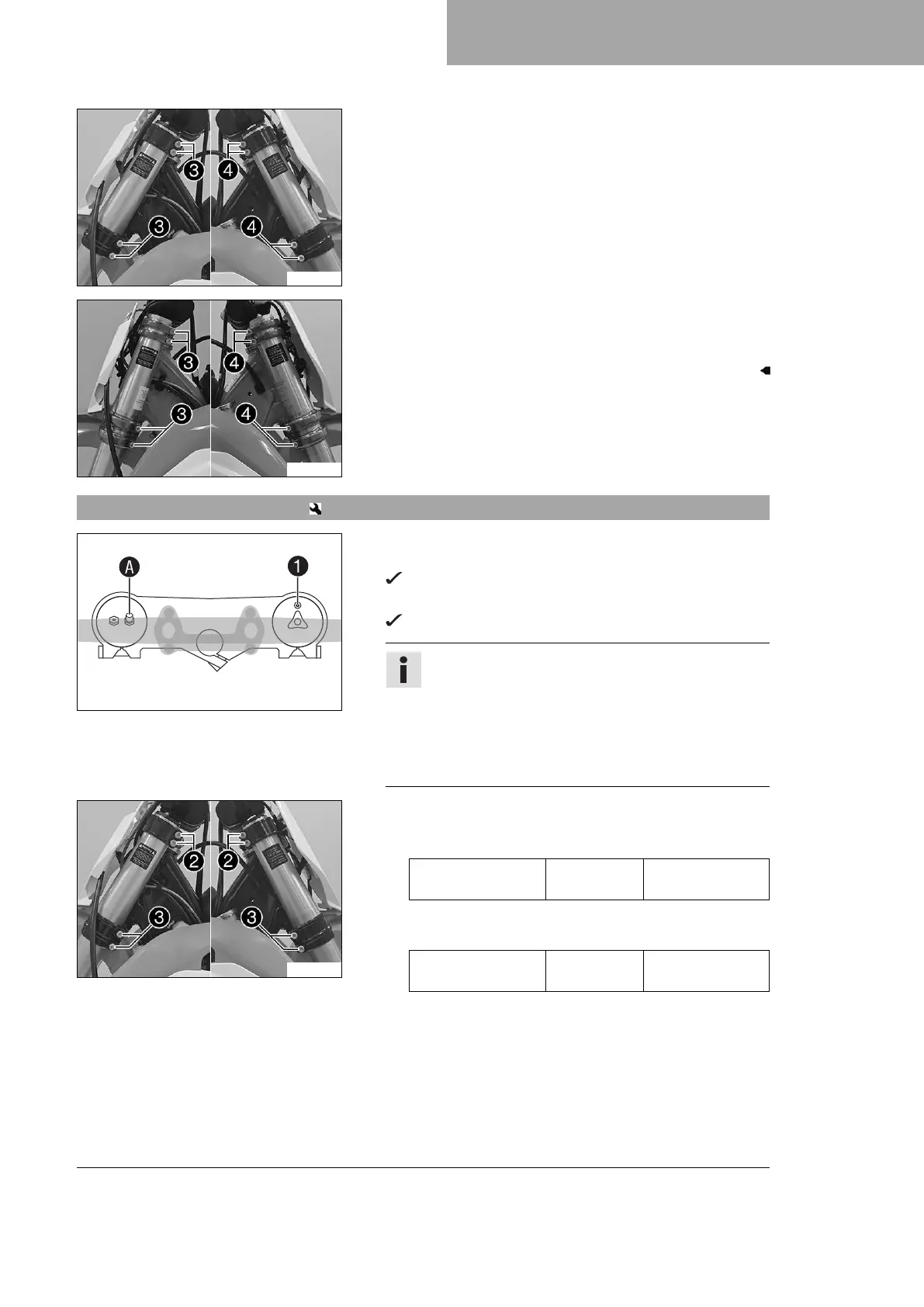

Page #59 background image
SERVICE WORK ON THE CHASSIS 11
57
F01559-10
(All SXF standard models, XCF US)
Loosen screws
3
. Take out the left fork leg.
Loosen screws
4
. Take out the right fork leg.
F01832-10
(HERLINGS REPLICA, FACTORY EDITION)
Loosen screws
3
. Take out the left fork leg.
Loosen screws
4
. Take out the right fork leg.
11.10 Installing the fork legs
H01182-10
Main work
Position the fork legs.
Air bleeder screw
1
of the right fork leg is positioned to
the front.
Valve
A
of the left fork leg faces the front.
Info
Grooves are milled into the side of the upper end of the
fork legs. The second milled groove (from the top) must
be flush with the upper edge of the upper triple clamp.
The air suspension is located in the left fork leg. The
pressure and rebound damping is located in the right
fork leg.
F01559-11
(All SXF standard models, XCF US)
Tighten screws
2
.
Guideline
Screw, top triple
clamp
M8 17 Nm
(12.5 lbf ft)
Tighten screws
3
.
Guideline
Screw, bottom
triple clamp
M8 12 Nm (8.9 lbf ft)
