KTM 450 SX-F 2019 User Manual

11 SERVICE WORK ON THE CHASSIS
68

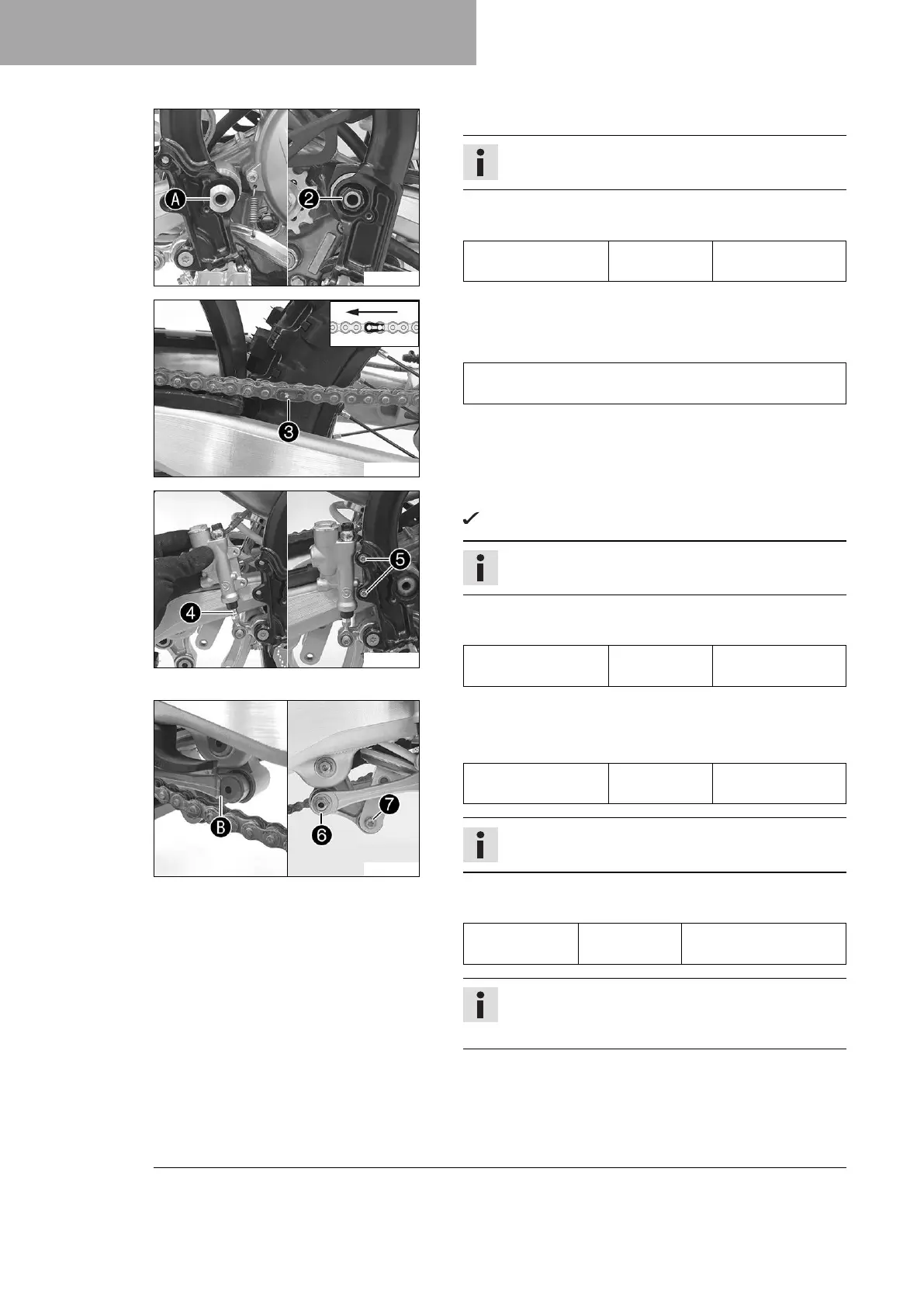

F01532-10
– Position the link fork and mount the fork pivot.
Info
Pay attention to flat area
A
.
–
Mount and tighten nut
2
.
Guideline
Nut, fork pivot M16x1.5 100 Nm
(73.8 lbf ft)
S01222-11
– Mount the chain.
–
Connect the chain with connecting link
3
.
Guideline
The closed side of the chain joint lock must face in the
direction of travel.
F01555-10
– Position the foot brake cylinder.
Push rod
4
engages in the foot brake cylinder.
Info
Ensure that the dust boot is correctly seated.
–
Mount and tighten screws
5
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
S01229-10
– Position the angle lever and linkage lever.
–
Mount and tighten fitting
6
.
Guideline
Nut, linkage lever on
angle lever
M14x1.5 60 Nm (44.3 lbf ft)
Info
Pay attention to flat area
B
.
–
Mount and tighten screw
7
.
Guideline
Screw, bottom
shock absorber
M10 60 Nm (44.3 lbf ft)
Loctite
®
2701™
Info
Raise the wheel slightly to be able to mount the screw
more easily.

KTM 450 SX-F 2019 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	449.9 cc
Bore x Stroke	95 mm x 63.4 mm
Starter	Electric starter
Transmission	5-speed
Fuel System	Keihin EFI, 44 mm throttle body
Cooling	Liquid cooled
Ground Clearance	370 mm
Compression Ratio	12.75:1
Ignition	Keihin EMS
Rear Suspension	WP Shock with Linkage
Front Brake	Single Disc
Rear Brake	Single Disc
Fuel Tank Capacity	7 liters
Seat Height	950 mm
Final Drive	Chain
Front Brake Caliper	Brembo
