OPERATING ELEMENTS 30

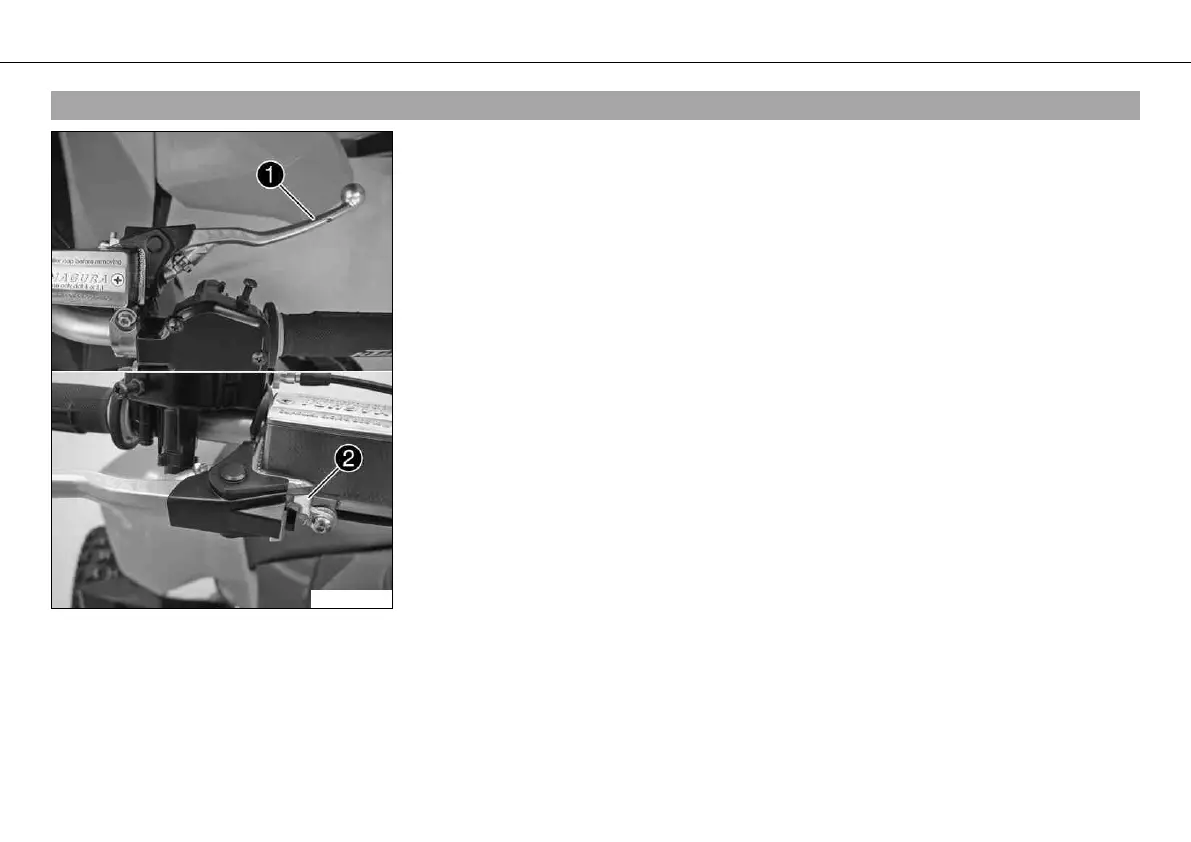

5.3Handbrake lever, parking brake
100006-10
The hand brake lever is located on the right side of the handlebar and operates the front
wheel brakes.
The parking brake is combined with the handbrake lever so that the front wheels can be
blocked to prevent the vehicle from rolling.
To actuate the parking brake, pull the handbrake lever, push the locking pawl down-
wards, and release the handbrake lever.
Possible states
• Handbrake lever in basic position – Front wheels not blocked.
• Handbrake lever pulled and latched – Front wheels blocked.
