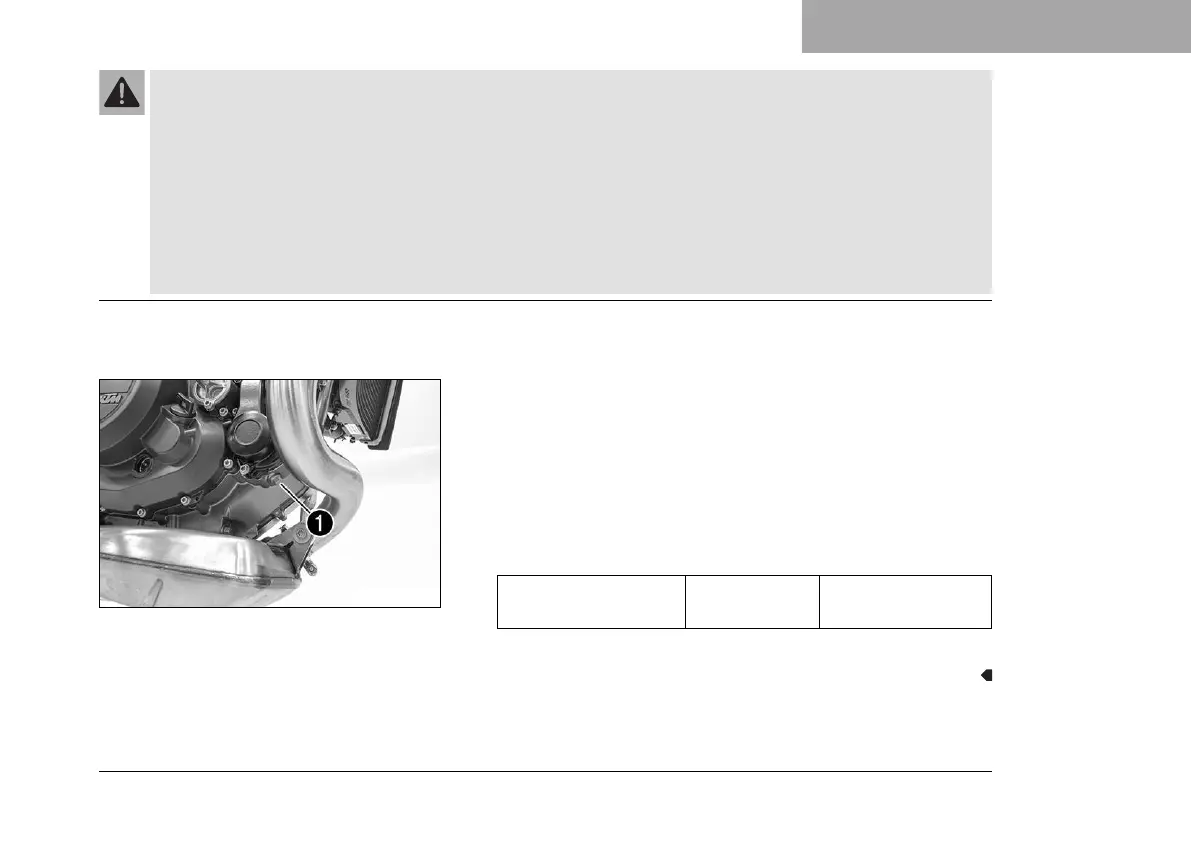

KTM 690 Duke 2018 User Manual

COOLING SYSTEM 16
179
Warning
Danger of poisoning Coolant is toxic and a health hazard.
– Keep coolant out of the reach of children.
– Do not allow coolant to come into contact with the skin, the eyes and clothing.
– Consult a doctor immediately if coolant is swallowed.
– Rinse the affected area immediately with plenty of water in the event of contact with the skin.
– Rinse eyes thoroughly with water and consult a doctor immediately if coolant gets into the eyes.
– Change clothing if coolant spills onto your clothing.
Condition
The engine is cold.
K00379-10
– Position the motorcycle upright.
– Place a suitable container under the engine.
–
Remove screw
1
.
– Remove the radiator cap.
– Completely drain the coolant.
–
Mount and tighten screw
1
with a new seal ring.
Guideline
Plug, drain hole of
water pump
M10x1 15 Nm (11.1 lbf ft)
– Mount the radiator cap.

KTM 690 Duke 2018 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	690 cc
Torque	74 Nm @ 6, 500 rpm
Compression Ratio	12.7:1
Transmission	6-speed
Fuel System	Electronic fuel injection
Cooling System	Liquid cooled
Front Suspension	WP USD Ø 43 mm
Rear Suspension	WP Monoshock
Seat Height	835 mm
Dry Weight	148.5 kg
Fuel Capacity	14 liters
Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Power	73 hp (54 kW) @ 8, 000 rpm
Front Brake	Brembo four-piston radial caliper, 320 mm disc
Rear Brake	Brembo single-piston floating calliper, brake disc Ø 240 mm
ABS	Bosch 9M+ Two Channel ABS
Frame	Chromium-Molybdenum steel trellis frame, powder-coated
