COMBINATION INSTRUMENT 7
55

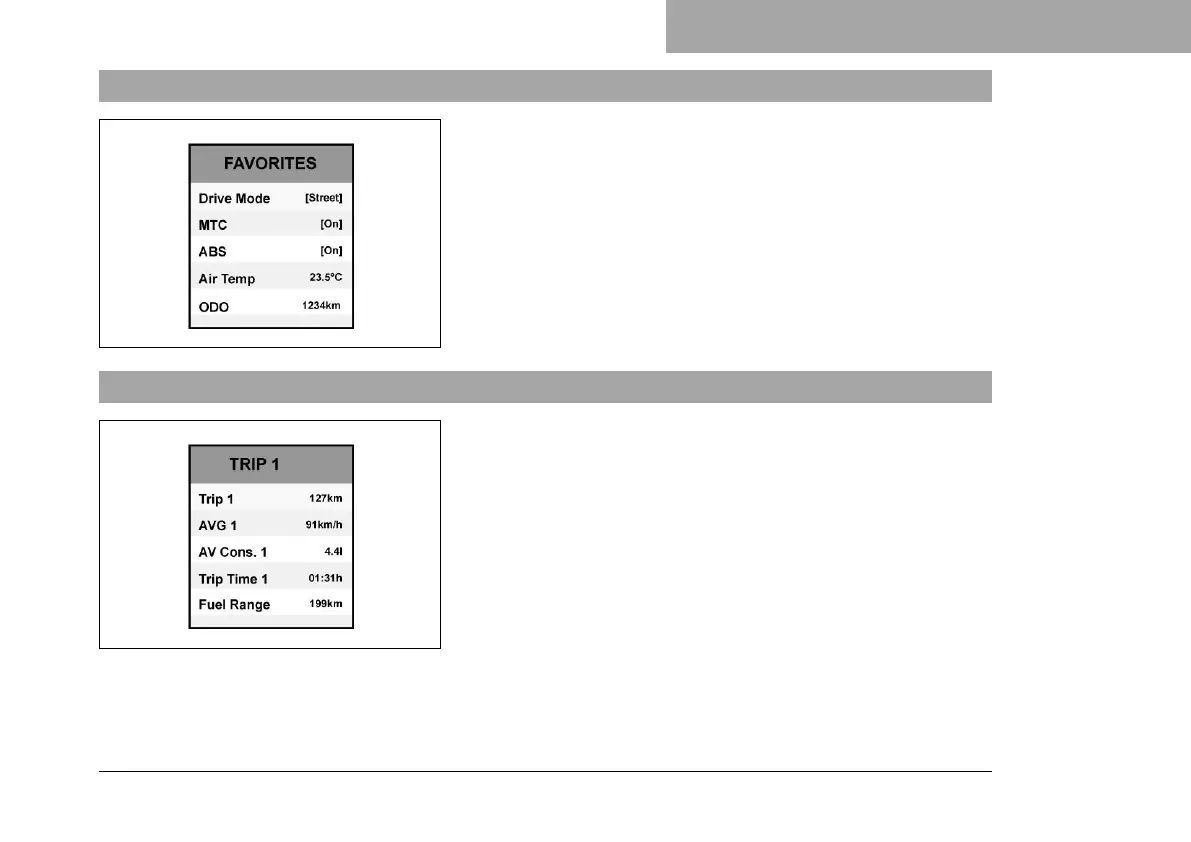

7.9 "Favorites"
K00389-01
– Press the UP or DOWN button until the "Favorites" menu
appears on the display. Pressing the SET button opens the
menu.
– Press the UP or DOWN button to select the menu item and acti-
vate it with the SET button.
You can directly open five menus in the "Favorites" menu.
The "Favorites "menu can be configured in the
"Set Favorites" menu.
7.10 "Trip 1"
K00386-01
– Press the UP or DOWN button until the "Trip 1" menu appears
on the display.
"Trip 1" shows the distance since the last reset, such as between
two refueling stops. "Trip 1" runs continuously and counts the
distance up to 999.
"AVG 1" indicates the average speed based on "Trip 1" and
"Trip Time 1".
"AV Cons. 1" indicates the average fuel consumption based on
"Trip 1" and "Trip Time 1".
"Trip Time 1" indicates the riding time based on "Trip 1" and starts
running as soon as a speed signal comes in.
"Fuel Range" indicates the possible range with the fuel reserve.

KTM 690 Duke 2018 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	690 cc
Torque	74 Nm @ 6, 500 rpm
Compression Ratio	12.7:1
Transmission	6-speed
Fuel System	Electronic fuel injection
Cooling System	Liquid cooled
Front Suspension	WP USD Ø 43 mm
Rear Suspension	WP Monoshock
Seat Height	835 mm
Dry Weight	148.5 kg
Fuel Capacity	14 liters
Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Power	73 hp (54 kW) @ 8, 000 rpm
Front Brake	Brembo four-piston radial caliper, 320 mm disc
Rear Brake	Brembo single-piston floating calliper, brake disc Ø 240 mm
ABS	Bosch 9M+ Two Channel ABS
Frame	Chromium-Molybdenum steel trellis frame, powder-coated
