KTM 690 Duke 2018 User Manual

COMBINATION INSTRUMENT 7
51

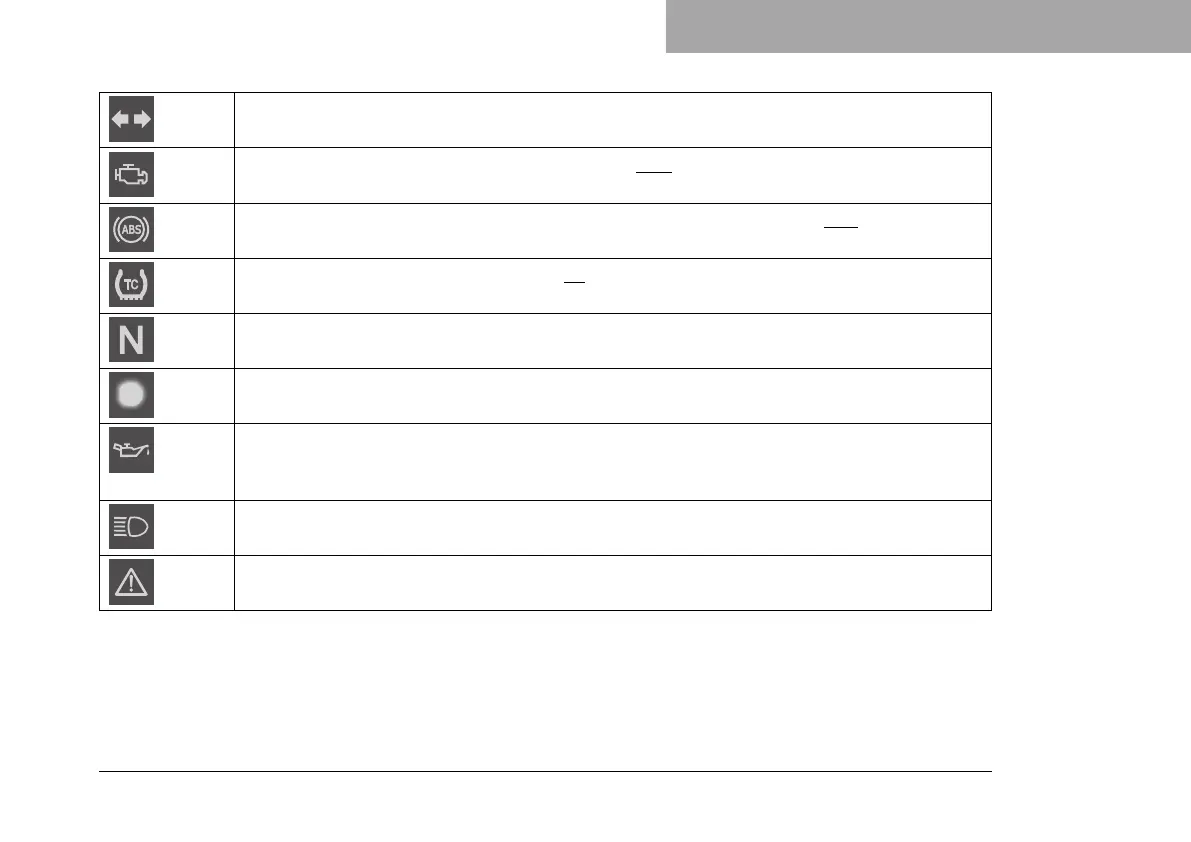

Possible states
The turn signal indicator lamp flashes green simultaneously with the turn signal – The turn
signal is switched on.
Malfunction indicator lamp lights up yellow – The OBD has detected an error in the vehicle
electronics. Come safely to a halt, and contact an authorized KTM workshop.
ABS indicator lamp lights up yellow – Status or error messages relating to ABS. The ABS indi-
cator lamp flashes if the ABS mode "SupMot" is enabled.
TC indicator lamp lights up yellow – The TC is not available. Contact an authorized KTM work-
shop. The TC indicator lamp flashes, if TC actively engages.
The idle indicator lamp lights up green – The transmission is in idle.
The immobilizer indicator lamp lights up/flashes red – Status or error message for immobi-
lizer/alarm system.
The oil pressure warning lamp lights up red – The oil pressure is too low. Stop immediately,
taking care not to endanger yourself or other road users in the process, and switch off the
engine.
The high beam indicator lamp lights up blue – The high beam is switched on.
The general warning lamp lights up yellow – An operating safety (warning note) message was
detected. This is also shown on the display.

KTM 690 Duke 2018 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	690 cc
Torque	74 Nm @ 6, 500 rpm
Compression Ratio	12.7:1
Transmission	6-speed
Fuel System	Electronic fuel injection
Cooling System	Liquid cooled
Front Suspension	WP USD Ø 43 mm
Rear Suspension	WP Monoshock
Seat Height	835 mm
Dry Weight	148.5 kg
Fuel Capacity	14 liters
Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Front Wheel	3.50 x 17"
Rear Wheel	5.00 x 17"
Front Tire	120/70 ZR 17
Rear Tire	160/60 ZR 17
Power	73 hp (54 kW) @ 8, 000 rpm
Front Brake	Brembo four-piston radial caliper, 320 mm disc
Rear Brake	Brembo single-piston floating calliper, brake disc Ø 240 mm
ABS	Bosch 9M+ Two Channel ABS
Frame	Chromium-Molybdenum steel trellis frame, powder-coated
