KTM 690 Enduro R User Manual

12 BRAKE SYSTEM 104
B01958-11

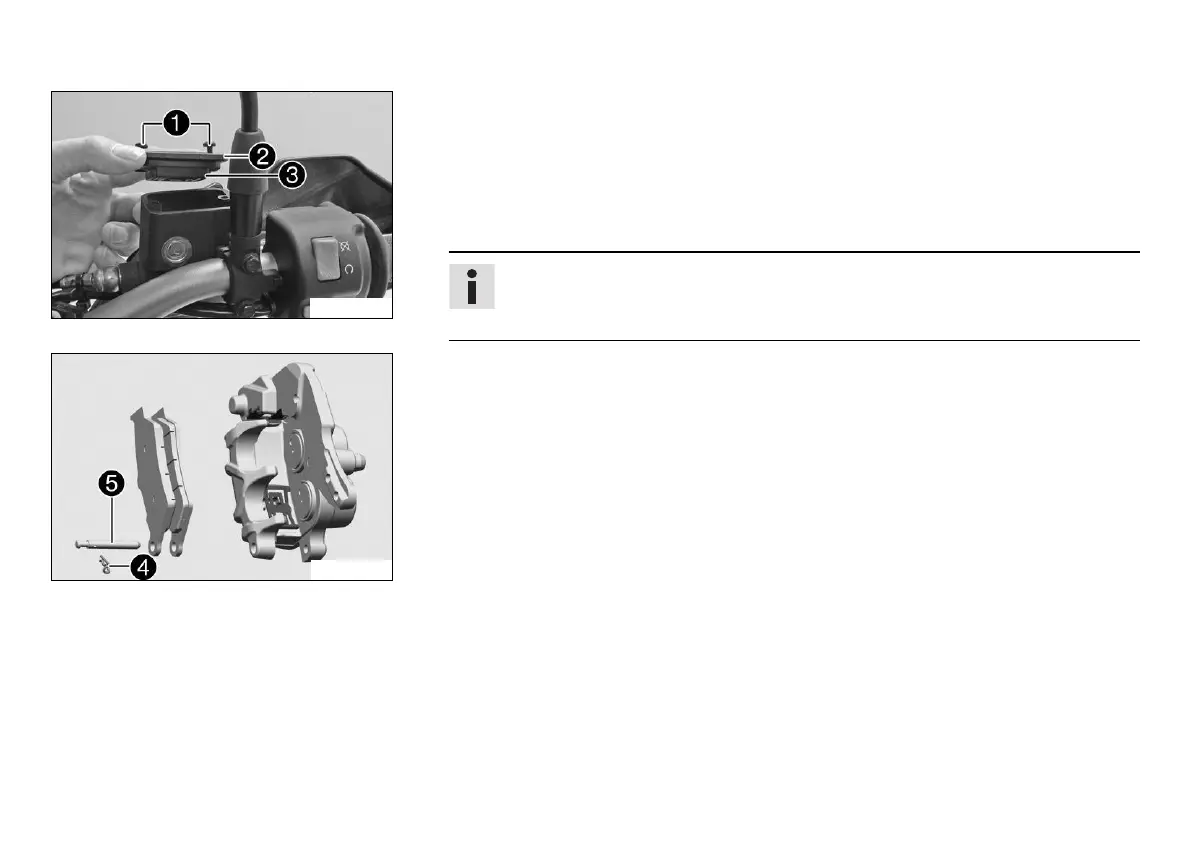

– Move the brake fluid reservoir mounted on the handlebar to a horizontal position.
–
Remove screws

.
–
Remove cover

with membrane

.
– Press the brake caliper by hand onto the brake disc in order to retract the brake pistons.
Ensure that brake fluid does not flow out of the brake fluid reservoir, extracting it by
suction if it does.
Info
Make sure when pushing back the brake pistons that you do not press the brake
caliper against the spokes.
400418-11
–
Remove cotter pin

, remove pin

toward the right by striking it, and remove the
brake linings.
– Clean brake caliper and brake caliper support.

KTM 690 Enduro R Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Torque	73.5 Nm @ 6, 500 rpm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 2 oil pumps
Primary Drive	40:76
Suspension Travel Front	250 mm
Suspension Travel Rear	250 mm
Wheels Front	1.85 x 21"
Wheels Rear	2.50 x 18"
Tires Front	90/90-21
Tires Rear	140/80-18
Chain	X-Ring 5/8 x 1/4"
Seat Height	910 mm
Fuel Tank Capacity	13.5 l
Dry Weight	146 kg
Power	74 hp (55 kW) @ 8, 000 rpm
Fuel System	Keihin EFI (Electronic Fuel Injection)
Clutch	hydraulically actuated
Frame	Chrome-molybdenum steel trellis frame, powder coated
Front Suspension	WP XPLOR USD, Ø 48 mm
Rear Suspension	WP XPLOR
Front Brake	Brembo
Rear Brake	Brembo single piston caliper, 240 mm disc
ABS	Bosch 9.1 MP (disengageable)
Wheelbase	1, 502 mm ± 10 mm
