KTM 690 Enduro R User Manual

12 BRAKE SYSTEM 108
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized KTM workshop will be
glad to help.)
B01960-10

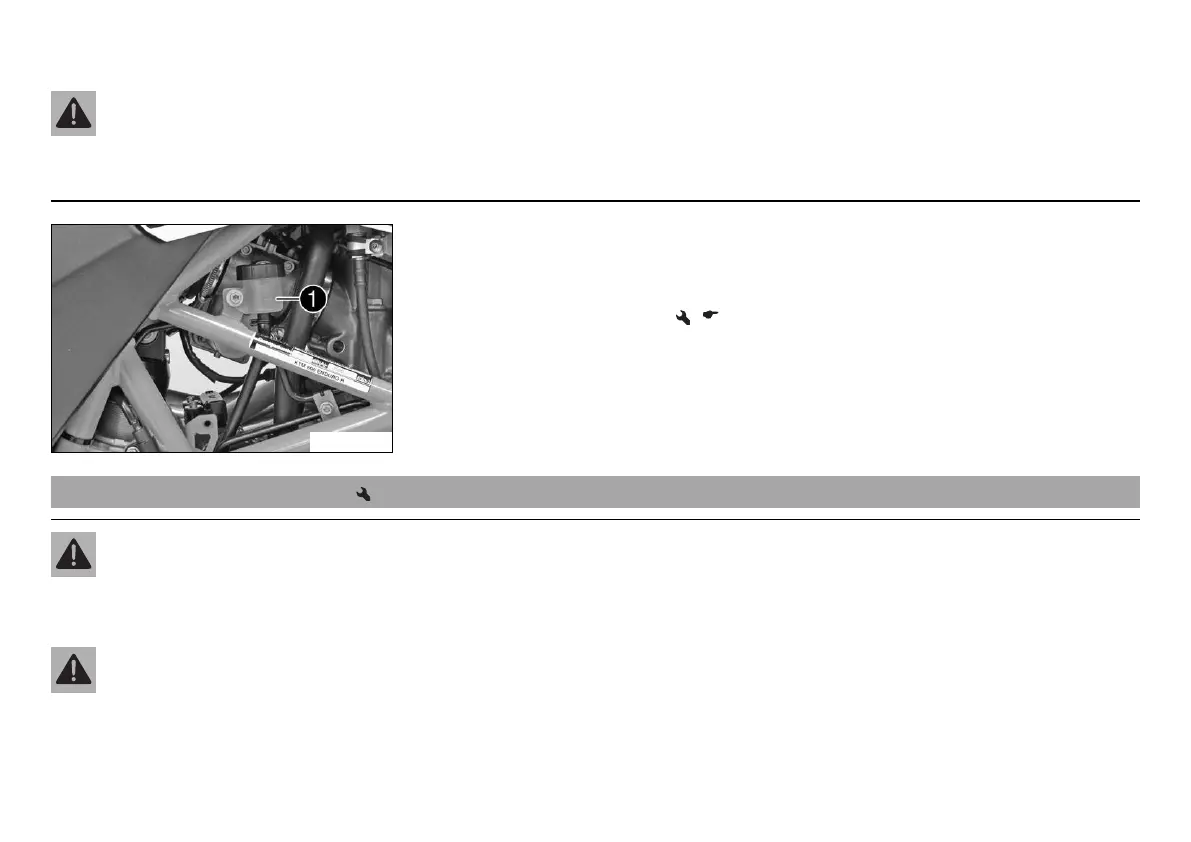

– Stand the vehicle upright.
– Check the brake fluid level in the brake fluid reservoir.
»
If the fluid level reaches the MIN marking

:
– Add rear brake fluid. ( p. 108)
12.11 Adding rear brake fluid
Warning
Danger of accidents Failure of the brake system.
– If the brake fluid level falls below the MIN mark, this indicates a leakage in the brake system or worn-out brake linings. Check
the brake system and do not continue riding. (Your authorized KTM workshop will be glad to help.)
Warning
Skin irritation Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children.
– Wear suitable protective clothing and goggles.
– If brake fluid comes into contact with the eyes, flush the eyes thoroughly with water and consult a physician immediately.

KTM 690 Enduro R Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Torque	73.5 Nm @ 6, 500 rpm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 2 oil pumps
Primary Drive	40:76
Suspension Travel Front	250 mm
Suspension Travel Rear	250 mm
Wheels Front	1.85 x 21"
Wheels Rear	2.50 x 18"
Tires Front	90/90-21
Tires Rear	140/80-18
Chain	X-Ring 5/8 x 1/4"
Seat Height	910 mm
Fuel Tank Capacity	13.5 l
Dry Weight	146 kg
Power	74 hp (55 kW) @ 8, 000 rpm
Fuel System	Keihin EFI (Electronic Fuel Injection)
Clutch	hydraulically actuated
Frame	Chrome-molybdenum steel trellis frame, powder coated
Front Suspension	WP XPLOR USD, Ø 48 mm
Rear Suspension	WP XPLOR
Front Brake	Brembo
Rear Brake	Brembo single piston caliper, 240 mm disc
ABS	Bosch 9.1 MP (disengageable)
Wheelbase	1, 502 mm ± 10 mm
