KTM 690 Enduro R User Manual

14 ELECTRICAL SYSTEM 133
M00652-10
–

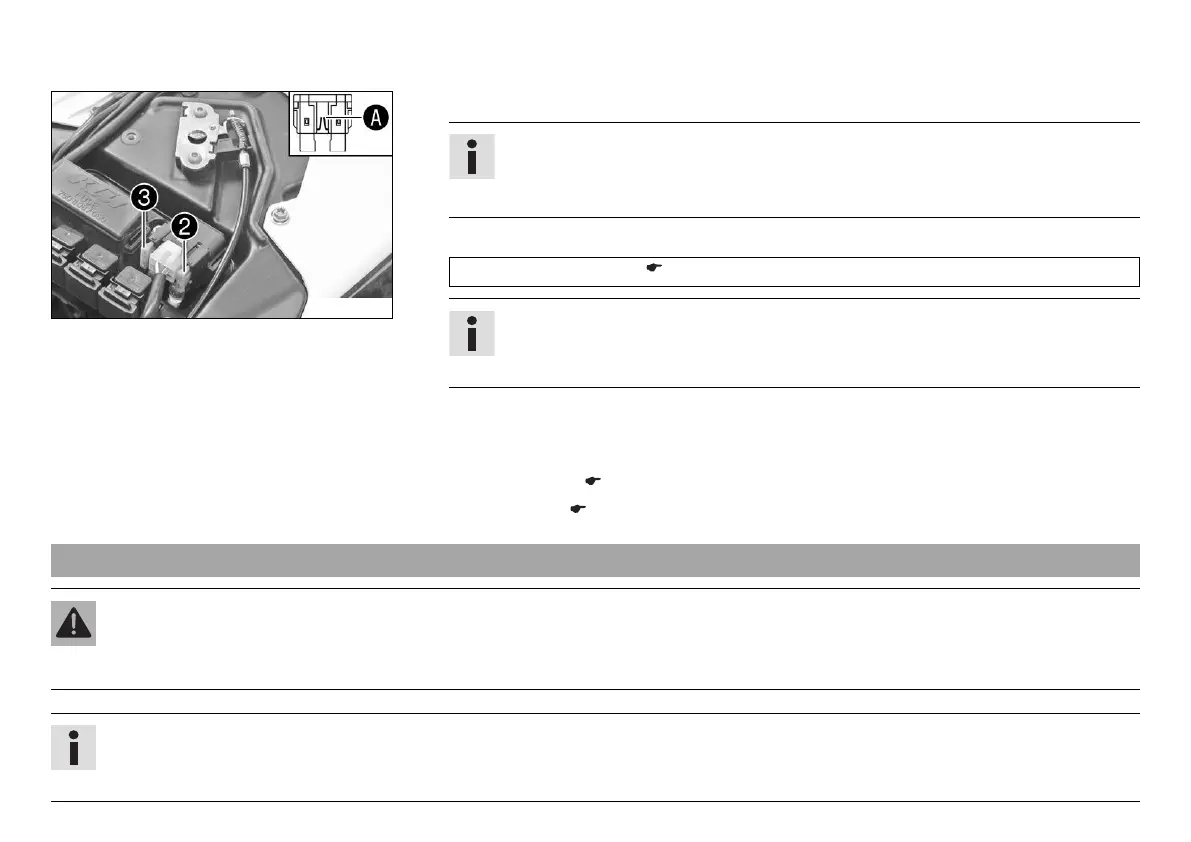

Remove a defective main fuse

with needle nose pliers.
Info
A defective fuse is indicated by a burned-out fuse wire

.
A reserve fuse

is located in the starter relay.
– Install a new main fuse.
Fuse (58011109130) ( p. 187)
Info
Insert a new replacement fuse into the starter relay to have it available when
needed.
– Check the functioning of the electrical equipment.
– Mount the protection covers.
Finishing work
– Mount the seat. ( p. 80)
– Set the clock. ( p. 32)
14.5 Changing the ABS fuses
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are used.
– Use only fuses with the prescribed amperage. Never bypass or repair fuses.
Info
Two fuses for the ABS are located under the seat. These fuses protect the return pump and the hydraulic unit of the ABS. The third
fuse, which protects the ABS control unit, is located in the fuse box.

KTM 690 Enduro R Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Torque	73.5 Nm @ 6, 500 rpm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 2 oil pumps
Primary Drive	40:76
Suspension Travel Front	250 mm
Suspension Travel Rear	250 mm
Wheels Front	1.85 x 21"
Wheels Rear	2.50 x 18"
Tires Front	90/90-21
Tires Rear	140/80-18
Chain	X-Ring 5/8 x 1/4"
Seat Height	910 mm
Fuel Tank Capacity	13.5 l
Dry Weight	146 kg
Power	74 hp (55 kW) @ 8, 000 rpm
Fuel System	Keihin EFI (Electronic Fuel Injection)
Clutch	hydraulically actuated
Frame	Chrome-molybdenum steel trellis frame, powder coated
Front Suspension	WP XPLOR USD, Ø 48 mm
Rear Suspension	WP XPLOR
Front Brake	Brembo
Rear Brake	Brembo single piston caliper, 240 mm disc
ABS	Bosch 9.1 MP (disengageable)
Wheelbase	1, 502 mm ± 10 mm
