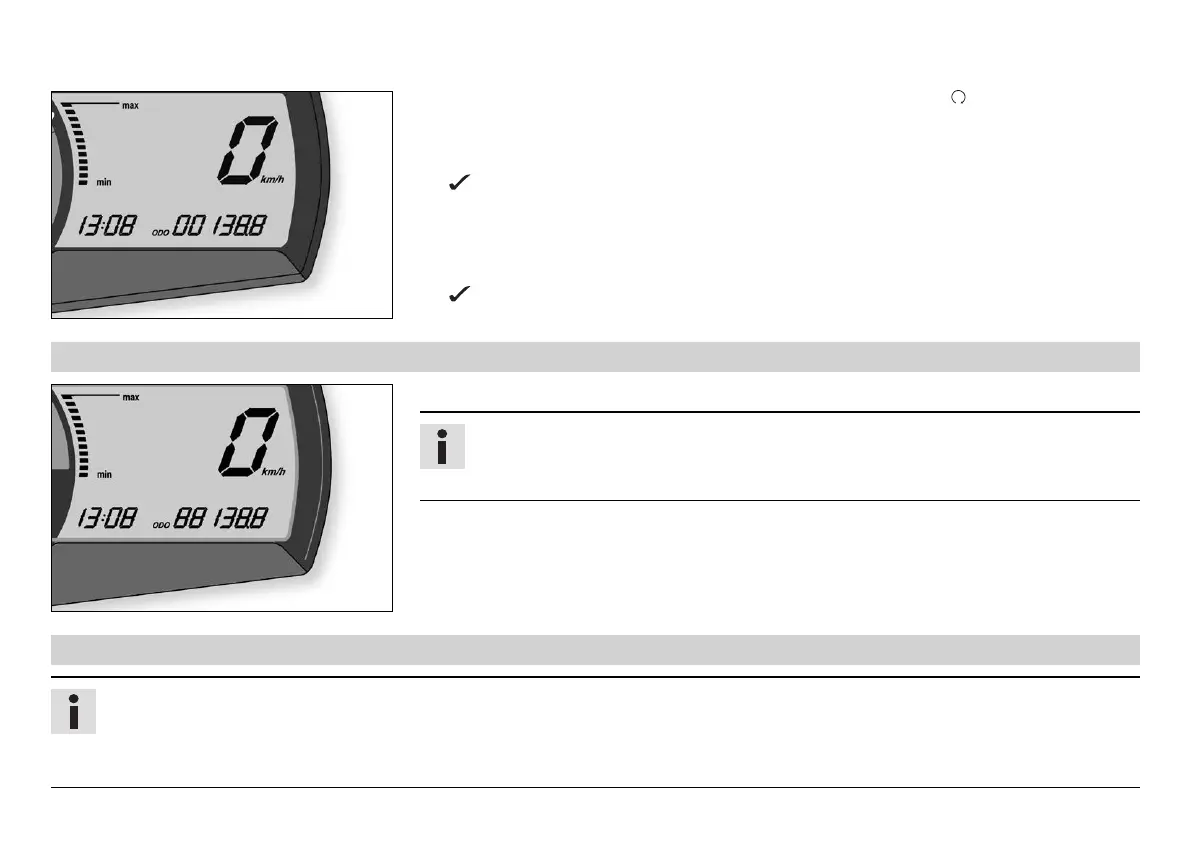

6 CONTROLS 33
401444-01
Switch on the ignition by turning the ignition key to position ON .
Press the MODE button repeatedly until the ODO mode is active.
Keep the MODE button and the SET button pressed simultaneously.
The time display begins to flash.
Press the MODE button to set the hour.
Press the SET button to set the minute.
Keep the MODE button and the SET button pressed simultaneously.
The time is set.
6.10.10 ODO display
400839-01
In the ODO display mode, the total distance traveled is shown in kilometers or miles.
Info
This value is retained, even if the battery is disconnected from the vehicle and/or
the fuse blows.
6.10.11 Setting/resetting display TRIP 1
Info
The TRIP 1 trip counter runs constantly and counts up to 999.9.
The trip counter can be used to measure the distance covered during trips or between two refueling stops. After the value 999.9 is
reached, the trip counter starts at 0.0 again.
