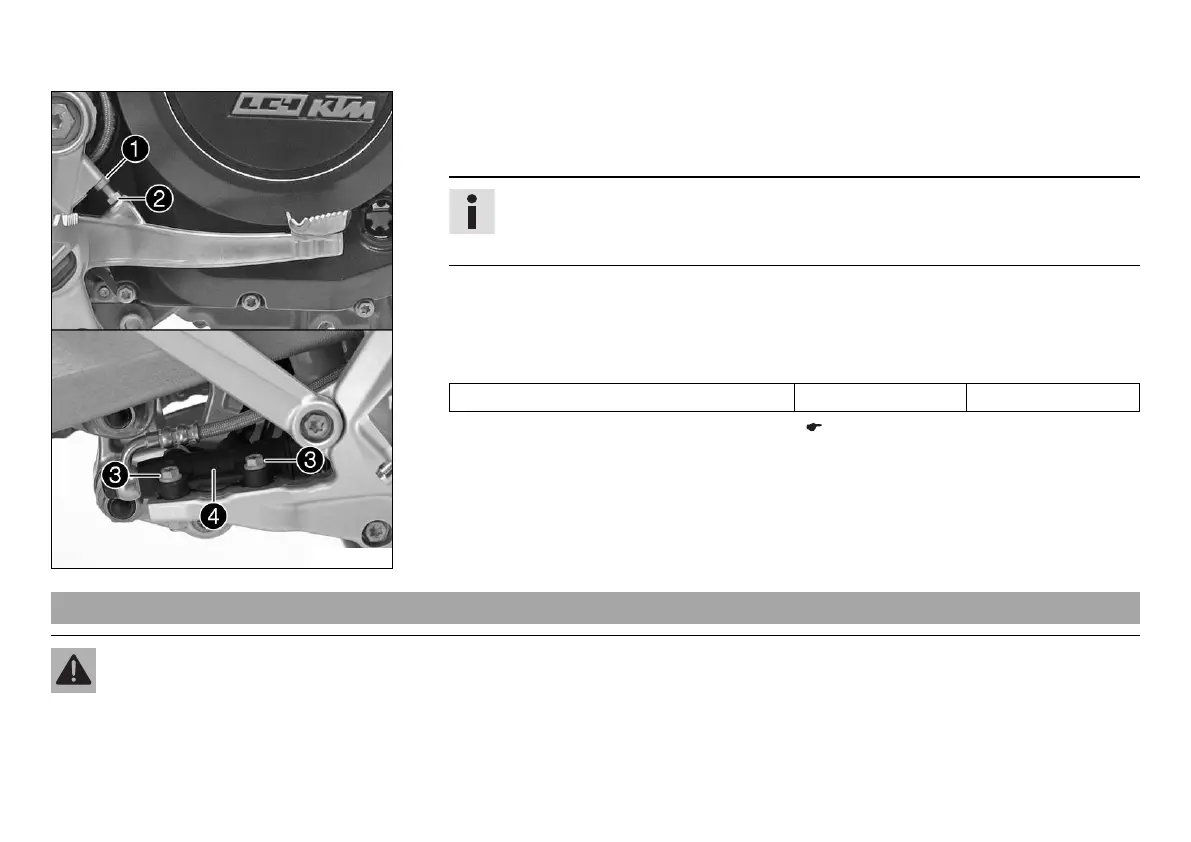

12 BRAKE SYSTEM 107
B01291-10
Loosen fittings
on foot brake cylinder
.
To adjust the basic position of the foot brake lever individually, loosen nut
and turn
screw
accordingly.
Info
The range of adjustment is limited. The screw must be screwed into the footrest
bracket by at least four turns.
Position foot brake cylinder
so that the foot brake lever has the necessary free
travel.
Mount and tighten fittings
.
Guideline
Screw connection, foot brake cylinder M6 10 Nm (7.4 lbf ft)
Check the free travel of the foot brake lever. ( p. 105)
Tighten nut
.
12.10 Checking rear brake fluid level
Warning
Danger of accidentsFailure of the brake system.
If the brake fluid level falls below the MIN mark, this indicates a leakage in the brake system or worn-out brake linings. Check
the brake system and do not continue riding. (Your authorized KTM workshop will be glad to help.)
