KTM 690 Enduro R User Manual

14 ELECTRICAL SYSTEM 134
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the seat. ( p. 80)
– Remove the battery cover.
– Pull the EFI control unit off of the holder and set it to one side.

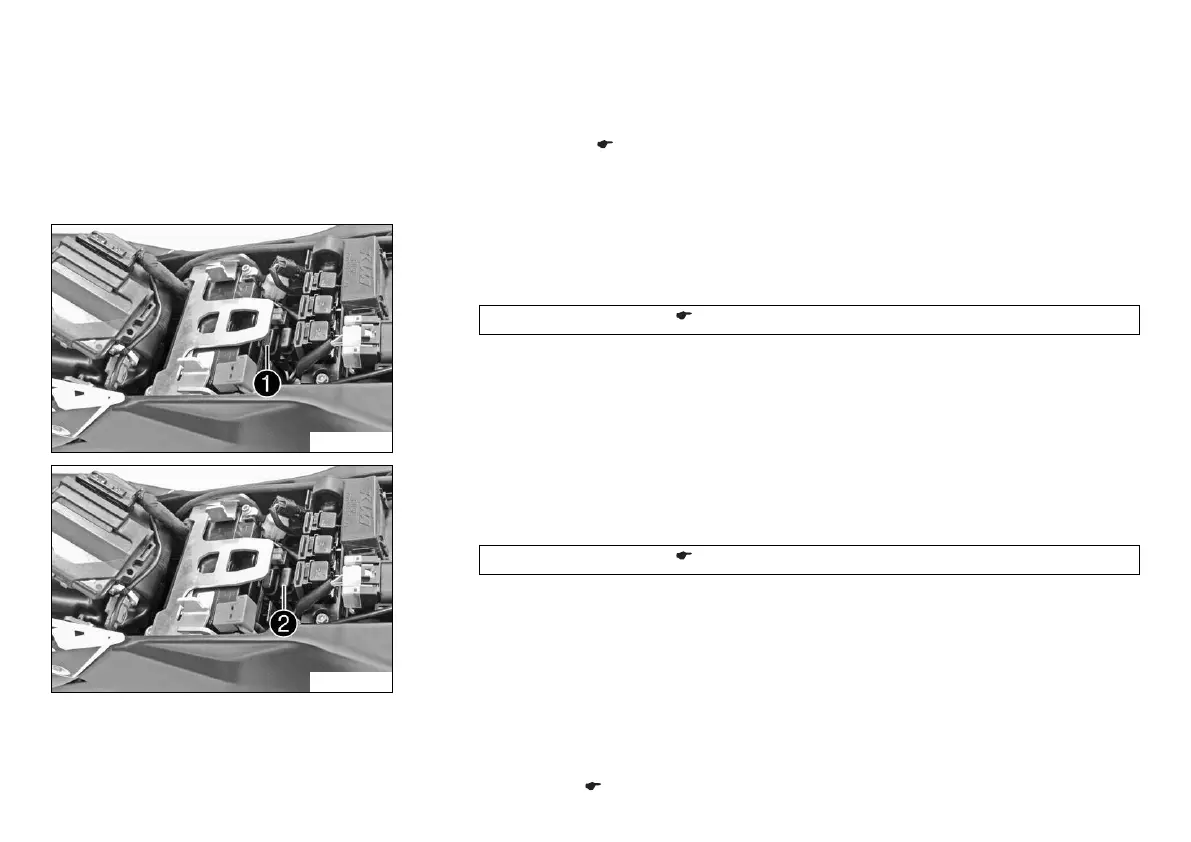

B01979-10
To change the fuse of the ABS hydraulic unit:
–
Take off protection cap

and remove the fuse.
– Insert a new fuse.
Fuse (58011109115) ( p. 187)
– Mount the protection cap.
B01979-11
To change the fuse of the ABS return pump:
–
Take off protection cap

and remove the fuse.
– Insert a new fuse.
Fuse (58011109125) ( p. 187)
– Mount the protection cap.
Finishing work
– Position the EFI control unit.
– Mount the battery cover.
– Mount the seat. ( p. 80)

KTM 690 Enduro R Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Torque	73.5 Nm @ 6, 500 rpm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 2 oil pumps
Primary Drive	40:76
Suspension Travel Front	250 mm
Suspension Travel Rear	250 mm
Wheels Front	1.85 x 21"
Wheels Rear	2.50 x 18"
Tires Front	90/90-21
Tires Rear	140/80-18
Chain	X-Ring 5/8 x 1/4"
Seat Height	910 mm
Fuel Tank Capacity	13.5 l
Dry Weight	146 kg
Power	74 hp (55 kW) @ 8, 000 rpm
Fuel System	Keihin EFI (Electronic Fuel Injection)
Clutch	hydraulically actuated
Frame	Chrome-molybdenum steel trellis frame, powder coated
Front Suspension	WP XPLOR USD, Ø 48 mm
Rear Suspension	WP XPLOR
Front Brake	Brembo
Rear Brake	Brembo single piston caliper, 240 mm disc
ABS	Bosch 9.1 MP (disengageable)
Wheelbase	1, 502 mm ± 10 mm
