KTM 690 Enduro R User Manual

14 ELECTRICAL SYSTEM 131
100151-10
Main work

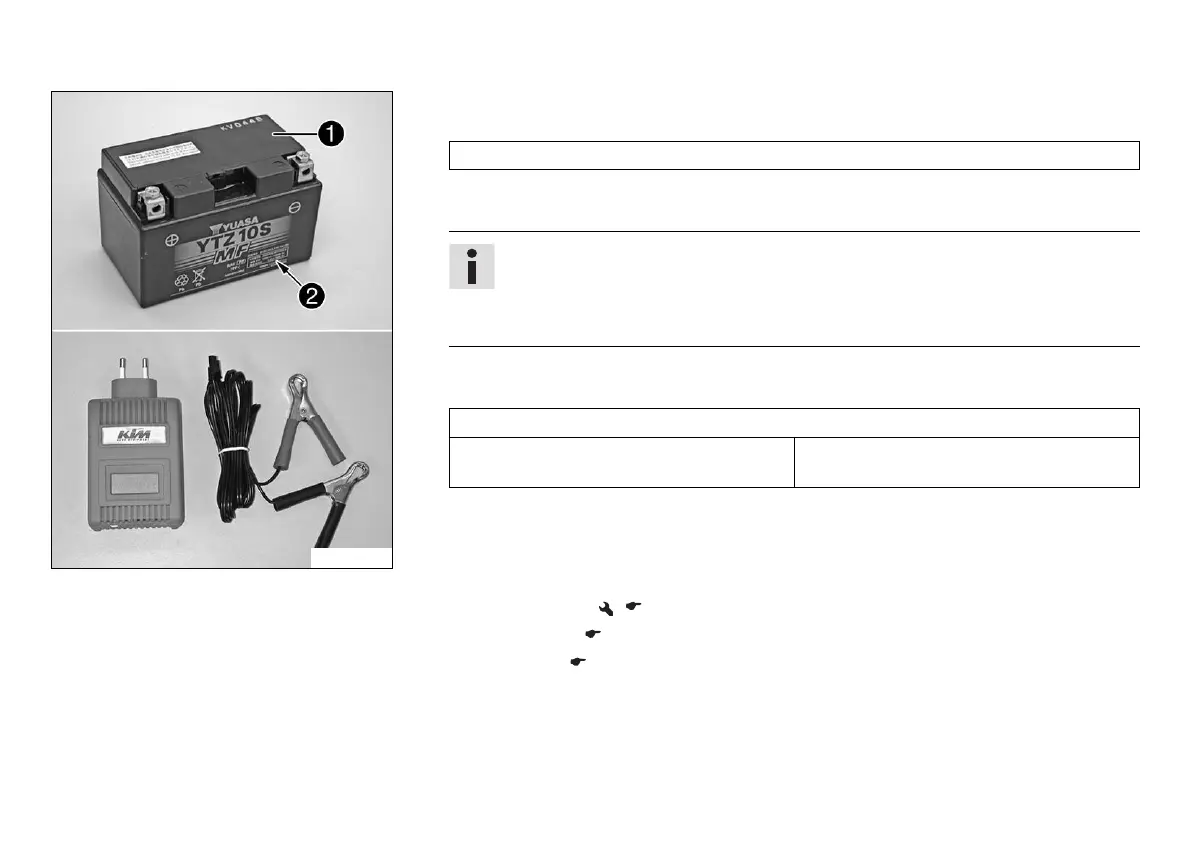

– Connect the battery charger to the battery. Switch on the battery charger.
Battery charger (58429074000)
You can also use the battery charger to test rest potential and start potential of the bat-
tery, and to test the alternator. With this device, you cannot overcharge the battery.
Info
Never remove lid

.
Charge the battery with a maximum of 10% of the capacity specified on the bat-
tery housing

.
– Switch off the battery charger after charging and disconnect from the battery.
Guideline
The charge current, charge voltage and charge time must not be exceeded.
Charge the battery regularly when the
motorcycle is not in use
3 months
Finishing work
– Install the battery. ( p. 127)
– Mount the seat. ( p. 80)
– Set the clock. ( p. 32)

KTM 690 Enduro R Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Torque	73.5 Nm @ 6, 500 rpm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 2 oil pumps
Primary Drive	40:76
Suspension Travel Front	250 mm
Suspension Travel Rear	250 mm
Wheels Front	1.85 x 21"
Wheels Rear	2.50 x 18"
Tires Front	90/90-21
Tires Rear	140/80-18
Chain	X-Ring 5/8 x 1/4"
Seat Height	910 mm
Fuel Tank Capacity	13.5 l
Dry Weight	146 kg
Power	74 hp (55 kW) @ 8, 000 rpm
Fuel System	Keihin EFI (Electronic Fuel Injection)
Clutch	hydraulically actuated
Frame	Chrome-molybdenum steel trellis frame, powder coated
Front Suspension	WP XPLOR USD, Ø 48 mm
Rear Suspension	WP XPLOR
Front Brake	Brembo
Rear Brake	Brembo single piston caliper, 240 mm disc
ABS	Bosch 9.1 MP (disengageable)
Wheelbase	1, 502 mm ± 10 mm
